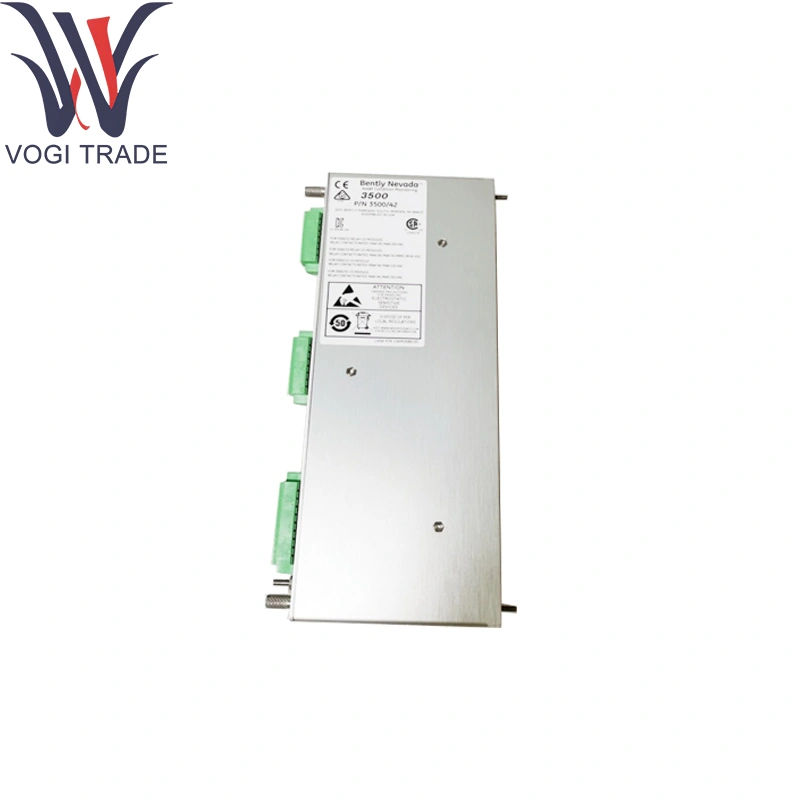

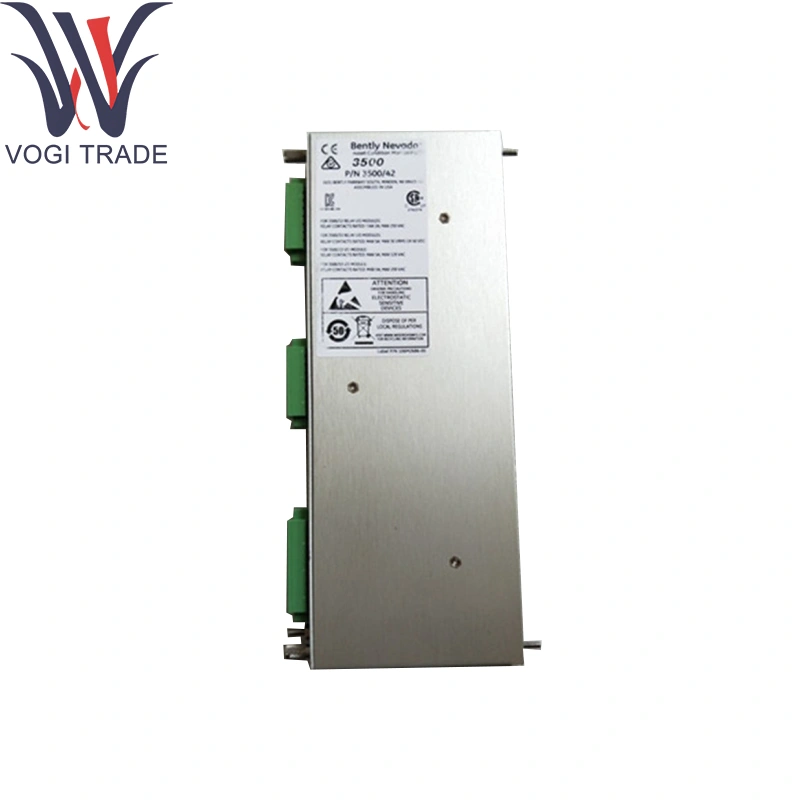

Brand: Bently Nevada Description: 136294-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 13 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 136294-01 Installed in a 3500 Series rack to condition and digitize up to six 4–20 mA process loops (or –10 V to +10 V signals).
|
Manufacture |
Bently Nevada |
|
Model Number |
3500/62-03-00 |
|
Ordering Number |
136294-01 |
|
Catalog |
3500/62 |
|
Description |
Isolated I/O Module With Internal Terminations |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
133 mm × 24.4 mm × 163.1 mm |
|
Weight |
2 kg |
Ordering Information
Process Variable Monitor
3500/62-AA-BB
A: I/O Module Type
01 -10 to +10 Vdc I/O Module with Internal Terminations
02 -10 to +10 Vdc I/O Module with External Terminations
03 Isolated +4 to +20 mA I/O Module with Internal Terminations
04 Isolated +4 to +20 mA I/O Module with External Terminations
05 Non-Isolated +4 to +20 mA I/O Module with Internal Barriers and Internal Terminations
B: Agency Approval Option
00 None
01 CSA/NRTL/C
02 ATEX/CSA (Class 1, Zone 2)
Technical Parameters
Channels: 6 isolated analog inputs in Bently Nevada 136294-01
Input Range: 4–20 mA (internally terminated at 250 Ω) or –10 V to +10 V
Accuracy: ±0.25 % of full scale
Repeatability: ±0.1 % of full scale
Isolation Voltage: 500 V channel-to-chassis
Noise Immunity: 500 mV peak differential
Transient Immunity: 10 kV burst per IEC standards
Conversion Rate: 10 samples/sec per channel
Power Consumption: 7 W typical
Operating Temp: 0 °C to +70 °C
Storage Temp: –40 °C to +85 °C
Humidity: Up to 95 % RH, non-condensing
Product function
Loop Conditioning: Buffers and linearizes 4–20 mA or ±10 V loops via Bently Nevada 136294-01, applying precise 250 Ω terminations.
Digitization: Converts analog inputs to digital values for transmission over the 3500 backplane bus.
Alarm Logic: Compares each channel against programmable high/low setpoints and flags alarm conditions.
Diagnostics: Detects open-circuit, short-circuit, overrange, and reports faults to the system interface.
Isolation: Provides galvanic isolation to prevent ground loops and protect downstream electronics.
Application Areas
Process Monitoring: Pressure, flow, temperature, and level loops using Bently Nevada 136294-01 in turbines, compressors, pumps, and engines.
Machine Protection: Feeding safety-critical alarms (overpressure, overtemperature) into trip logic.
DCS/SCADA Integration: Converting field loops into digital data with Bently Nevada 136294-01 for plant control systems.
Hazardous-Area Panels: Zone 2/Div 2 installations where internal module isolation replaces external barrier hardware.
Retrofit Projects: Upgrading analog racks using Bently Nevada 136294-01 while retaining existing sensor loops.
