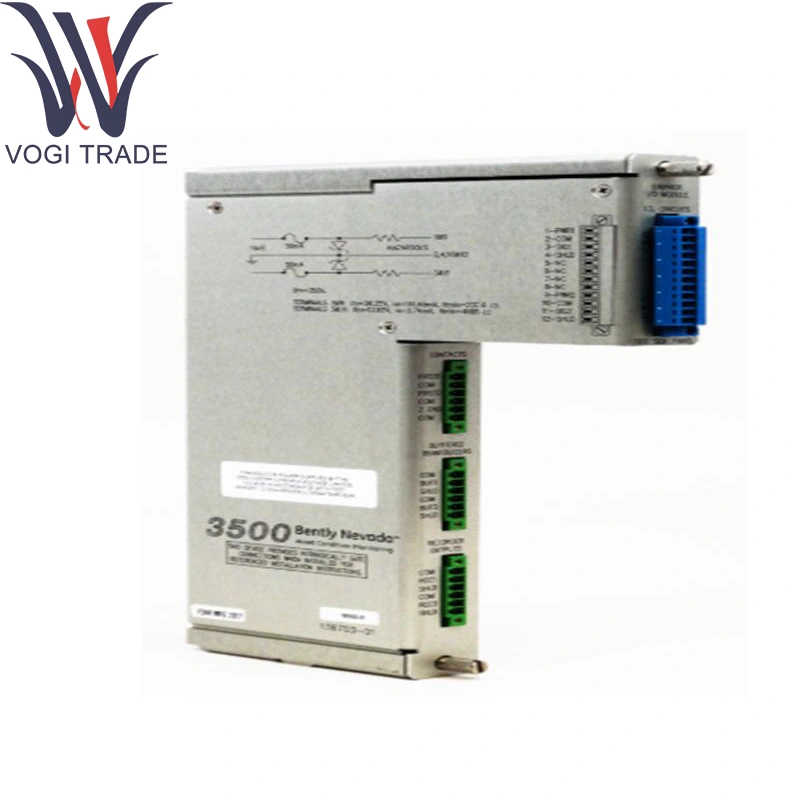

Brand: Bently Nevada Description: 136711-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 14 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 136711-01 Provides on-board excitation, cold-junction compensation, and precision linearization for up to eight temperature loops (RTDs or thermocouples).
|
Manufacture |
Bently Nevada |
|
Model Number |
136711-01 |
|
Ordering Number |
136711-01 |
|
Catalog |
3500/60 |
|
Description |
RTD/TC I/O Module |
|
Country Of Origin |
USA |
|
HS CODE |
7326909000 |
|
Dimension |
33*25*4 (CM) |
|
Weight |
0.7 kg |
Ordering Information
3500/60 -Specific
163179-01 3500/60 Temperature Monitor (without recorders)
133827-01 3500/60 RTD/TC Non-Isolated I/O Module, External Terminations.
133819-01 3500/60 RTD/TC non-Isolated I/O Module, Internal Terminations
133835-01 3500/60 TC Isolated I/O Module, Internal Terminations.
133843-01 3500/60 TC Isolated I/O Module, External Terminations.
136711-01 3500/60 RTD/TC I/O Module with Internal Barriers and Internal Terminations. (Not-Isolated)
Technical Parameters
Channels: 8 analog inputs, individually configurable as for Bently Nevada 136711-01:
4-wire RTD: PT100 or PT1000
Isolated-Tip Thermocouple: Type E, J, K, T
RTD Excitation: 1 mA constant-current per channel in Bently Nevada 136711-01
Thermocouple Compensation: On-board cold-junction reference, ±0.5 °C accuracy
Input Ranges & Accuracy:
RTD: –200 °C to +850 °C, ±0.1 °C
TC (E/J/K/T): as per ITS-90, ±0.2 % of span
Conversion: 16-bit ΔΣ ADC, simultaneous scanning
Sampling Rate: Up to 2 samples/sec per channel
Internal Terminations: Precision 100 Ω (RTD) and 100 mV reference (TC) resistors
Isolation: 1 kV channel-to-chassis
Diagnostics: Open-circuit, short-circuit, out-of-range detection with fault flags
Power Consumption: ≤ 8 W from 24 V DC backplane
Operating Environment:
Temp: 0 °C to +70 °C
Storage: –40 °C to +85 °C
Humidity: ≤ 95 % RH, non-condensing
Product function
Alarm Signaling: Receives discrete commands and actuates relay contacts via Bently Nevada 136711-01.
High-Density Output: Consolidates eight alarm/trip outputs in one module.
Self-Diagnostics: Monitors coil-drive health and reports contact faults.
Flexible Wiring: Screw-terminal block for field connections.
Application Areas
Turbine & Compressor Protection: Driving overspeed-trip solenoids with Bently Nevada 136711-01.
Generator & Motor Monitoring: Activating bearing-fault alarms.
Process-Plant Annunciators: Feeding horn/lamp circuits in control rooms.
Safety Interlocks: Integrating machinery alarms into ESD systems.
OEM Equipment: Embedded rack-mount outputs in skid systems using Bently Nevada 136711-01.
