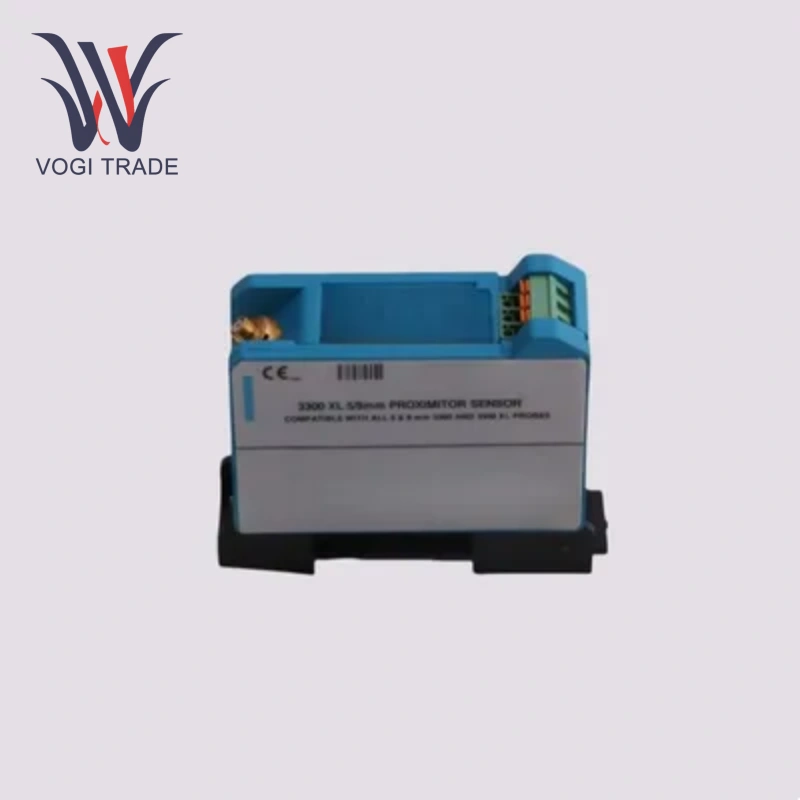

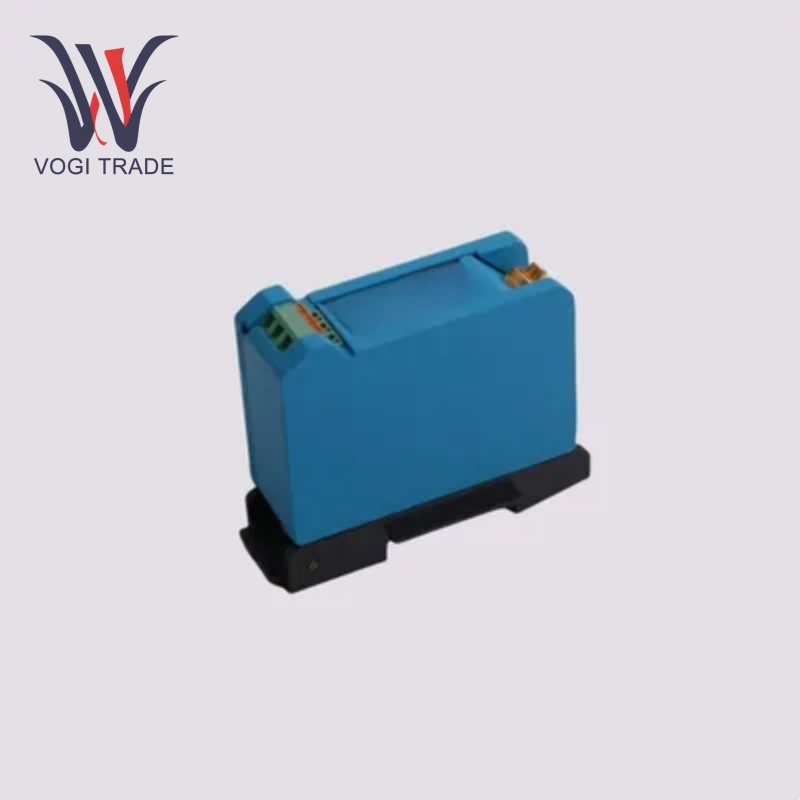

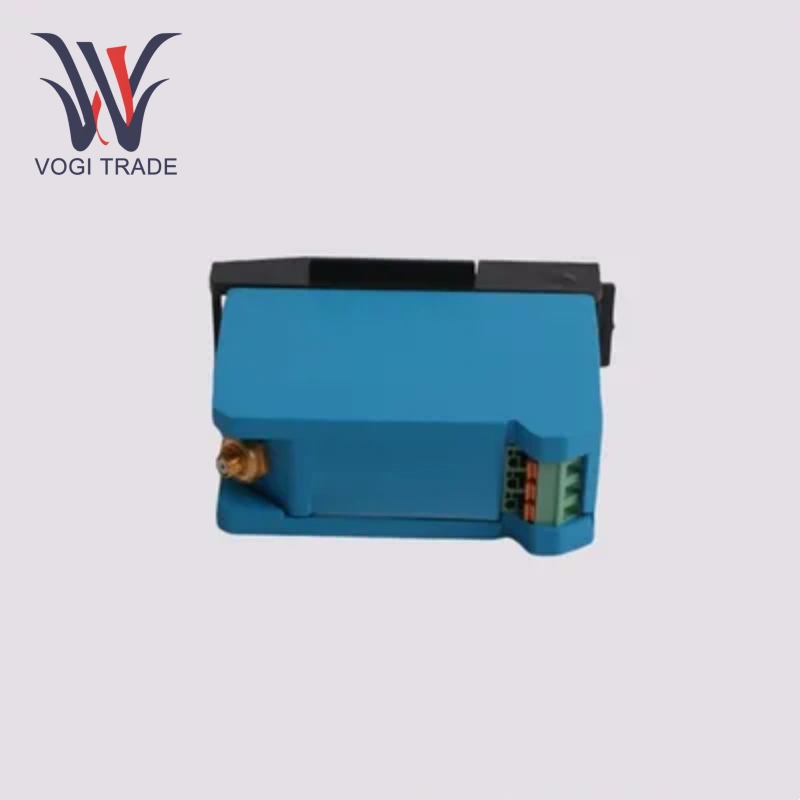

Brand: Bently Nevada Description: Replacement DIN-mount Mounting Pad Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 138493-01 is a replacement mounting gasket designed for DIN rail mounting. It is designed to be installed with specific sensors and other devices to ensure that the device can be firmly fixed on the DIN rail.
|
Manufacture |
Bently Nevada |
|
Model Number |
138493-01 |
|
Ordering Number |
138493-01 |
|
Catalog |
- |
|
Country Of Origin |
America |
|
HS CODE |
90318090 |
|
Dimension |
25*25*10CM |
|
Packing Dimension |
30*28*12CM |
|
Weight |
1.5 kg |
Product Overview
Materials and Durability: Made of industrial-grade materials
Easy Installation: Requires no special tools, snap-on installation, complies with DIN EN 60715 standards.
Compatibility: Perfectly matches the slim design of the 3300 XL Proximitor Sensor.
Product Features
Easy Installation: Bently Nevada 138493-01 is designed specifically for DIN rail mounting, it allows for quick and accurate device installation, reducing installation time and labor costs.
Stable and Reliable: Bently Nevada 138493-01 with precision-engineered and engineered to fit snugly between the DIN rail and the device, providing stable mounting support and preventing vibration, movement, and other issues during operation.
Applications
Industrial Equipment Monitoring Systems: Bently Nevada 138493-01 is commonly used to install various industrial equipment monitoring sensors, such as vibration sensors and displacement sensors, ensuring stable installation. These systems are widely used for equipment monitoring in industries such as power, petrochemicals, and industrial manufacturing.
Automated Production Line Equipment: Bently Nevada 138493-01 used in automated production lines, these systems can be used to secure control modules, testing instruments, and other equipment that require precise mounting on DIN rails, ensuring stability during high-speed production line operation.
Installation Notes
Installation Steps:
Remove the old gasket → Align the new gasket with the slots → Press onto the DIN rail to secure.
Torque Requirements:
The maximum torque for all threads is 45 N·m (400 in·lbf). However, the gasket itself is a threadless snap-on design, so no torque is required.
Space Requirements:

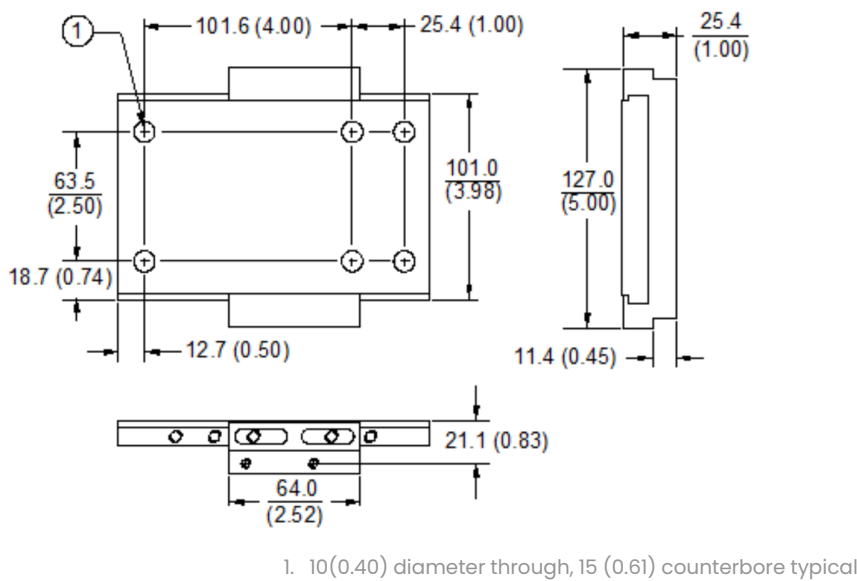

A minimum width of 89.4 mm (3.52 in) plus an additional 3.05 mm (0.12 in) of clearance is required for removal.
Applicable Device Models
For the 3300 XL 50 mm Proximitor Sensor in the DIN rail mount version only, the corresponding model suffixes are:
330878-51 (5-meter system length, DIN mount)
330878-91 (9-meter system length, DIN mount)
Note: For panel mount versions (model suffixes -50/-90), spare part 138492-01 is required.
