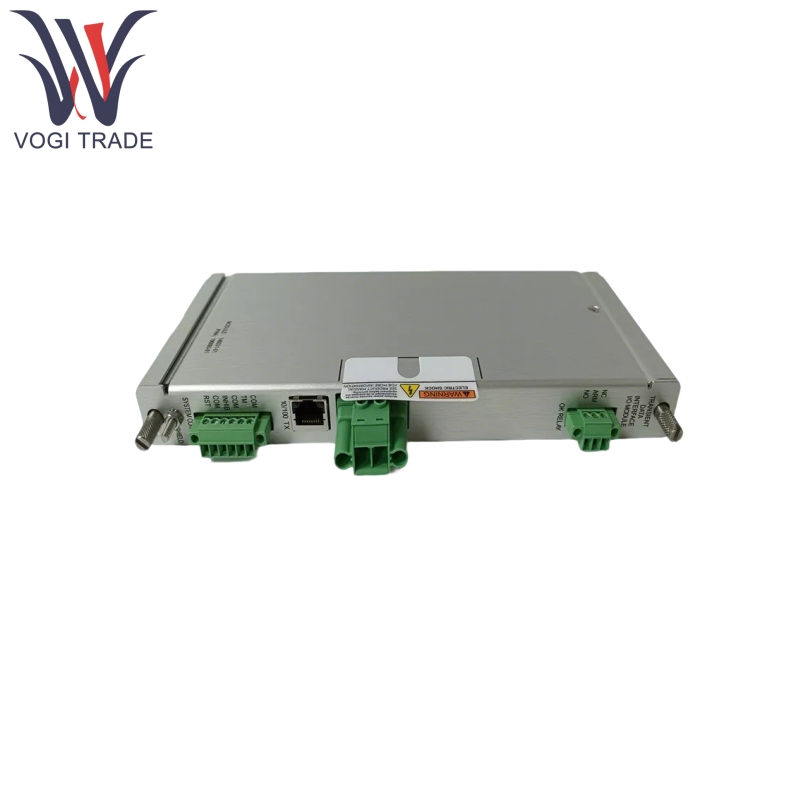

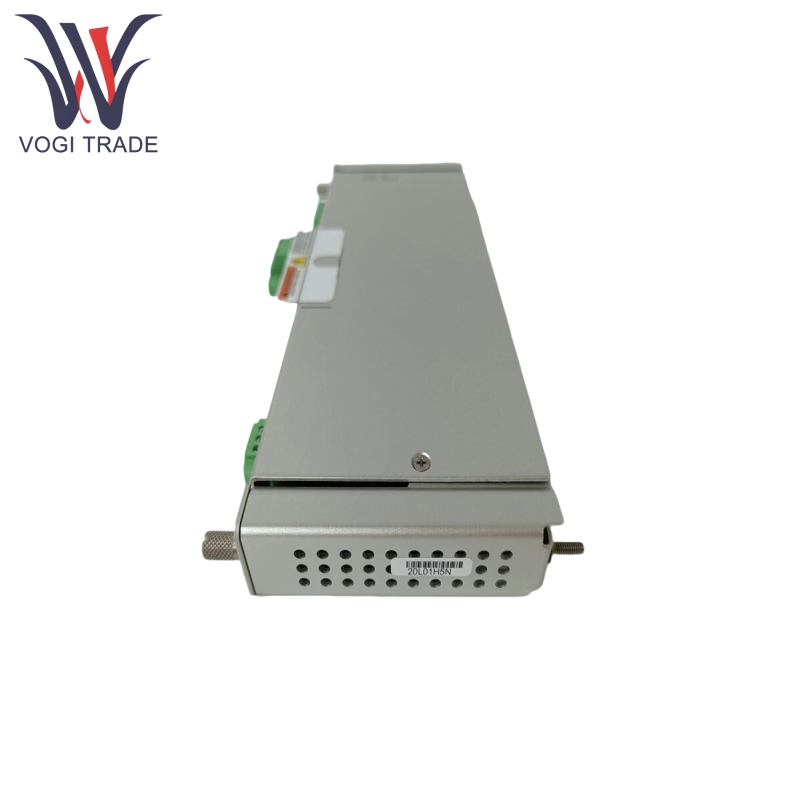

Brand: Bently Nevada Description: Transient Data Interface I/O Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 146031-01 is mainly responsible for data communication and system integration functions, connecting the 3500 monitoring system and Bently Nevada System 1 machinery management software to realize real-time data transmission and remote diagnosis. Its core role is to transmit vibration, temperature, pressure and other data collected by the sensors to the host computer via Ethernet, and at the same time support the input and output of system control signals to ensure the efficiency of equipment condition monitoring and fault warning.
|
Manufacture |
Bently Nevada |
|
Model Number |
146031-01 |
|
Ordering Number |
146031-01 |
|
Catalog |
- |
|
Country Of Origin |
United States (US) |
|
HS CODE |
8538900000 |
|
Dimension |
24*24*10cm |
|
Weight |
0.6kg |
Product Features
Bently Nevada 146031-01 supports 10Base-T/100Base-TX Ethernet interfaces and auto-negotiates rates to ensure stable real-time data transmission.
Bently Nevada 146031-01 can connect multiple sensors and actuators simultaneously, is compatible with M-Series monitoring modules, and supports static and dynamic data capture.
Bently Nevada 146031-01 provides Alarm Inhibit, Rack Reset, Trip Multiply, and more to support remote control of the monitoring system.
Bently Nevada 146031-01 utilizes gold-plated relay contacts and an interference-resistant design for stable operation in harsh environments from -30°C to +65°C. It records device parameters in real time.
Bently Nevada 146031-01 records equipment parameters in real time, notifies the user through audible and visual alarms or signal outputs when abnormalities are detected, and supports historical data storage and analysis.
Product Using Principle
Bently Nevada 146031-01 works in conjunction with the 3500 Series Monitoring Module to receive sensor signals and convert them to digital data.
It integrates the 3500/20 Rack Interface Module with a communications processor that transmits data via Ethernet to System 1 software for analysis.
It receives external control commands and triggers the monitoring system's response via hardwired contacts to ensure equipment safety.
Product Parameter
The following detail is for Bently Nevada 146031-01.
Power Supply: 24 VDC (typical value; some data is not clearly specified, so it is recommended to refer to the manual)
Power Consumption: 10.5 W
Operating Temperature: -30°C to +65°C (during operation), -40°C to +85°C (during storage)
Ethernet: RJ-45 (10/100Base-TX) or MT-RJ (fiber optic, optional)
USB: USB-B interface (for local configuration)
Data Transfer Rate: The Ethernet interface supports 10/100 Mbps, and the actual data processing capability meets industrial real-time requirements
Protocol Support: Compatible with Bently Nevada proprietary protocols and standard TCP/IP, enabling integration with third-party systems
