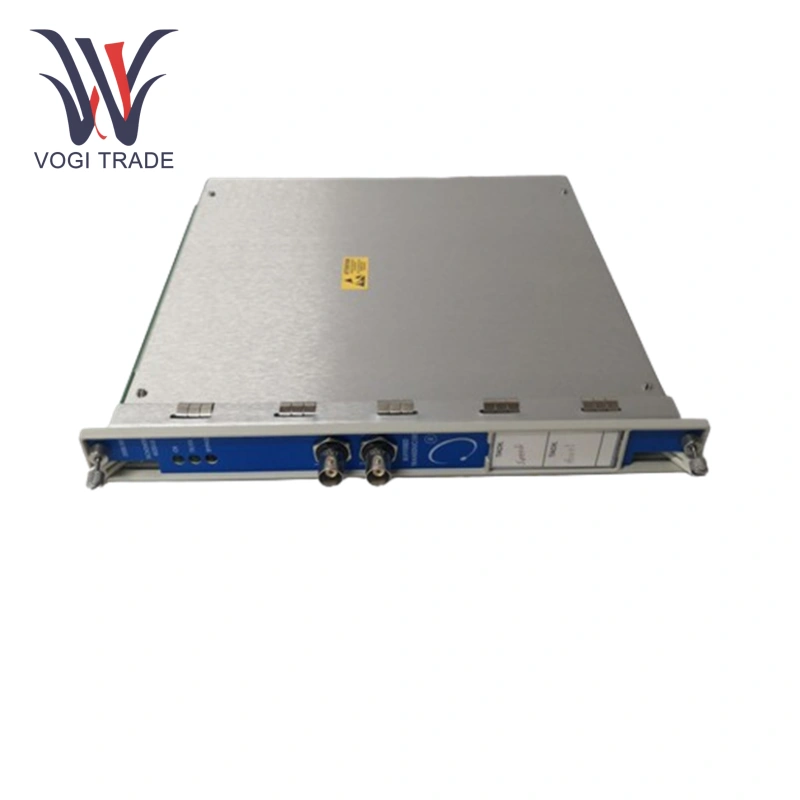

Brand: Bently Nevada Description: Process Variable Monitor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 163179-03 Process Variable Monitor, part of the Bently 3500 Series, is a powerful monitoring device designed for continuous or periodic measurement and monitoring of multiple variables in industrial processes. It accepts signals from various sensors, including vibration, pressure, temperature, and flow, and integrates this process data into the 3500 Machinery Protection System.
|
Manufacture |
Bently Nevada |
|
Model Number |
163179-03 |
|
Ordering Number |
163179-03 |
|
Catalog |
3500/62 |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
25*3*25CM |
|
Packing Dimension |
30*6*30CM |
|
Weight |
1.5 kg |
Input Signal Type: Supports ±10V DC and isolated 4-20mA current signals. Also compatible with 4-20mA signals when using an intrinsically safe Zener barrier.
Output Signal Type: Analog, digital, and relay outputs are available.
Number of Channels: 6 input channels.
Measurement Accuracy: ±0.25% of full scale.
Operating Temperature Range: -40°C to +70°C.
Environmental Protection Rating: IP66-rated.
Power Consumption: Approximately 1.2W.
Product Features
Bently Nevada 163179-03 simultaneously monitor multiple process variables for comprehensive visibility into equipment operating conditions and production processes.
Bently Nevada 163179-03 high-precision measurement combined with real-time data transmission.
Bently Nevada 163179-03 provides timely alarms for variable deviations based on preset values, alerting personnel to potential issues.
Bently Nevada 163179-03 multiple input and output signal types are compatible with various sensors and control systems.
Applications
Bently Nevada 163179-03 used for temperature and vibration monitoring of equipment such as steam turbines and generators.
Bently Nevada 163179-03 monitors variables such as pipeline pressure and flow, and reactor temperature.
Bently Nevada 163179-03 monitors operating parameters of various production equipment, enabling equipment status monitoring and preventive maintenance.
Important Notes
Safety Warning: When using the Internal Barrier I/O, the fuse must be a 250 mA, 250 V fast-blow type (Part Number: 01700059).
Installation Requirements: When used in hazardous areas, the device must be installed strictly in accordance with the specified drawings (e.g., 138547 or 149243/149244). Failure to do so may affect the validity of the certification.
