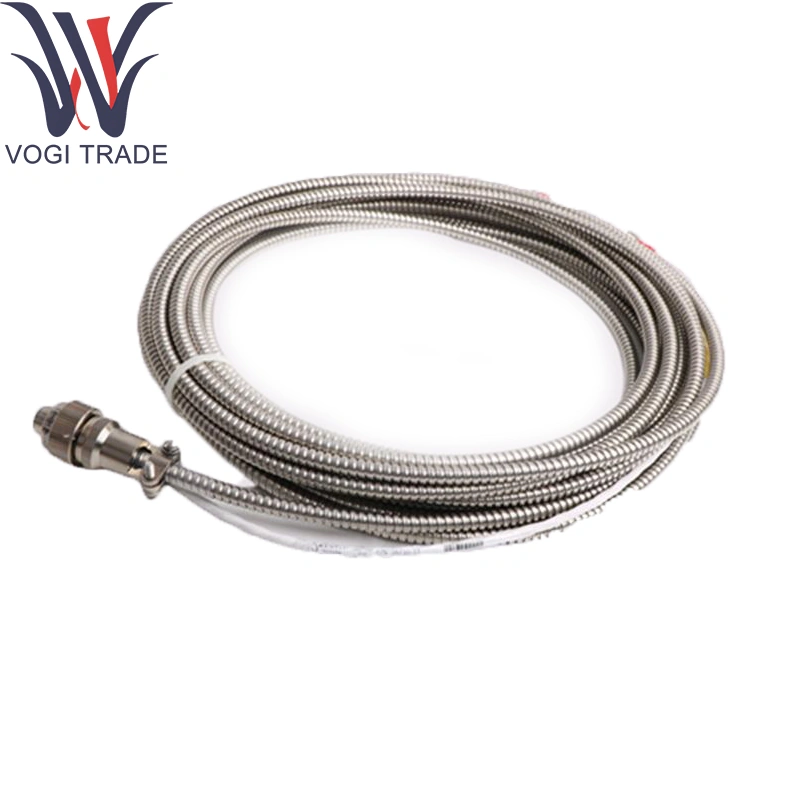

Brand: Bently Nevada Description: 16710-33 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 16710-33 Used inside control-panel and skid-mounted enclosures to link internal 3500 Series modules (system interface, relay, analog-output cards) to bulkhead or terminal-block connectors.
|
Manufacture |
Bently Nevada |
|
Model Number |
16710-33 |
|
Ordering Number |
16710-33 |
|
Catalog |
16710-33 |
|
Description |
Interconnect Cable with Armor |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*2.4*16 (CM) |
|
Weight |
0.15 kg |
Ordering Information
Part Number: 16710-33
Description: Armored interconnect ribbon-cable assembly for 3500 Series racks
Series: 3500 Interconnect Cables
Length: 0.30 m nominal (custom lengths available upon request)
Connector A: 50-pin ribbon-cable header (mates to card P2 backplane)
Connector B: 50-pin high-density D-sub male, metal shell
Armor: Stainless-steel conduit over PVC jacket (provides mechanical protection)
Accessory: Integrated strain-relief clamps on both ends
Technical Parameters
Conductors: 28 AWG tinned-copper, flat ribbon cable (50 conductors)
Impedance: ~ 60 Ω differential pair sections
Voltage Rating: 125 V DC max
Current Rating: 1 A per conductor (suitable for low-power logic signals)
Insulation Resistance: ≥ 100 MΩ at 500 V DC
Armor Material: 304 stainless steel flexible conduit over PVC jacket
Operating Temperature: –20 °C to +70 °C for Bently Nevada 16710-33
Certifications: RoHS-compliant; UL recognized component
Product function
Routes digital and analog I/O signals through Bently Nevada 16710-33 from 3500 Series modules through an armored harness to external termination points. Maintains precise conductor spacing to preserve signal timing, supports hot-swap module replacement, and consolidates 50 conductors in a single robust assembly.
Application Areas
Industrial Control Cabinets: Internally connecting rack modules using Bently Nevada 16710-33 to bulkhead terminations in power plants.
Marine & Offshore Platforms:Withstanding salt-spray and vibration with Bently Nevada 16710-33 in shipboard enclosures.
Petrochemical & Chemical Plants: Resisting chemical splash via Bently Nevada 16710-33 in hazardous-area panels.
OEM Machinery Skids: Embedded in skids requiring durable interconnects like Bently Nevada 16710-33.
Test & Calibration Benches: Providing protected harnesses for systems incorporating Bently Nevada 16710-33 without cable fatigue.
