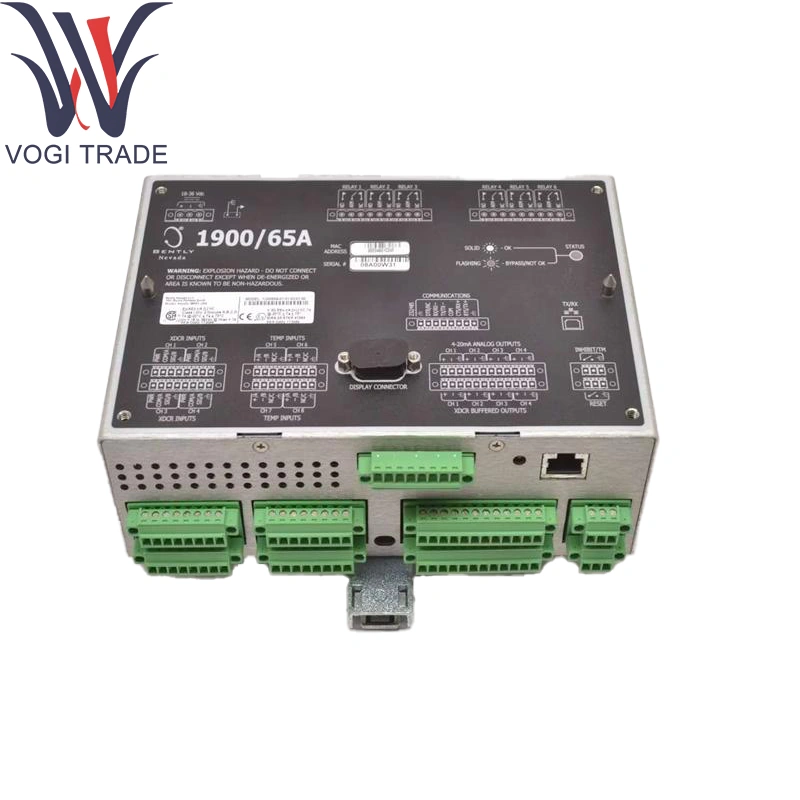

1900/65A General Purpose Equipment Monitor

1900/65A-AA-BB-CC-DD-EE

A: Power Option

00  18 to 36 Vdc

01  110 to 220 Vac @ 50 to 60 Hz (external supply)

B: Display Option

00  No display

01   Attached display (no cable)

02   Display with 10’ PVC cable

03  Display with 10’ unassembled PVC cable

04   Display with 10’ TEF cable

05   Display with 10’ unassembled TEF cable

C: Mounting Option

00   None

01   DIN rail mount

02   Bulkhead Mount

03   Fiberglass NEMA 4X/IP66 WP housing with window in door

04  1900/55 replacement kit (Ordering Information)

07  ProTIM Housing, Wiring and Mounting Hardware, (see ProTIM Housing Dimensions on page 25.).

D: Approvals Options

00   None

01   Multiple approvals

E: Communications Option

00   None

01   Modbus communicationsw

Technical Parameters

Inputs: Up to 16 discrete backplane-sourced alarm/status bits for Bently Nevada 172362-01

Outputs:

8 × Form A (SPST) solid-state outputs in Bently Nevada 172323-01

24 V DC drive, 100 mA per channel

Isolation: 1 kV channel-to-chassis

Indicators: Front-panel LEDs per output channel

Power: 24 V DC via backplane, ≤ 2 W

Environmental: 0 °C – 70 °C; ≤ 95 % RH non-condensing

Product function

Maps digital tags from rack modules to hardwired external circuits using Bently Nevada 172362-01.

Provides galvanic isolation and drive capability with Bently Nevada 172323-01 for field devices.

Monitors output health and reports faults on-board.

Application Areas

Plant ESD Integration: Feeding trip signals via Bently Nevada 172362-01 into emergency-shutdown logic

Annunciator Panels: Driving remote lamp/horn circuits through Bently Nevada 172323-01

PLC/DCS Inputs: Converting rack alarms into discrete controller inputs

OEM Skid Packages: Interfacing rack status to auxiliary equipment with Bently Nevada 172362-01
