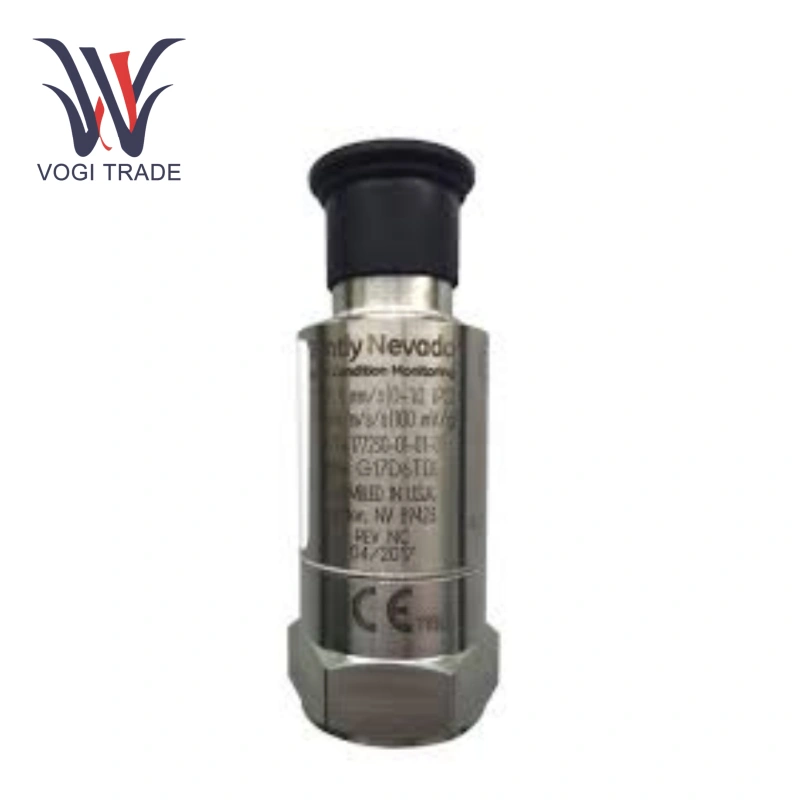

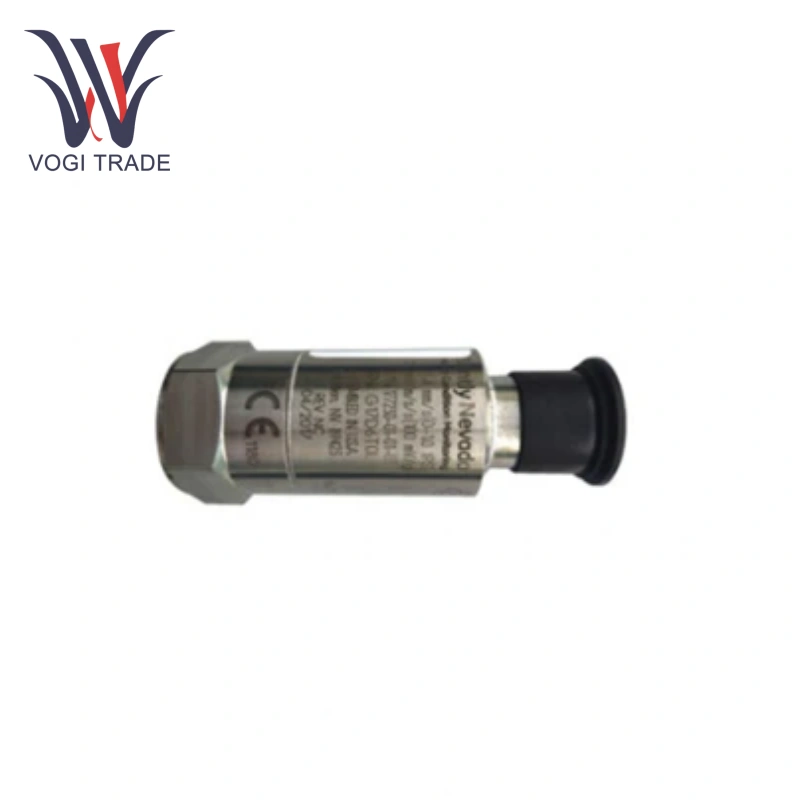

Bently Nevada 177230-01-01-CN

Product Overview

Model: 177230-01-01-CN

Product Type: Seismic Transmitter

Measurement Range: 0 - 25.4 mm/s (0 - 1.0 in/s)

Frequency Range: 10 Hz to 1 kHz (600 to 60 kcps) RMS

Output Signal: 4 - 20 mA standard current signal

Case Material: 316L stainless steel

Connector: 3-pin Mil-C-5015, 316L stainless steel

Mounting Hole Size: 1/4 - 28 UNF

Weight: 0.131 kg (product), 1.5 kg (with shipping packaging)

Relative Humidity Range: Up to 100% (non-submerged)

Product Advantages

Non-contact measurement: Bently Nevada 177230-01-01-CN requires no physical contact with the machine housing, eliminating wear and tear, protecting the sensor while maintaining normal machine operation.

Precise measurement: Bently Nevada 177230-01-01-CN provides accurate and repeatable vibration data, uses a simple data format, and can also output the raw vibration signal.

Widely compatible: Bently Nevada 177230-01-01-CN seamlessly integrates with a variety of control systems, including programmable logic controllers (PLCs), distributed control systems (DCSs), and supervisory control and data acquisition (SCADA).

Application

Power Industry: Bently Nevada 177230-01-01-CN used in steam turbines, generators, and other equipment to monitor vibration, promptly detect potential failures caused by abnormal vibration, and ensure stable operation of power equipment.

Petrochemical Industry: Bently Nevada 177230-01-01-CN is suitable for compressors, pumps, and other equipment, monitoring vibration in real time to prevent interruptions in chemical production due to equipment failure.

Physical Characteristics

Physical specifications for 177230-01-01-CN are from the "Physical" section of the document:

Weight: 131 g (4.62 oz).

Dimensions:

Diameter: 25.4 mm (1.00 in).

Height: 66.0 mm (2.60 in).

Material: 316L stainless steel housing and connector for corrosion resistance.

Mounting:

Thread options: 1/4-28 UNF, M6x1, M8x1.25 (stud adapter included).

Mounting torque: 4-7 N·m (35.4-62.0 in-lbf).

Warning: Avoid "snapping" when using the magnetic mount (which can generate spikes that can damage electronics). "Rolling" mounting is recommended.

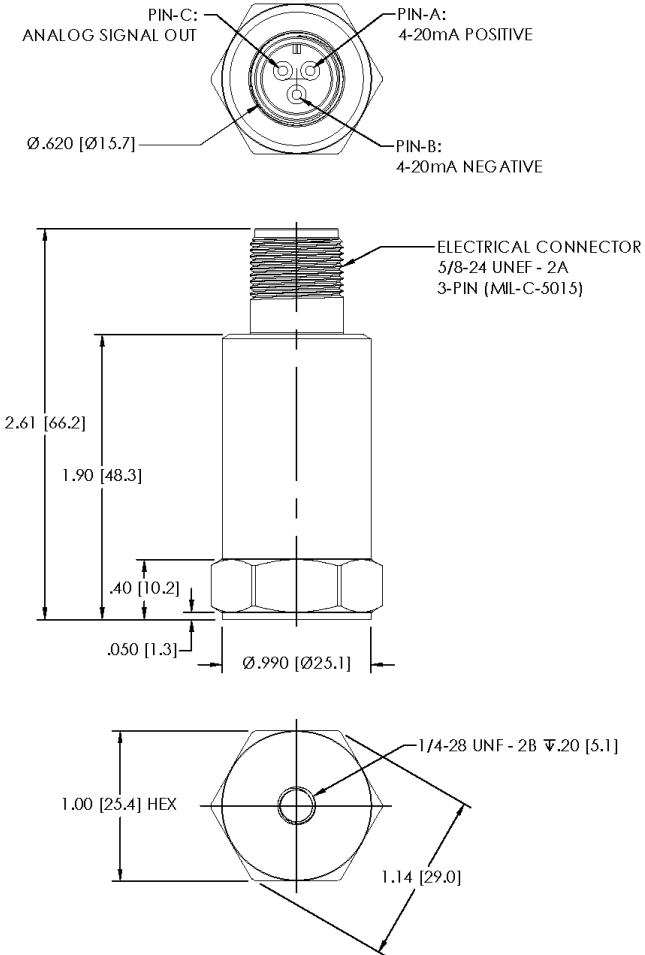

Visual representation of device form and dimensions:

Note

Compatibility: This product is intended for use only with the specified connection cables and control systems. Do not connect it to incompatible devices to avoid damaging the transmitter or affecting the normal operation of the system. Before connecting a new monitoring system, be sure to confirm the compatibility of the system and the transmitter.
