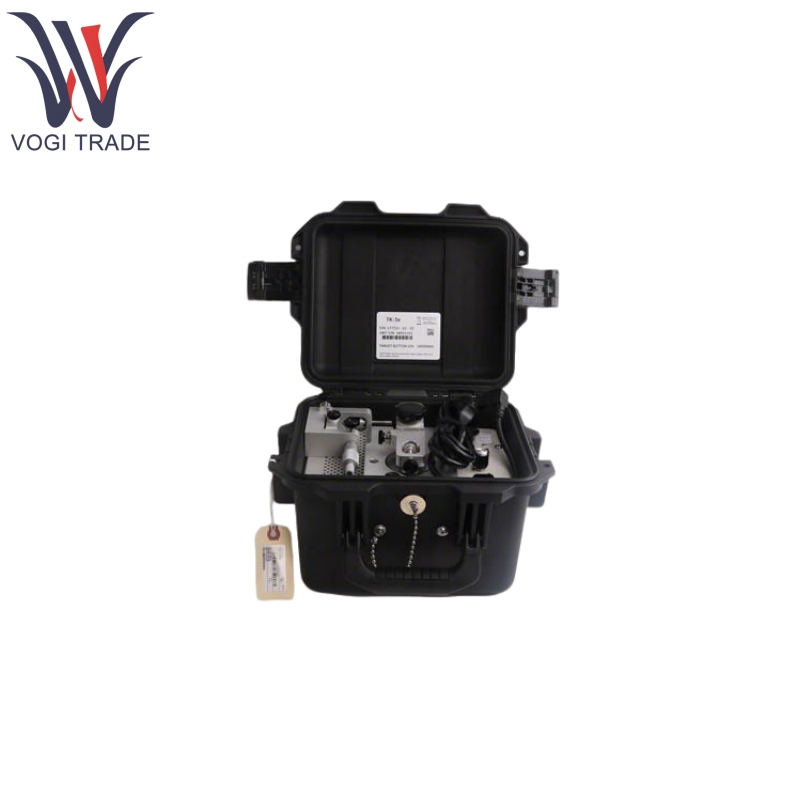

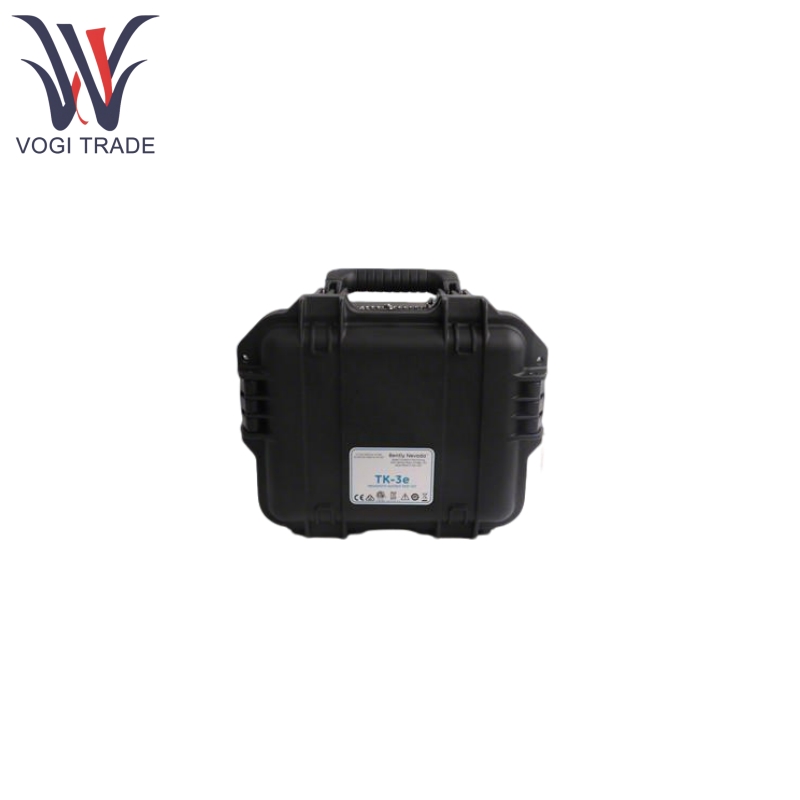

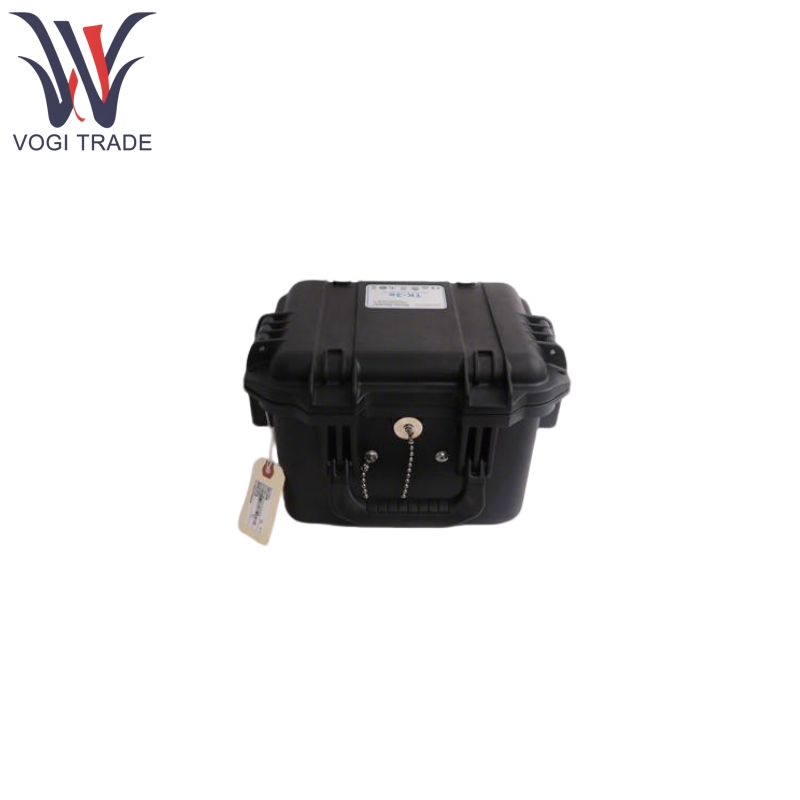

Brand: Bently Nevada Description: TK3 Proximity System Test Kit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 177313-02-02-00 simulates shaft vibration and position for calibrating Bently Nevada monitors. It verifies the operating condition of the monitor readouts as well as the condition of the proximity transducer system. A properly calibrated system ensures that the transducer inputs and the resulting monitor readings are accurate.
|
Manufacture |
Bently Nevada |
|
Model Number |
TK-3e |
|
Ordering Number |
177313-02-02-00 |
|
Catalog |
TK3 |
|
Country Of Origin |
United States (US) |
|
HS CODE |
9030900090 |
|
Dimension |
30*20*25cm |
|
Weight |
6kg |
Product Features
Bently Nevada 177313-02-02-00 TK3 Proximity System Test Kit has a dual mode calibration function:
Spindle Micrometer Assembly: Used to check sensor system and position monitor calibration by moving the target (close to or away from the probe tip) in calibration increments via a removable micrometer structure, in conjunction with a voltmeter to record the Proximitor sensor output.
Motor Driven Pendulum Disc: For calibration of vibration monitors, a pendulum arm assembly holds the proximity probe in place, eliminating the need for an oscilloscope and allowing the probe position to be adjusted to capture the desired amount of mechanical vibration (as determined by peak-to-peak DC voltage output), simply by combining the probe's absolute scale factor with a multimeter.
Bently Nevada 177313-02-02-00 TK3 Proximity System Test Kit has universally compatible:
Features a universal probe holder that accommodates probes from 5 mm to 19 mm (0.197 in. to 0.75 in.) in diameter, accommodating a wide range of proximity sensor sizes.
Bently Nevada 177313-02-02-00 TK3 Proximity System Test Kit designed for ease of operation:
Spindle micrometer assembly with magnetic base for easy field attachment and use, oscillating disk produces a known mechanical vibration signal, allowing comparison of monitor readings to actual inputs without complex commissioning.
Bently Nevada 177313-02-02-00 TK3 Proximity System Test Kit is safety guarded:
Safety warnings are designed for rotating parts and require the wearing of goggles and the use of safety shields to avoid injury from contact with moving parts.
Product Applications
Equipment Manufacturing & Maintenance:
Bently Nevada 177313-02-02-00 provides sensor system calibration tools for OEMs of rotating machinery such as centrifugal compressors, pumps and motors;
Commissioning of field monitoring systems:
Calibrates vibration and position monitors at industrial sites (e.g., power plants, chemical plants), where Bently Nevada 177313-02-02-00 ensures the accuracy of equipment condition monitoring;
Laboratory Calibration:
Bently Nevada 177313-02-02-00 is used as a metrology tool for factory inspection or periodic calibration of proximity sensors and monitors.
Ordering Information
|
Model |
177313 |
Base model, representing TK-3e Electric Driven |
|
Scale Unites |
02 |
Metric |
|
Power Cord Type |
02 |
European |
|
Agency Approvals |
00 |
None |
