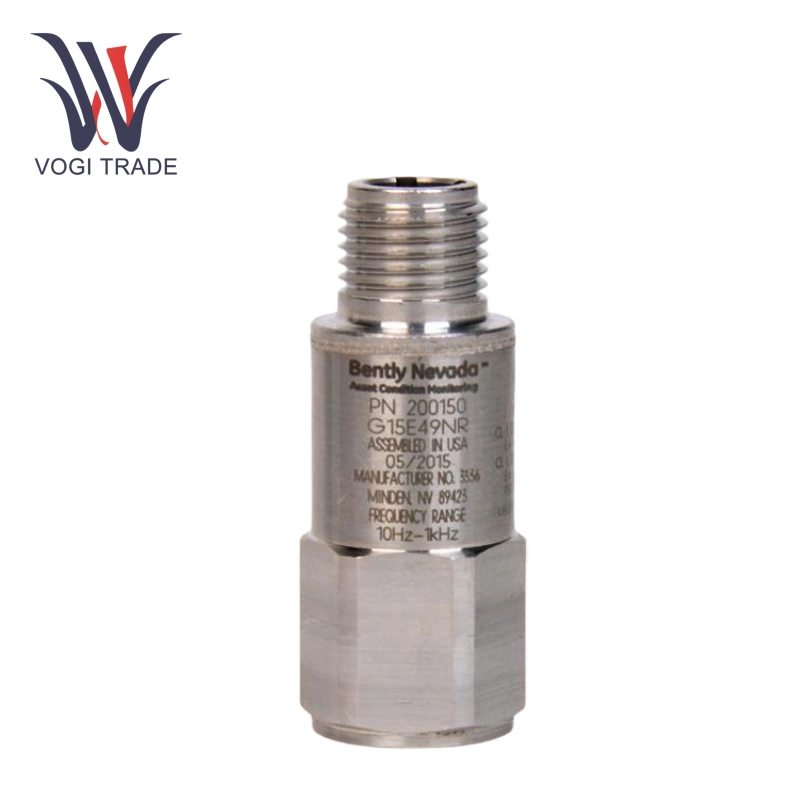

Brand: Bently Nevada Description: Trendmaster Pro Accelerometer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 200150-06-CN is an accelerometer for the Trendmaster Pro quasi-continuous online condition monitoring system. It can only be used with a compatible Transducer Interface Module (TIM) in the system.
|
Manufacture |
Bently Nevada |
|
Model Number |
200150-06-CN |
|
Ordering Number |
200150-06-CN |
|
Catalog |
- |
|
Country Of Origin |
America |
|
HS CODE |
9026200000 |
|
Dimension |
12*12*3CM |
|
Packing Dimension |
15*15*5CM |
|
Weight |
1.5 kg |
Product Overview
Sensitivity: ±12% at 80 Hz, 10.2 mV/(m/s²)
Measurement Range: ±245 m/s² (±25 g)
Frequency Range: 10 Hz to 1000 Hz (600 to 60,000 cpm)
Other Parameters:
Installed Resonant Frequency: >20 kHz.
Amplitude Linearity (1-10 g pk): ±2%.
Transverse Sensitivity: ≤7%.
Settling Time (within 5% of offset): ≤300 ms.
Excitation Voltage: 4.7-5.5 Vdc.
Quiescent Current: <800 μA.
Electrical Isolation: 600 Vrms.
Environmental and Physical Specifications
Temperature Range: -40°C to +105°C (-40°F to +221°F), 100% relative humidity (condensable).
Physical Dimensions: Hexagonal 17.5 mm × Height 45.7 mm (approximately 11/16 in × 1.8 in), Weight 58 g (typical).
Mounting Torque: 2.7-6.8 N·m (2-5 ft·lbf) using a 3/8-24 threaded hole.
Material: Housing and connector are 316L stainless steel. Sensing element is a ceramic shear geometry.

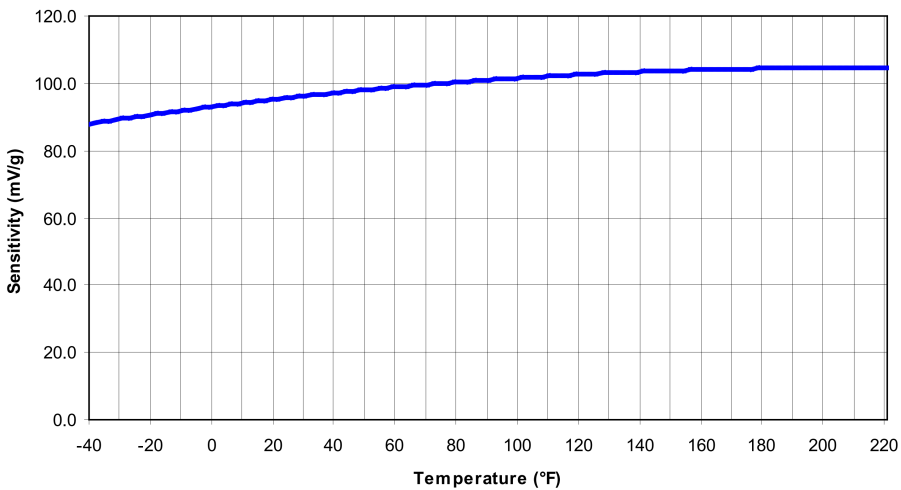

Temperature Effect on Sensitivity: (Typical curves show sensitivity changes from -40°C to +105°C).
Cable Specifications
Maximum cable length: 25 m (82 ft), but the 200150 can support longer custom cables in certain configurations.
Cable Type: 200151 and 200152 series cables, operating temperature -20°C to +100°C; avoid bending below -20°C to prevent damage.
Construction: 4-conductor, 22 AWG with braided shield (≥85% coverage), PVC outer jacket.
Product Features
Bently Nevada 200150-06-CN was designed specifically for harsh industrial environments, it operates in high-temperature, high-humidity, dusty, and electromagnetically interfering environments, effectively reducing measurement errors and equipment failures caused by environmental factors.
Bently Nevada 200150-06-CN with the design facilitates installation on equipment, making it easy to secure in place for both new equipment and retrofit installations. It also easily connects to the sensor interface module in the Trendmaster Pro system.
In general application scenarios, Bently Nevada 200150-06-CN accurately measures equipment vibration acceleration, providing reliable data for evaluating equipment operating status.
Application
Industrial Manufacturing: Bently Nevada 200150-06-CN is suitable for vibration monitoring of common industrial equipment such as motors, fans, and pumps. By monitoring vibration acceleration, it can promptly detect potential faults such as wear and looseness of equipment components.
Energy Industry: Bently Nevada 200150-06-CN is suitable for equipment such as steam turbines and generators, it can monitor vibration conditions during operation in real time to assist in determining the equipment's operating status.
