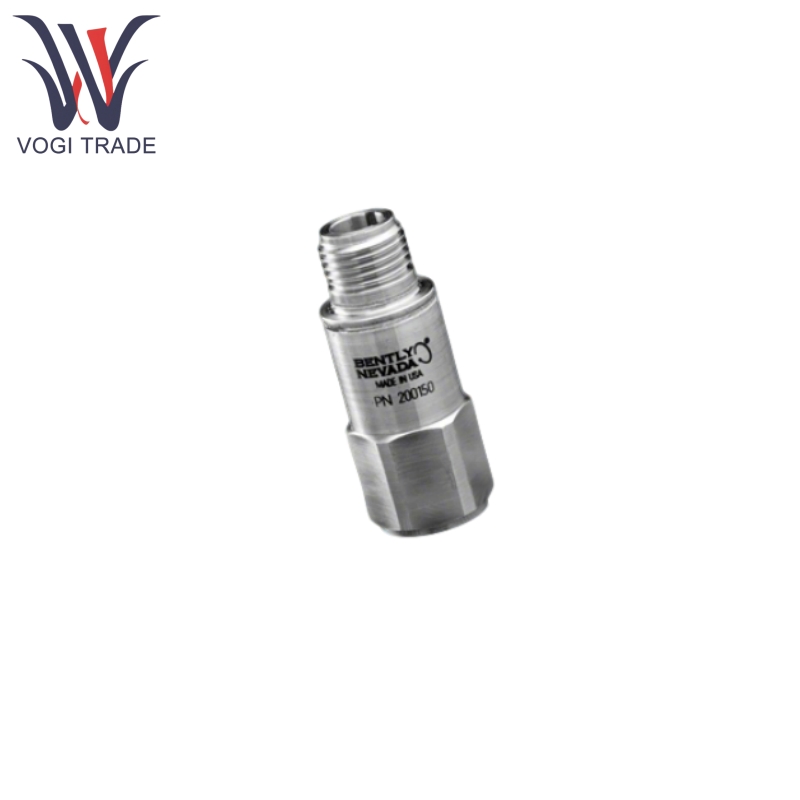

Brand: Bently Nevada Description: Trendmaster Pro Accelerometer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 200150-22-CN is a general-purpose, wide-frequency, case-mounted seismic sensor designed for use with the Trendmaster Pro system. It can also be used with the Trendmaster 2000 periodic inspection system. This accelerometer is constructed of 316L stainless steel and housed in a sealed enclosure.
|
Manufacture |
Bently Nevada |
|
Model Number |
200150-22-CN |
|
Ordering Number |
200150-22-CN |
|
Catalog |
- |
|
Country Of Origin |
America |
|
HS CODE |
9026200000 |
|
Dimension |
12*12*3CM |
|
Packing Dimension |
15*15*5CM |
|
Weight |
1.5 kg |
Product Overview
Model: 200150-22-CN
Product Type: Accelerometer
Measurement Range: ±245 (±25) m/s² (g)
Frequency Range: 10 to 10,000 Hz (600 to 600,000 cpm)
Sensitivity: 10.2 mV/(m/s²) at 80 Hz
Temperature Range: -40°C to +105°C (-40°F to +221°F)
Relative Humidity: 100% RH, condensing, non-submerged
Sealing: Maximum 5 x 10⁻⁸ atm・cc/s (3.1 x 10⁻⁹ atm・in³/s)
Electrical Connector: Top 5-pin 1/2" - 20"
Case and Connector Material: 316L Stainless Steel
Mounting Torque: 2.7" To 6.8 N·m (2 to 5 ft·lbf)
Mounting Thread: 3/8 - 24 Internal
Electrical Characteristics
Operating voltage: 4.7–5.5 Vdc, quiescent current <800 μA.
Output bias voltage: +2.5 ± 0.23 Vdc (differential signal).
Electrical isolation: 600 Vrms for enhanced safety.
Product Features：
Rugged and Durable: Bently Nevada 200150-22-CN use the sealed 316L stainless steel housing withstands harsh environments such as dust, moisture, and chemical attack.
Wideband Measurement: Bently Nevada 200150-22-CN with a wide frequency response range of 10 to 10,000 Hz enables accurate measurement of vibration acceleration in various equipment under varying operating conditions.
High Sensitivity: Bently Nevada 200150-22-CN with a sensitivity of 10.2 mV/(m/s²) at 80 Hz, it can detect subtle vibration changes and promptly identify potential equipment failures.
Application
Power Industry: Bently Nevada 200150-22-CN can be used in equipment such as steam turbines and generators to monitor vibration during operation and assess their operating status.
Petrochemical Industry: Bently Nevada 200150-22-CN is commonly used in equipment such as compressors, pumps, and mixers. By monitoring vibration, potential equipment failures such as seal failure and bearing damage can be detected promptly.
Note
Compatibility:
Only the 200150 supports the Trendmaster 2000 system; the 200155/200157 must strictly match the ProTIM channel type.
Signal Quality:
Avoid mixing alternative models (e.g., using a 200155 instead of a 200150 may result in erroneous readings).
Environmental Compliance:
Zone 0/1 requires use of type A/B cables compliant with EN 60079-25.
