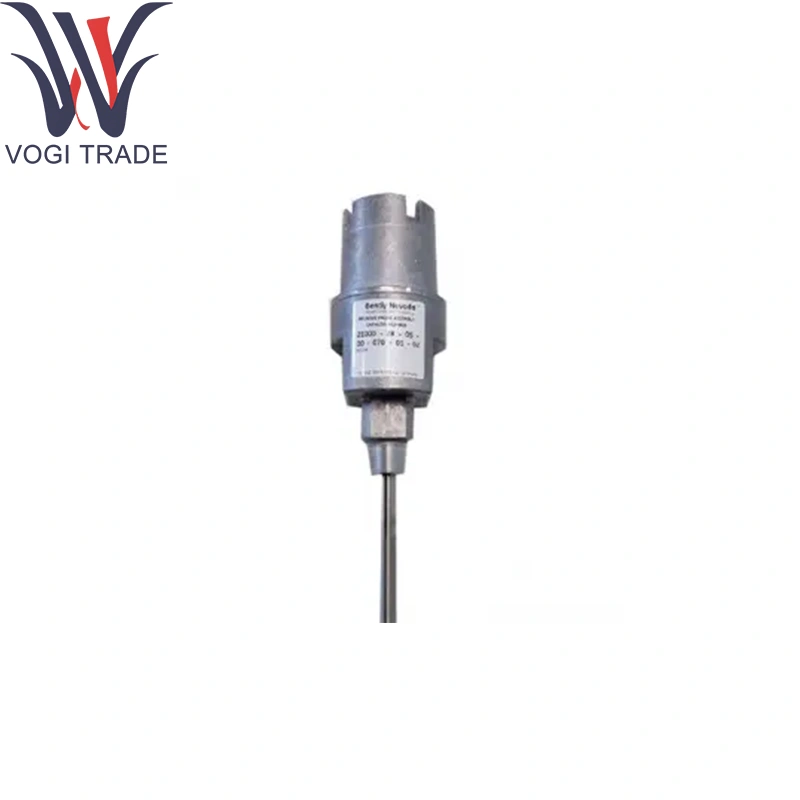

Brand: Bently Nevada Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 13 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 21000-16-10-00-256-13-02 Used to mount 3300 XL series proximity probes through bearing housing covers or structural flanges.
|
Manufacture |
Bently Nevada |
|
Model Number |
21000-16-10-00-256-13-02 |
|
Ordering Number |
21000-16-10-00-256-13-02 |
|
Catalog |
21000 |
|
Description |
Proximity Probe Housing Assemblies |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
1 M |
|
Weight |
0.5 kg |
Ordering Information
21000-AA-BB-CC-DDD-EE-FF
A: Probe with Connector
00 Probe not required
14 420 nuclear
16 3300 XL 8mm probe
26 3300 XL NSv probe
27 3300 XL NSv probe, selectable hazardous area approvals
28 3300 XL 8mm probe, selectable hazardous area approvals
29 3300 XL 11mm probe
30 3300 XL 11mm probe, selectable hazardous area approvals
31 3300 XL NSv probe with connector protector
32 3300 XL NSv probe with connector protector, selectable hazardous area approvals
33 3300 XL 8mm probe with connector protector
34 3300 XL 8mm probe with connector protector, selectable hazardous area approvals
35 3300 XL 11mm probe with connector protector
36 3300 XL 11mm probe with connector protector, selectable hazardous area approvals
37 3300 XL 8mm probe, ETR, selectable hazardous area approvals (available for 21000 only)
B: Probe Cable Length
00 Probe cable not required
05 0.5 m (20 in)
10 1.0 m (39 in)
12 12.0 in
18 18.0 in
24 24.0 in
30 30.0 in
36 36.0 in
C: Standoff Adapter (Option C Dimension)
15 Minimum length 1.5 in (38 mm)
75 Maximum length 7.5 in (191 mm)
Recommendation
Order in increments of 0.5 in (13 mm)
Examples
1.5 in (38 mm) = 15
No standoff adapter = 00
D: Probe Penetration (Option D Dimension)
10 Minimum length 1.0 in (25.4 mm)
Other
Recommendation
Order in increments of 0.1 in (3 mm)
Examples
3.7 in (94 mm) = 037
22.4 in (569 mm) = 224
E: Fittings
00 Without fittings
01 One 3/4-14 NPT explosion-proof fitting One 3/4-14 NPT plug
02 Two 3/4-14 NPT explosion-proof fittings
03 One 3/4-14 NPT plug
One 3/4-14 to 1/2-14 NPT reducer
One cable seal grip with grommets for the following cable sizes:
• 1/8 to 3/16 inches
• 1/4 to 5/16 inches
• 5/16 to 3/8 inches
04 One 3/4-14 NPT plug only
F: Mounting Thread
01 As cast without threads
02 3/4-14 NPT
Must be ordered if Standoff Adapter Length option is not 00.
04 1/2-14 BSP
Technical Parameters
Material: 316 SS body; PPS insulator; Viton O rings for Bently Nevada 21000-16-10-00-256-13-02
Pressure Rating: Up to 10 000 PSI (with proper O ring selection)
Temperature Rating: –35 °C to +200 °C
Vibration Resistance: Meets IEC 60068 2 6, 5 g sinusoidal, 50 Hz–500 Hz in Bently Nevada 21000-16-10-00-256-13-02
EMC Shielding: Provides 100 dB EMI/RFI attenuation at 1 GHz when mated
Ingress Protection: IP68 (with connectors mated and O rings installed)
Alignment Tolerance: ± 0.1 mm concentricity to flange bores
Product function
Probe Support & Alignment: Rigidly positions proximity probes via Bently Nevada 21000-16-10-00-256-13-02 at controlled air-gaps to rotating shafts.
Environmental Seal: Protects cable entry from contaminants.
Vibration Isolation: Dampens structural vibration transmission.
Serviceability: Captive-screw design enables probe maintenance without flange disassembly.
Application Areas
Steam & Gas Turbines: Flange-mounted housings with Bently Nevada 21000-16-10-00-256-13-02 on bearing covers for clearance monitoring.
Compressors & Pumps: High-pressure penetration fittings in lubricated environments.
Industrial Motors & Generators: Sealed shaft-position sensing using Bently Nevada 21000-16-10-00-256-13-02.
Offshore & Marine: Corrosion-resistant mountsfeaturing Bently Nevada 21000-16-10-00-256-13-02 in salt-spray environments.
Test Cells & R&D Rigs: Quick-change fixtures for lab diagnostics.
