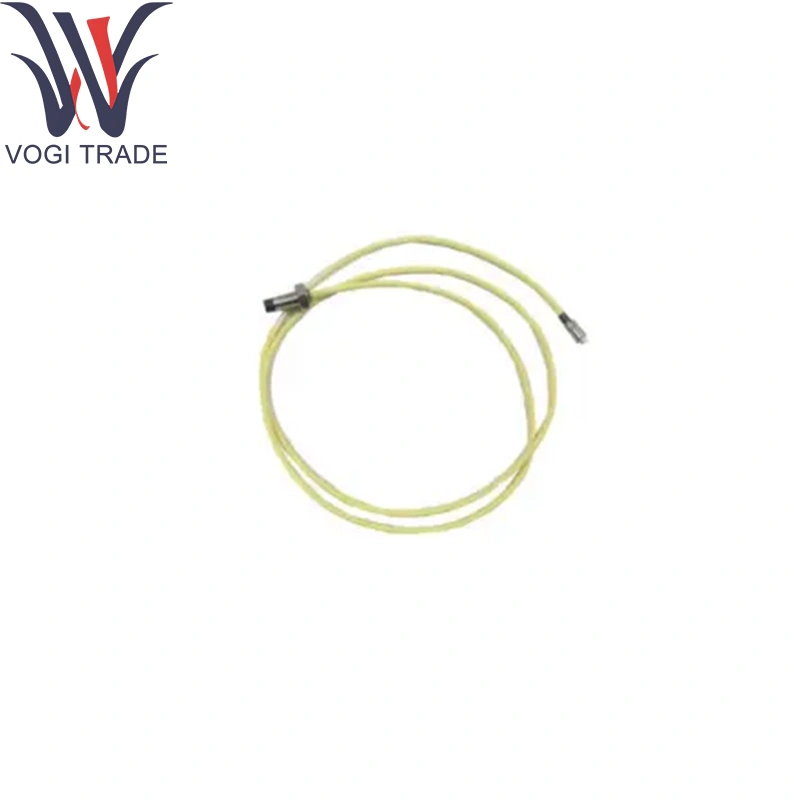

Brand: Bently Nevada Description: 21504-000-008-10-02 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 21504-000-008-10-02 Non-contact shaft-displacement and vibration monitoring on large or remote installations where the probe must be spaced up to 10 m from its conditioning or monitor module.
|
Manufacture |
Bently Nevada |
|
Model Number |
21504-000-008-10-02 |
|
Ordering Number |
21504-000-008-10-02 |
|
Catalog |
7200 XL |
|
Description |
5mm and 8mm Standard Mount Probe |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
1 M |
|
Weight |
0.15 kg |
Ordering Information
Part Number: 21504-000-008-10-02
Series: 3300 XL Proximity Probe System
Probe Tip Diameter: 8 mm (0.315 in) sensing face
Probe-Nose Length Code (“000”): Standard short-nose (~ 5 mm)
Cable Length Code (“10”): 10 m (33 ft) PVC-jacketed, braided-shield cable
Jacket Variant (“02”): Standard PVC (unarmored)
Connector Kit: Factory-installed 10-pin mini-DIN
Mounting Thread: 3/8-24 UNF
Technical Parameters
Linear Range: 2 mm (80 mils) full-scale for Bently Nevada 21504-000-008-10-02
Sensitivity: 200 mV/mil (7.87 mV/µm) ± 5 % at –23 V DC excitation in Bently Nevada 21504-000-008-10-02
Output Span: –2 V to –18 V DC over linear range
Linearity: ± 1 % of full-scale
Frequency Response: DC to 10 kHz (–3 dB)
Operating Temperature:
Probe: –35 °C to +125 °C
Cable: –20 °C to +80 °C
Environmental Seal: IP65 when mated to connector
Pressure Rating: Use with bulkhead gland or thermowell for pressurized applications
Product function
Bently Nevada 21504-000-008-10-02 converts minute air-gap variations between probe tip and rotating shaft into proportional AC voltage. The long, impedance-matched shielded cable maintains signal fidelity via Bently Nevada 21504-000-008-10-02, delivering output to Proximitor® modules for linearization and real-time analysis.
Application Areas
Power-Generation Turbines & Compressors: Remote bearing-clearance sensing with Bently Nevada 21504-000-008-10-02
Centrifugal Pumps & Industrial Motors: Shaft-position feedback for stability control
Large OEM Skids & Panels: Factory-installed harnesses featuring Bently Nevada 21504-000-008-10-02
Portable & Lab-Scale Test Rigs: Flexible probe placement with extended reach
Control-Room Installations: Machinery-floor probes with remote rack rooms
