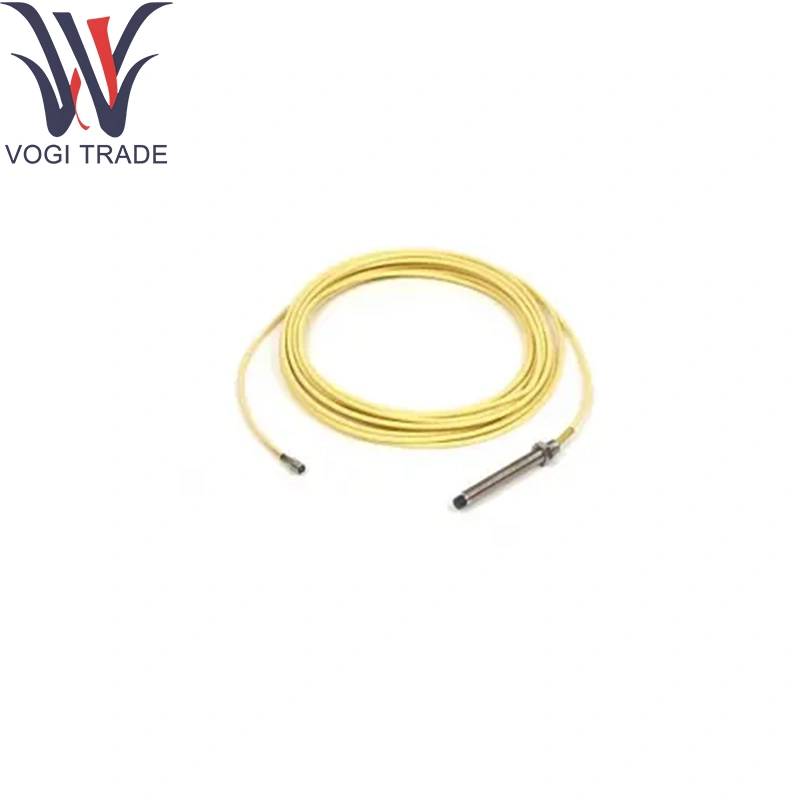

Brand: Bently Nevada Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 11 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 21504-000-076-05-02 Provides non-contact shaft-displacement and vibration sensing for installations where the probe must be located up to 7.6 m from its monitor or conditioning module.
|
Manufacture |
Bently Nevada |
|
Model Number |
21504-000-076-05-02 |
|
Ordering Number |
21504-000-076-05-02 |
|
Catalog |
7200 XL |
|
Description |
5mm and 8mm Standard Mount Probe |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
7.6 M |
|
Weight |
0.5 kg |
Ordering Information
Part Number: 21504-000-076-05-02
Series: 3300 XL Proximity Probe System
Probe Tip Diameter: 8 mm (0.315 in) sensing face
Probe-Nose Length Code (“000”): Standard short-nose (~ 5 mm)
Cable Length Code (“076”): 7.6 m (24.9 ft) PVC-jacketed, braided-shield cable
Jacket Variant (“05”): Standard PVC (unarmored)
Connector Kit (“02”): Factory-installed 10-pin mini-DIN
Mounting Thread: 3/8-24 UNF
Technical Parameters
Linear Range: 1.0 mm (40 mils) for Bently Nevada 21504-000-076-05-02
Sensitivity: 50 mV/µm ± 5 % (@ –23 V DC)
Output Span: –2 V to –12 V
Linearity: ± 1 % of FS
Frequency Response: DC to 10 kHz (–3 dB)
Operating Temp: –35 °C to +125 °C (probe), –20 °C to +80 °C (cable)
Environmental Seal: IP65 mated
Pressure Use: Requires bulkhead/thermowell
Product function
Bently Nevada 21504-000-076-05-02 converts small air-gap changes between probe tip and shaft into an AC voltage. The unarmored, impedance-matched cable preserves signal fidelity via Bently Nevada 21504-000-076-05-02 for linearization and digitization by Proximitor® modules.
Application Areas
Steam & Gas Turbines: Bearing clearance and early rub detection with Bently Nevada 21504-000-076-05-02
Compressors & Pumps: Surge control and shaft-position feedback
Motors & Generators: Imbalance and misalignment monitoring
R&D/Test Benches: Lab-scale vibration studies
OEM Skids: Internal non-armored probe wiring in packages featuring Bently Nevada 21504-000-076-05-02
