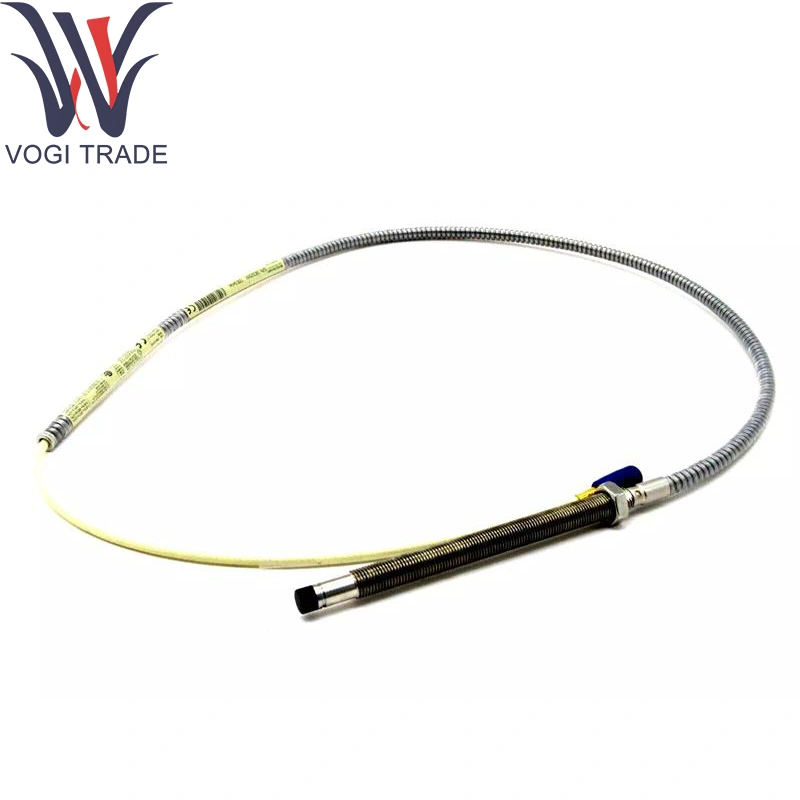

Brand: Bently Nevada Description: 21505-00-96-50-02 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 21505-00-96-50-02 Used in rotating machinery vibration monitoring systems, this proximity probe is ideal for measuring shaft displacement, radial vibration, axial (thrust) position, and speed (via Keyphasor®).
|
Manufacture |
Bently Nevada |
|
Model Number |
21505-00-96-50-02 |
|
Ordering Number |
21505-00-96-50-02 |
|
Catalog |
7200 |
|
Description |
8mm Standard Mount Probe |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
5 m |
|
Weight |
0.25 kg |
Ordering Information
Part Number: 21505-00-96-50-02
Series: 3300 XL Proximity Probe System
Probe Diameter: 8 mm (0.315 in)
Probe Length: 64 in (1.63 m)
Cable Length: 5.0 m (16.4 ft)
Connector Type: Standard coaxial (probe-to-extension cable) with gold-plated contacts
Mounting Thread: 3/8–24 UNF (standard thread)
Technical Parameters
Linear Range: 2 mm (80 mils) for Bently Nevada 21505-00-96-50-02
Sensitivity: 7.87 mV/μm (200 mV/mil) ±5 %
Output Voltage: –2 V to –18 V typical over linear range
System Accuracy: ±0.076 mm (±3 mils) or better when used with 3300 XL Proximitor®
Frequency Response: DC to 10 kHz
Temperature Range:
Probe: –35 °C to +177 °C
Cable: –51 °C to +177 °C
Pressure Rating: Suitable for pressurized environments up to 10,000 PSI with sealing accessories
EMC Compliance: Meets IEC/EN 61326 for industrial environments
Product function
Non-contact displacement measurement of metallic targets using Bently Nevada 21505-00-96-50-02. Works with extension cables and Proximitor® modules to provide real-time analog voltage proportional to shaft position or vibration. Compatible with Bently Nevada 3300/3500/3700 systems.
Application Areas
Steam/Gas Turbines: Shaft vibration monitoring with Bently Nevada 21505-00-96-50-02
Compressors: Radial/axial movement detection in high-speed shafts
Generators & Motors: Bearing monitoring and startup protection
Industrial Pumps: Vibration-based condition monitoring
Hydraulic Machinery: Real-time position tracking
OEM & Retrofit Installations: Hazardous/high-temperature areas
