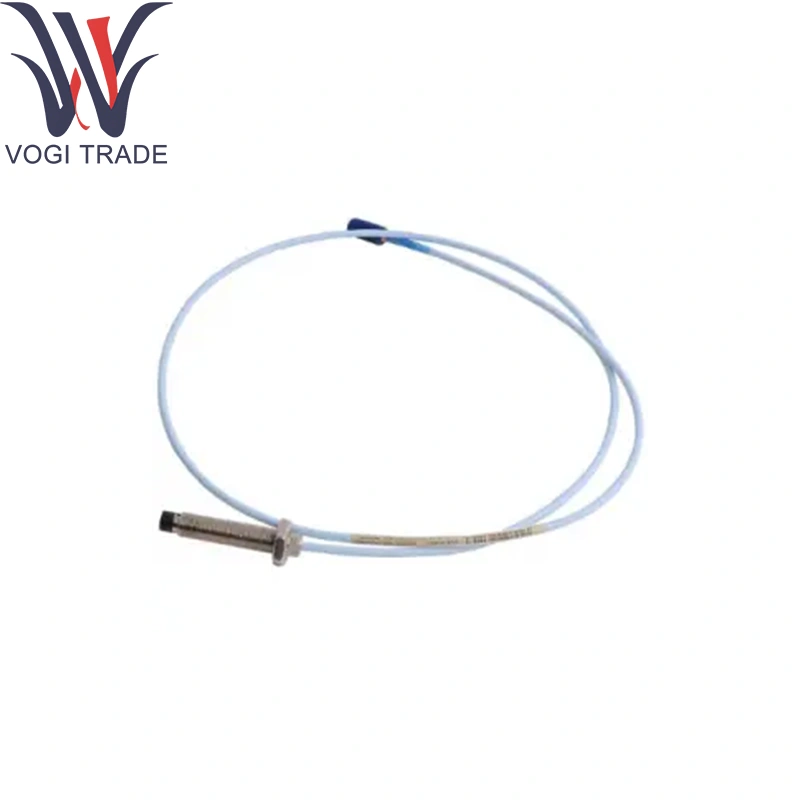

Brand: Bently Nevada Description: 21747-045-00 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 21747-045-00 Used to extend the factory-supplied proximity-probe cable when the probe is located up to 4.5 m from its Proximitor® or monitor module.
|
Manufacture |
Bently Nevada |
|
Model Number |
21747-045-00 |
|
Ordering Number |
21747-045-00 |
|
Catalog |
7200 XL |
|
Description |
Extension Cable |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
| Dimension |
4.5 M |
|
Weight |
0.22 kg |
Ordering Information
Part Number: 21747-045-00
Description: Proximity‐probe extension cable for 3300/3500/3700 Series I/O modules
Length Code (“045”): 4.5 m (± 0.05 m)
Connector A: 10-pin mini-DIN (mating probe end)
Connector B: 10-pin mini-DIN (mating monitor/Proximitor® module end)
Jacket Material: PVC (standard)
Shielding: Braided tinned‐copper ≥ 95 % coverage with drain‐wire
Technical Parameters
Characteristic Impedance: 50 Ω ± 5 % for Bently Nevada 21747-045-00
Capacitance: ≤ 100 pF/m between conductors in Bently Nevada 21747-045-00
Conductor: 26 AWG, 7 × 36 tinned-copper strands per core
Voltage Rating: 300 VAC max (insulation)
Temperature Rating: –20 °C to +80 °C (PVC jacket)
Environmental Compliance: RoHS-compliant; UL-recognized cable
Product function
Maintains the integrity of proximity-probe signals via Bently Nevada 21747-045-00 by providing low-loss, shielded extensions between probes and conditioning modules. The impedance-matched design minimizes noise and reflections for accurate shaft displacement and vibration measurement.
Application Areas
Power-Generation Turbines & Compressors: Extending probe connections with Bently Nevada 21747-045-00 in large plant layouts
Industrial Pumps & Motors: Remote mounting in skid/panel installations
Portable Test Rigs: Quick-disconnect harnesses using Bently Nevada 21747-045-00 for field diagnostics
OEM Machinery Skids: Factory-installed assemblies featuring Bently Nevada 21747-045-00
Control Panel Internals: Neat cabling in enclosures using Bently Nevada 21747-045-00
