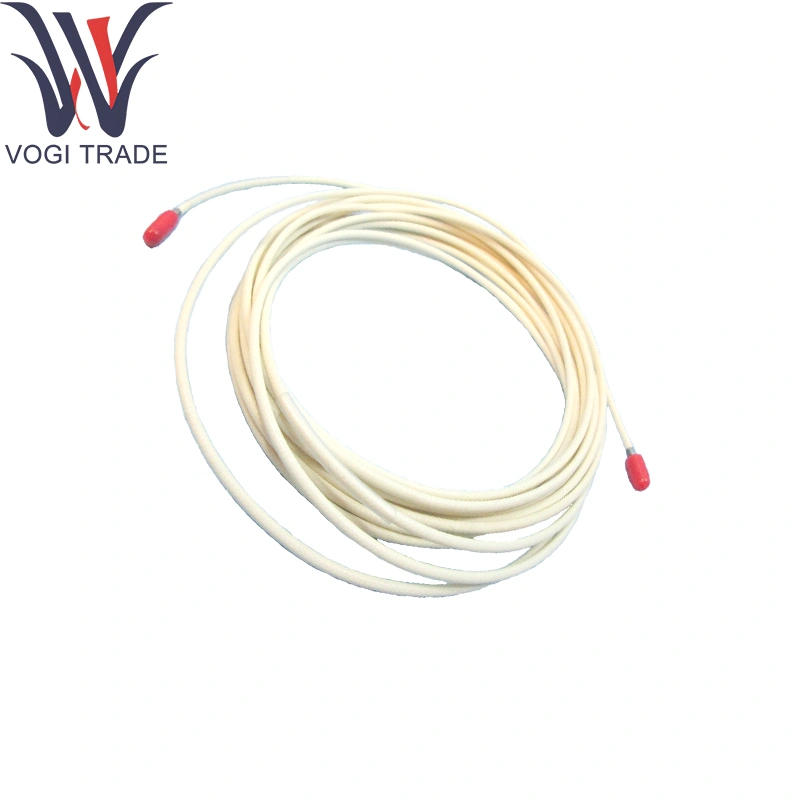

Brand: Bently Nevada Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 22 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 21747-080-00 Extends the factory-supplied proximity-probe cable for installations where probes are located up to 8 m from their conditioning or monitor modules.
|
Manufacture |
Bently Nevada |
|
Model Number |
21747-080-00 |
|
Ordering Number |
21747-080-00 |
|
Catalog |
7200 XL |
|
Description |
Extension Cable |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
8 M |
|
Weight |
0.5 kg |
Ordering Information
Part Number: 21747-080-00
Description: Proximity-probe extension cable for 3300/3500/3700 Series monitor modules
Length Code (“080”): 8.0 m (± 0.05 m)
Connector A: 10-pin mini-DIN (probe end)
Connector B: 10-pin mini-DIN (Proximitor®/monitor-module end)
Jacket Material: PVC (standard)
Shielding: Braided tinned-copper ≥ 95 % coverage with drain-wire
Technical Parameters
Characteristic Impedance: 50 Ω ± 5 % for Bently Nevada 21747-080-00
Capacitance: ≤ 100 pF/m between conductors
Conductor: 26 AWG, 7 × 36 tinned-copper strands per core
Voltage Rating: 300 VAC max (insulation)
Temperature Rating: –20 °C to +80 °C (PVC jacket) on Bently Nevada 21747-080-00
Environmental Compliance: RoHS-compliant; UL-recognized cable
Product function
Bently Nevada 21747-080-00 maintains the integrity of the proximity-probe's high-frequency AC signal by providing a low-loss, impedance-matched extension between the probe and its conditioning or monitor module. The robust shielding in Bently Nevada 21747-080-00 and controlled impedance minimize signal attenuation and noise, supporting accurate real-time measurement of shaft clearance and vibration over extended distances.
Application Areas
Power-Generation Turbines & Compressors: Extending probe connections across large plant footprints using Bently Nevada 21747-080-00
Industrial Pumps & Motors: Remote probe mounting in skid and panel installations
Portable Test & Calibration Rigs: Quick-disconnect harnesses for field diagnostics
OEM Skid Packages: Factory-installed long-cable assemblies featuring Bently Nevada 21747-080-00
Control-Room Enclosures: Neat, shielded cabling from machinery floor to remote rack rooms
