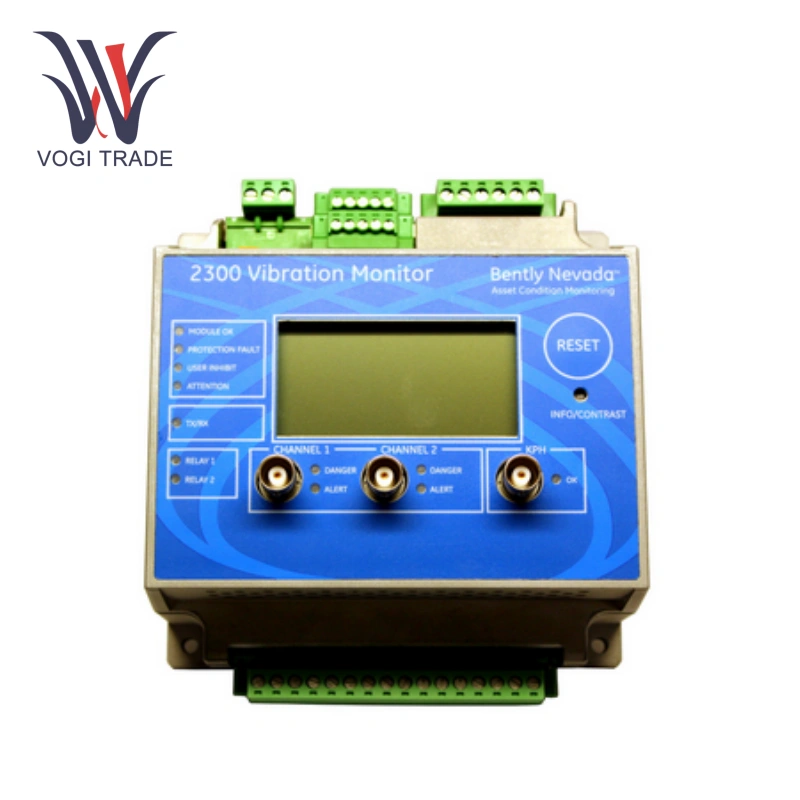

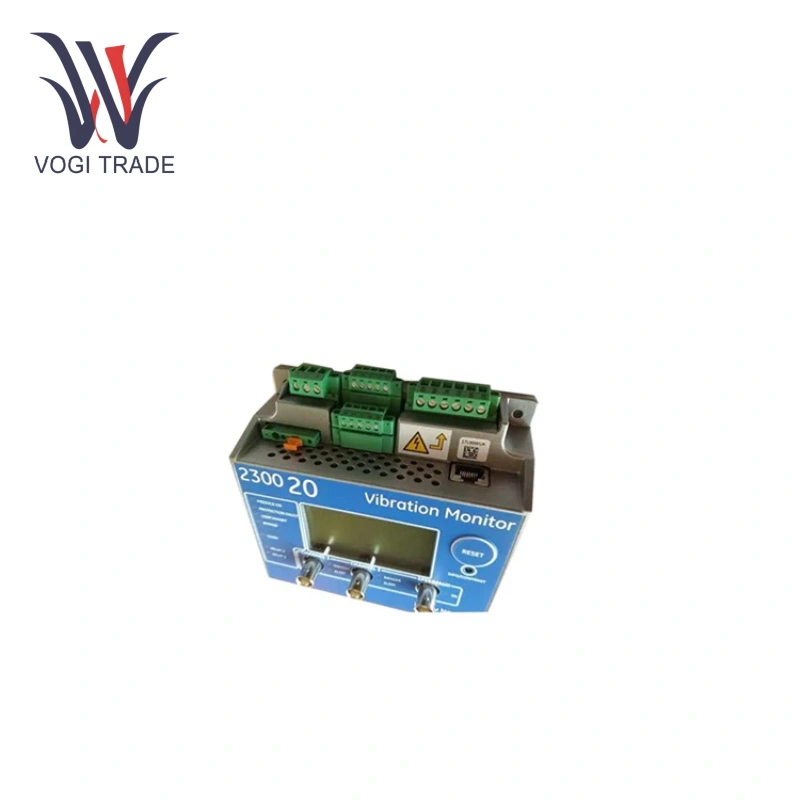

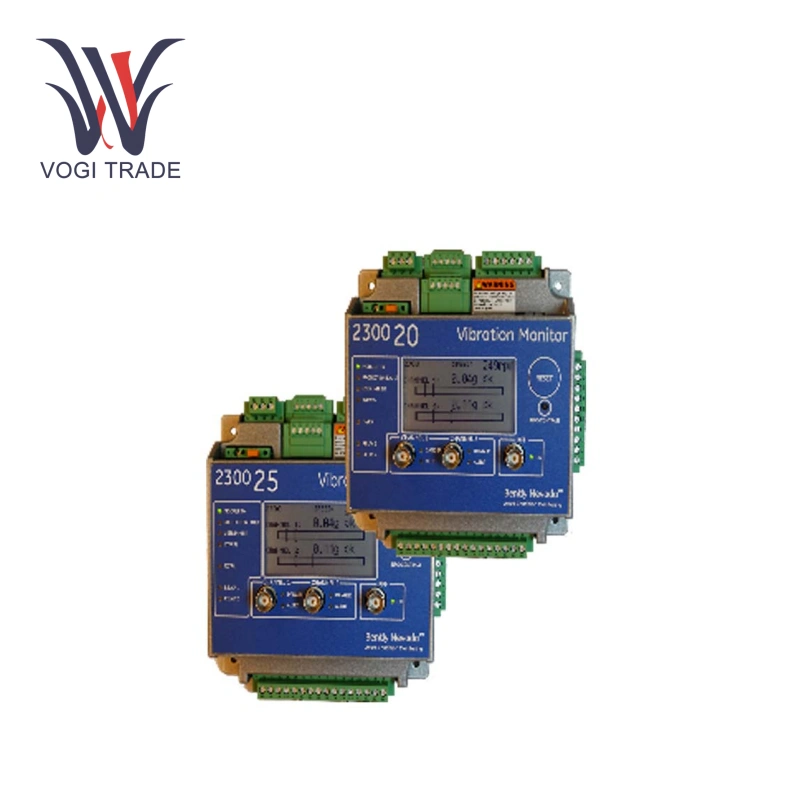

Brand: Bently Nevada Description: Monitor with 4-20ma Outputs Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The 2300/20 Vibration Monitor is a cost-effective, continuous vibration monitoring and protection device designed for real-time monitoring of low- to medium-critical machinery. It is suitable for use in industries such as oil and gas, power generation, water treatment, papermaking, manufacturing, mining, and cement.
|
Manufacture |
Bently Nevada |
|
Model Number |
2300/20-CN |
|
Ordering Number |
2300/20-CN |
|
Catalog |
- |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
25*25*5CM |
|
Packing Dimension |
30*30*8CM |
|
Weight |
2 kg |
Product Overview
Power Input: 18–36 VDC, Maximum Power Consumption: 7.5 W
Operating Temperature: -30°C to +65°C
Protection Rating: Optional IP66 housing (105M6193-01/03)
Dimensions/Weight: 127 × 127 × 76.2 mm / 1.03 kg
Mounting: Panel mount or DIN rail (adapter included)
Certifications: FCC, EMC (EN 61326), ATEX/IECEx (Explosion-Proof), RoHS
Dual-channel input: Supports accelerometers (ICP), velocity sensors (Velomitors), and eddy-current probes (Proximitors), with synchronized sampling and advanced diagnostics.
Dedicated speed channel: Compatible with proximity probes, magnetic pickups, and proximity switches, with a speed range of 1–120,000 RPM.
4–20 mA output: Provides two configurable analog outputs for direct connection to DCS systems.
Relay alarm: Two programmable dry contact relay outputs with alarm latch and reset functionality.
Product Features
Multi-channel Monitoring: Bently Nevada 2300/20-CN with the dual-channel design allows simultaneous vibration monitoring of different parts of the equipment. Combined with the speed channel, this provides more comprehensive equipment status monitoring.
Strong Signal Compatibility: Bently Nevada 2300/20-CN receives signals from a variety of sensor types, suitable for various types of industrial equipment.
Convenient Data Transmission: Bently Nevada 2300/20-CN with the 4-20mA output and various output methods facilitate integration with existing industrial control systems, enabling remote data transmission and centralized management.
Application
Industrial Manufacturing: Bently Nevada 2300/20-CN is suitable for vibration monitoring of equipment such as motors, machine tools, coal mills, centrifuges, mixers, and agitators.
Power Industry: Bently Nevada 2300/20-CN is suitable for vibration monitoring of equipment such as small turbines, fans, and blowers to prevent power outages caused by equipment failure.
System Kit (KIT) Options
2300/20 KIT-AAA-BB: Includes monitor, protective housing, sensors, and cables (e.g., 001 configuration includes two AM3100T2-Z2 accelerometers).
Certification Option: BB=02 for multiple explosion-proof certifications (ATEX/IECEx/CSA).
Power Supply and Accessories
Power Module: 110M7102-01 (24 VDC/1.3A, supports four monitors).

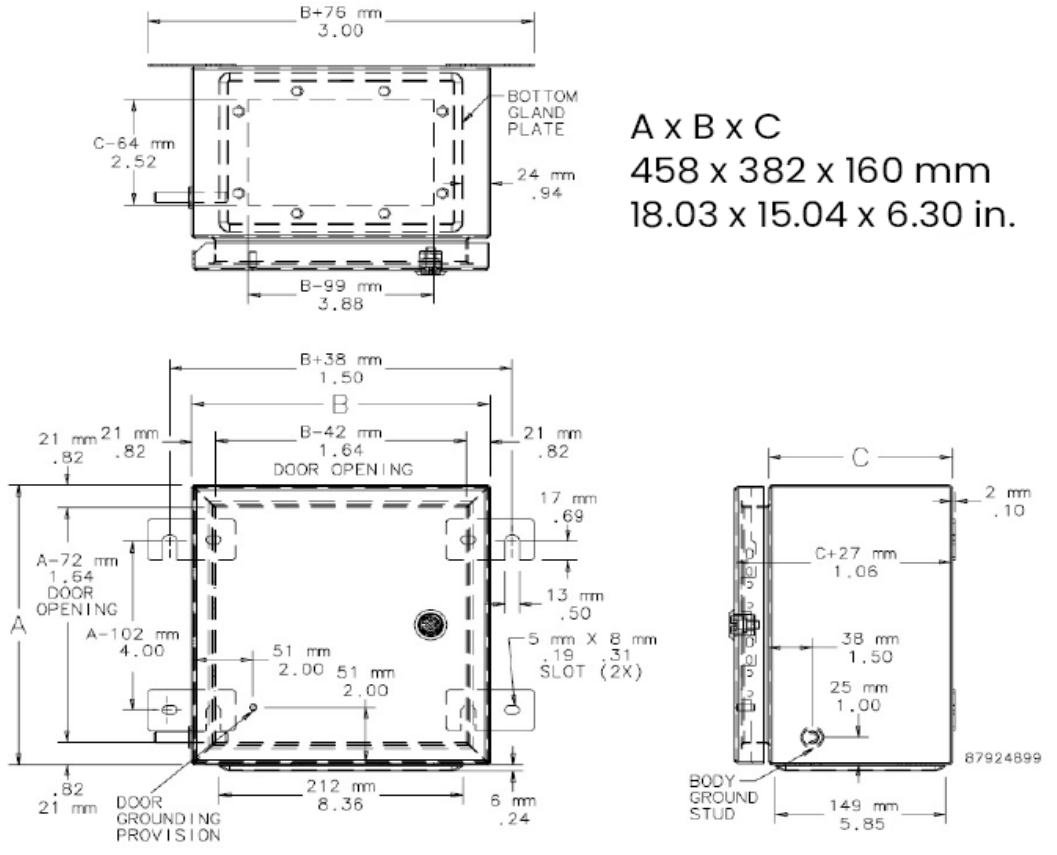

Protective Housing: 105M6193-01 (fiberglass, non-hazardous area) or 105M6193-03 (stainless steel, hazardous area).
