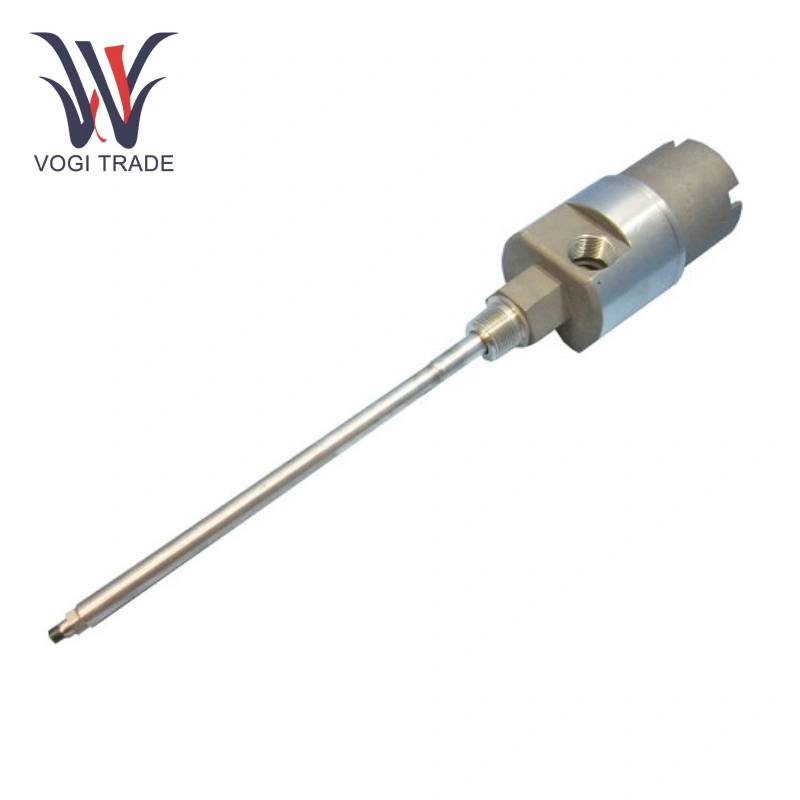

Brand: Bently Nevada Description: Proximity Probe Housing Assemblies Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 24701-16-10-00-083-03-02 Proximity Probe Housing Assembly for externally mounted proximity probes with 3300 XL 8mm probes. Assembly includes screw-on dome cap, threaded conduit connection port, probe sleeve of specified length, O-ring, reverse-mount probe, thread seal, optional conduit fittings, and insulation adapter.
|
Manufacture |
Bently Nevada |
|
Model Number |
24701-16-10-00-083-03-02 |
|
Ordering Number |
24701-16-10-00-083-03-02 |
|
Catalog |
- |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
20*20*8CM |
|
Packing Dimension |
25*25*10CM |
|
Weight |
2 kg |
Product Overview
Cable Length: Probe cable length is 1.0 m (39 in).
Probe Sleeve Length: Probe penetration length is 8.3 in (211 mm).
Accessories: Includes a 3/4-14 NPT plug, a 3/4-14 to 1/2-14 NPT reducer, and a cable gland with cable gland clamp. It accommodates cable sizes from 1/8 to 3/16 in, 1/4 to 5/16 in, and 5/16 to 3/8 in.
Mounting Thread: 3/4-14 NP.
Ingress Protection: Meets CSA explosion-proof standards.
Product Features
Rugged and durable: Bently Nevada 24701-16-10-00-083-03-02 uesd stainless steel housing offers excellent corrosion and impact resistance.
Safe and reliable: Bently Nevada 24701-16-10-00-083-03-02 compliant with CSA explosion-proof standards, it's suitable for use in hazardous areas. Its high level of protection effectively protects against dust and water.
Applications
Petrochemical Industry: Bently Nevada 24701-16-10-00-083-03-02 used for shaft displacement and vibration monitoring of key equipment such as compressors and pumps in flammable, explosive, and highly corrosive chemical environments.
Power Industry: Bently Nevada 24701-16-10-00-083-03-02 used for shaft system monitoring of large equipment such as steam turbines and generators.
Metallurgical Industry: Bently Nevada 24701-16-10-00-083-03-02 used for vibration monitoring of equipment such as rolling mills and blast furnace fans.

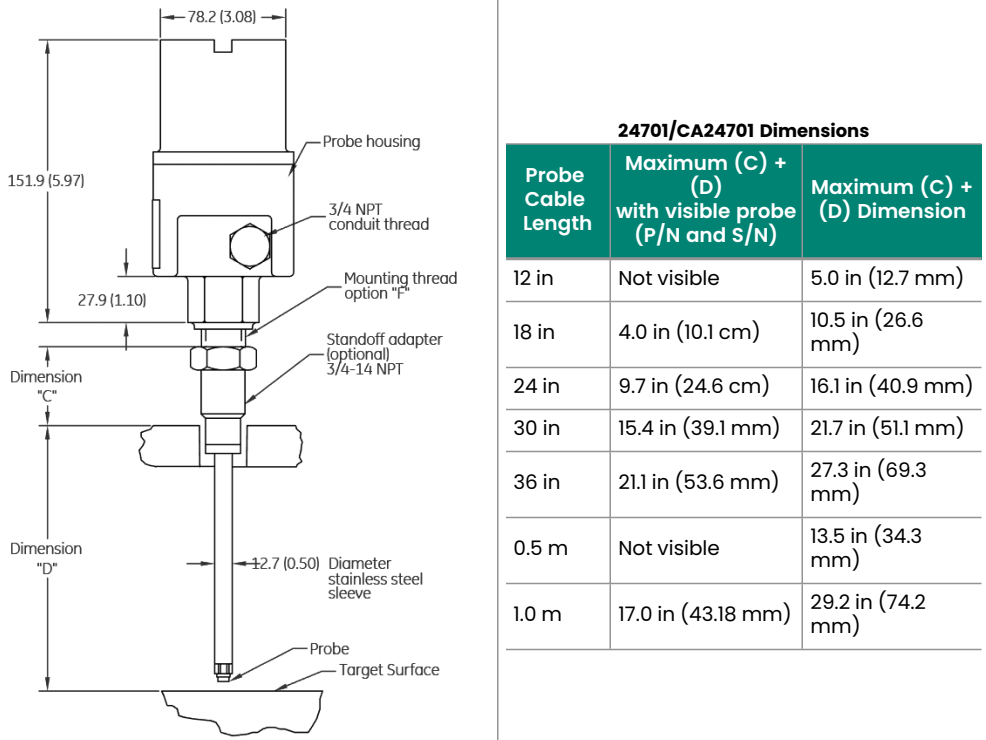

24701 assembly structure and dimensions
Notes
When using this model, please note the following:
Sleeve Support: Penetration length (C + D) is 211 mm < 300 mm. If the length exceeds 300 mm in the future, a sleeve support must be added to prevent resonance.
Installation Recommendations:
Use 3/4-14 NPT thread installation (FF=02), ensuring full thread engagement for increased rigidity.
Accessories (EE=03) must match the cable size.
Explosion-proof Applications: This model is based on the 24701, not the CA version.
Probe Maintenance: The probe cable is 1.0 meter long. Ensure there is no excessive bending or stretching during installation.
