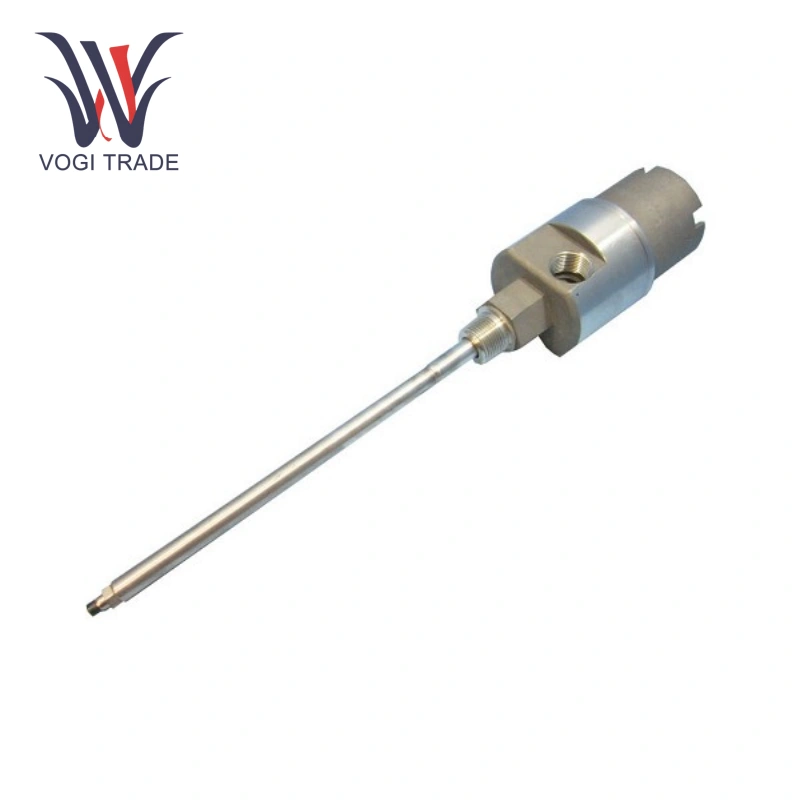

Brand: Bently Nevada Description: Proximity Probe Housing Assemblies Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 24701-16-10-00-090-03-02 is a proximity probe housing assembly for rotating machinery monitoring. Designed specifically for the 3300 XL 8mm probe, it consists of a housing body with threaded ports, a screw-on dome cap, a probe sleeve of specific length, an O-ring, a reverse-mount proximity probe, thread seals, optional conduit fittings, and an optional standoff adapter.
|
Manufacture |
Bently Nevada |
|
Model Number |
24701-16-10-00-090-03-02 |
|
Ordering Number |
24701-16-10-00-090-03-02 |
|
Catalog |
24701 |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
20*20*8CM |
|
Packing Dimension |
25*25*10CM |
|
Weight |
2 kg |
Product Overview
Probe Compatibility: Compatible with 3300 XL 8mm probes.
Probe Cable Length: 1.0 m (39 in).
Probe Penetration Depth: 9.0 in.
Mounting Thread Size: 3/4 - 14 NPT.
Accessory Configuration: Includes a 3/4 - 14 NPT plug, a 3/4 - 14 to 1/2 - 14 NPT reducer, and a cable gland with cable gland for 1/8 to 3/16 inch, 1/4 to 5/16 inch, and 5/16 to 3/8 inch cable sizes.
Material: Body is stainless steel.
Product Features
Bently Nevada 24701-16-10-00-090-03-02 have unique design allows external access to the probe and cable, allowing for gap adjustment and probe replacement without disassembling the device.
Bently Nevada 24701-16-10-00-090-03-02 achieving CSA Type 4 protection, it effectively protects against dust and splash water, making it a reliable solution for the harsh environmental conditions of industrial sites.
Applications
Bently Nevada 24701-16-10-00-090-03-02 suitable for monitoring shaft vibration, displacement, and other parameters in equipment such as centrifugal compressors, pumps, and steam turbines.
Bently Nevada 24701-16-10-00-090-03-02 can be used in generators and steam turbines to monitor shaft operating status in real time and promptly identify potential faults.
Bently Nevada 24701-16-10-00-090-03-02 in large equipment such as rolling mills and continuous casting machines, it can monitor vibration and displacement in key areas.
Bently Nevada 24701-16-10-00-090-03-02 uesed for equipment such as wind turbines and gas turbines, monitoring operating parameters provides data support for equipment reliability assessment and maintenance planning.
Bently Nevada 24701-16-10-00-090-03-02 applicable to various rotating machinery, it helps companies understand equipment operating conditions and plan maintenance plans accordingly.
Mechanical and Dimensional Characteristics
Case Dimensions (See Table 1):
Diameter: 78.2 mm (3.08 in)
Height: 151.9 mm (5.97 in)
Probe Penetration Length Range: 1.0 in (25.4 mm) to 29.2 in (742 mm).
Image Reference:
