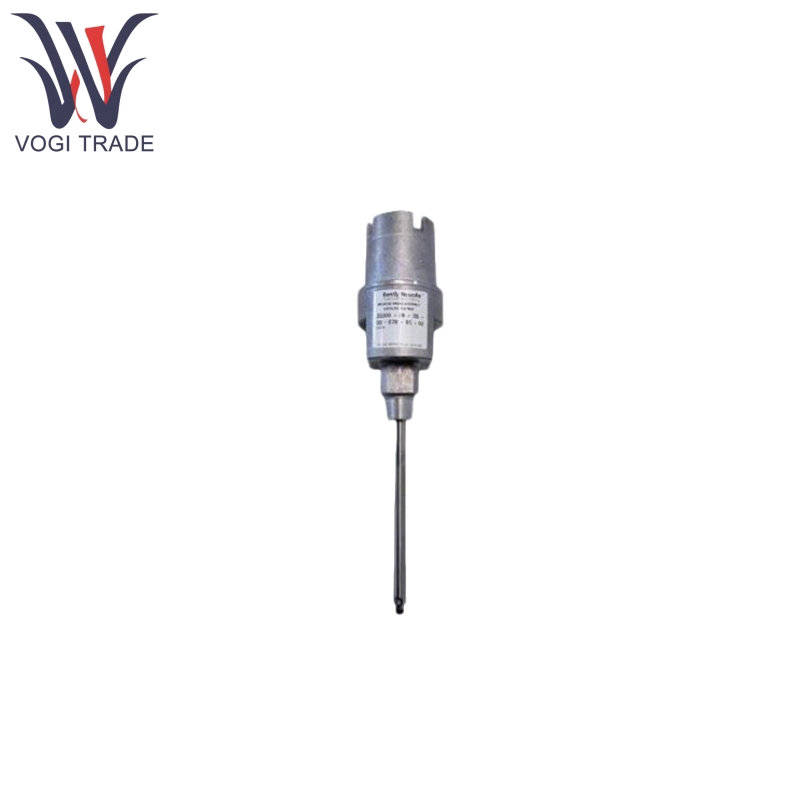

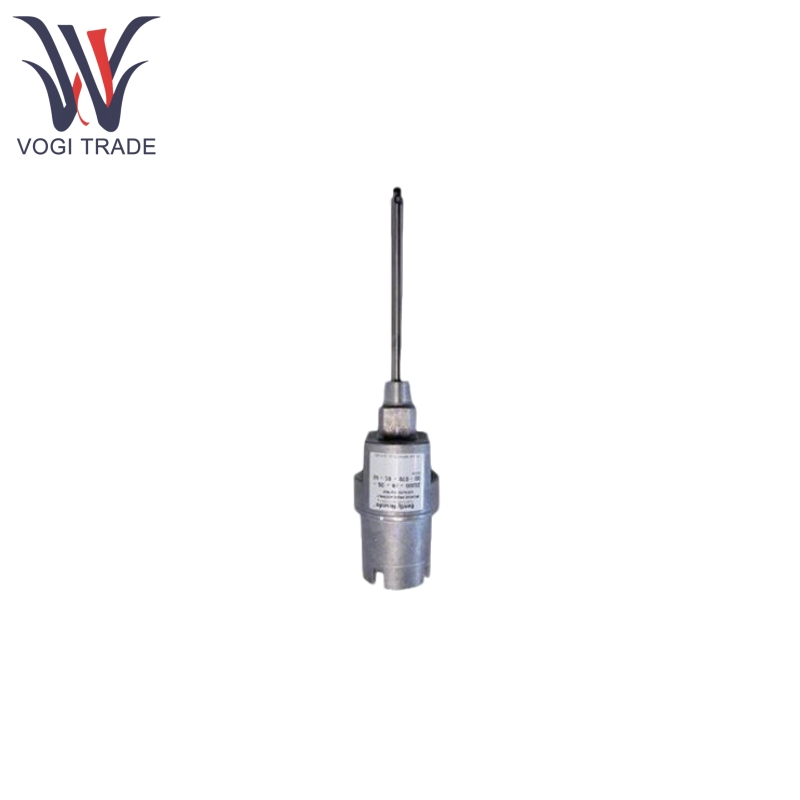

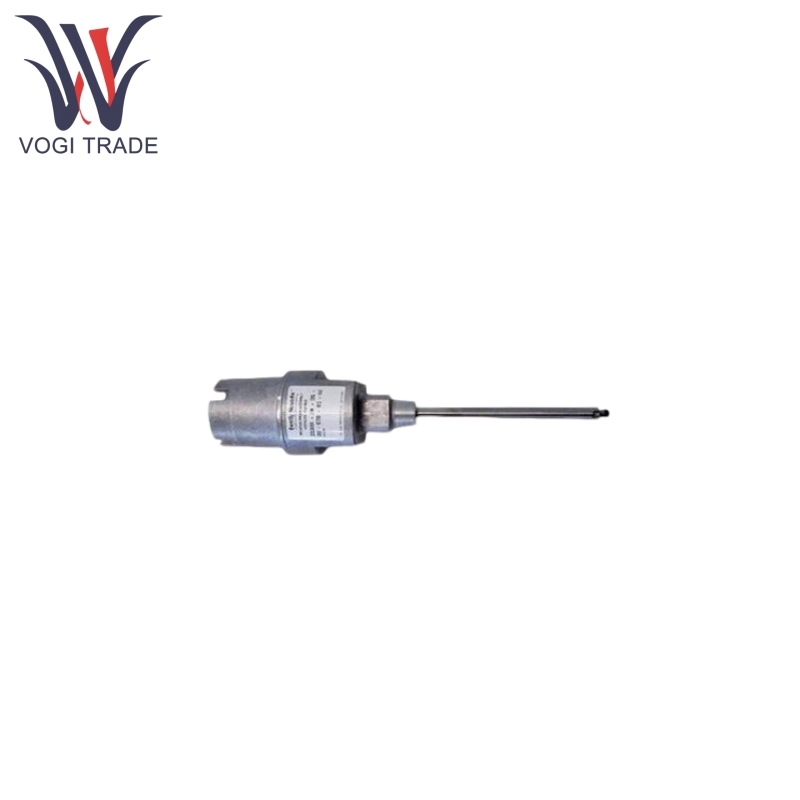

Brand: Bently Nevada Description: Proximity Probe Housing Assembly Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 24701-28-05-15-026-03-02 Proximity Probe Housing Assembly is mechanical condition monitoring system supports the mounting of items, used for an external fixed proximity probe, to protect the probe mechanically, seal it from environment, and to allow it to be installed in an installation structure.
|
Manufacture |
Bently Nevada |
|
Model Number |
24701 |
|
Ordering Number |
24701-28-05-15-026-03-02 |
|
Catalog |
3300 XL |
|
Country Of Origin |
United States (US) |
|
HS CODE |
9030900090 |
|
Dimension |
0.5m |
|
Weight |
1.8kg |
Product Features
Bently Nevada 24701-28-05-15-026-03-02 body is made of 303 stainless steel and sleeve is made of 304 stainless steel, which is highly corrosion resistant and suitable for humid, dusty and other harsh environments;
Bently Nevada 24701-28-05-15-026-03-02 is equipped with cable sealing clips (EE=03), which can be adapted to a variety of cables ranging from 1/8~3/8 inches, preventing the intrusion of liquids and dust, and has a built-in O-ring sealing structure to enhance the adaptability to the environment.
Bently Nevada 24701-28-05-15-026-03-02 supports external mounting with a bracket adapter (1.5in) to adjust the position of the probe relative to the device, and a 3/4-14 NPT mounting thread (FF=02) with a 5-7-turn all-thread design to enhance the strength and stability of the installation.
Bently Nevada 24701-28-05-15-026-03-02 has a built-in 3300 XL 8mm proximity probe (AA=28) that supports non-contact measurement of vibration and displacement with multi-region approvals (e.g. ATEX/IECEx).
Product Functions
The basic function of Bently Nevada 24701-28-05-15-026-03-02 as “a mounting carrier and protecting enclosure” for proximity probes is:
The unit is held in place by a bracket adapter and mounting threads and prevents the 3300 XL 8mm Proximity Probe from deflecting on outside of the machine and, separating from one another, thereby maintaining a consistent gap distance of the Proximity Probe from the target to be measured, i.e., the shaft system.
Its stainless steel of the shell and sealed, without wheather shield isolates dust, liquid, and chemical with the cable sealing clip to prevent the cable ends, its sealed up to IP67 and IP68.
It minimizes the effect of vibration and shock on the probe and positions the probe so that vibration or displacement is precisely sensed by the probe through eddy current effect (the induction of a The alternating magnetic field by a metallic target, such as the...target 66) and conducts the signal to the Proximitor sensor and monitor system.
Product Parameter
Environmental Specifications:
Applicable Probe Temperature Range (3300 XL 8mm): -51°C to +177°C (-60°F to +351°F, operating and storage)
CAUTION: Exposure of the probe to temperatures below -34°C may result in premature failure of the pressure seals and requires additional protection.
Mechanical Parameters:
Material: 303 stainless steel body, 304 stainless steel sleeve
Mounting Threads: 3/4-14 NPT (FF=02), 5-7 turns of threaded engagement length
Cable Seal Clamp Adaptor Sizes: 1/8 to 3/16 in, 1/4 to 5/16 in, 5/16 to 3/8 in
Overall Penetration Length (C+D): 4.1in (104.14mm). No casing support required (<300mm)
