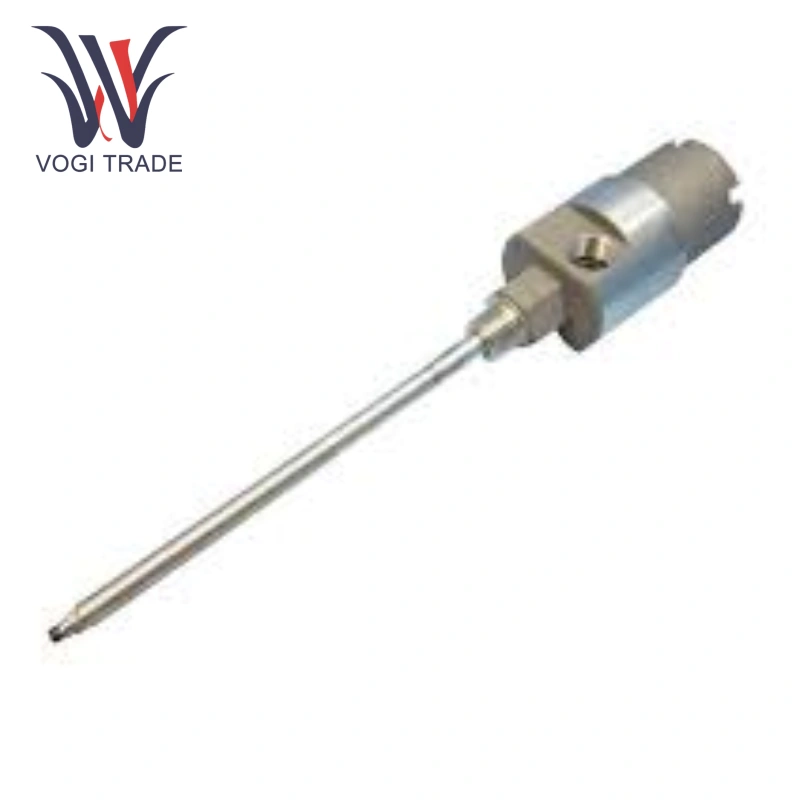

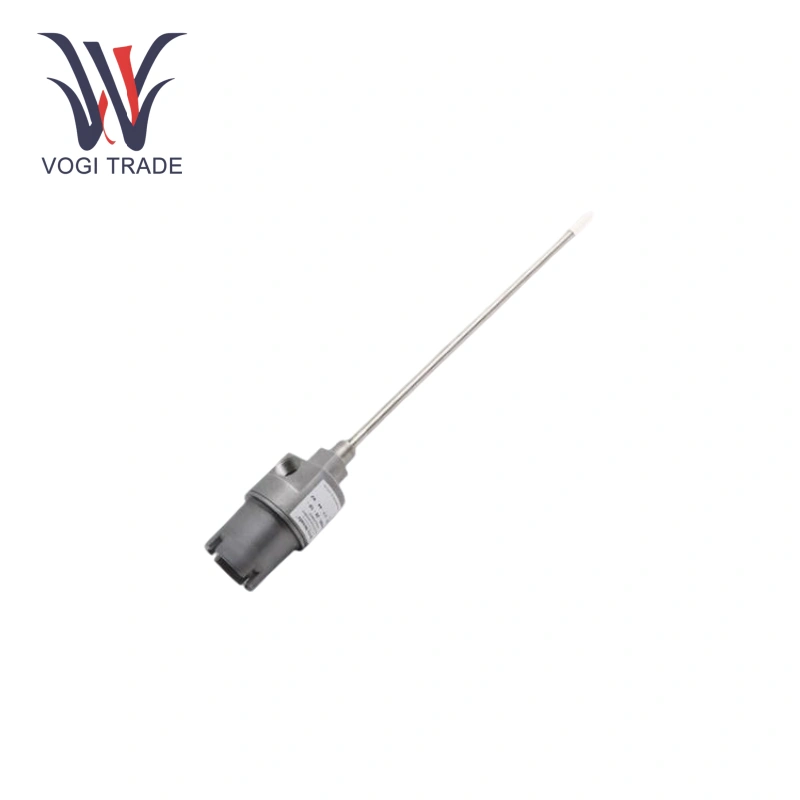

Bently Nevada 24701-34-05-00-060-03-02

Product Features

Product Type: Proximity Probe Housing Assembly

Applicable Probes: 3300 XL 8mm, NSV, and 11mm Proximity Probes

Housing Material: Stainless Steel

Probe Sleeve Length: 60mm

Mounting Thread: 3/4-14 NPT (matching threads required when using a spacer adapter)

Ingress Protection: CSA Type 4 (dustproof and splashproof)

Certification: CSA explosion-proof, API 670 compliant

Accessories: 3/4-14 NPT plug, 3/4-14 to 1/2-14 NPT reducer, cable gland (accommodates 3mm-8mm cables)

Operating Temperature: -40°C to +120°C

Product Features

Bently Nevada 24701-34-05-00-060-03-02 design allows external access to the proximity probe and cable, enabling direct gap adjustment and probe replacement, improving equipment availability.

Bently Nevada 24701-34-05-00-060-03-02 was passed CSA-certified as explosion-proof, it is suitable for hazardous areas and can be used safely in environments with flammable and explosive substances. It complies with CSA Type 4 standards and offers excellent protection against dust and water splashes.

Bently Nevada 24701-34-05-00-060-03-02 compatible with various 3300 XL Series proximity probes, it offers a wide range of applications through a wide range of accessory options and mounting thread sizes.

Applications

Petrochemical Industry: Bently Nevada 24701-34-05-00-060-03-02 used in equipment such as compressors, pumps, and reactors, monitoring displacement and vibration of key components to ensure the continuity and safety of chemical production processes.

Power Industry: Bently Nevada 24701-34-05-00-060-03-02 is suitable for equipment such as steam turbines and generators, monitoring radial and axial displacement, vibration, and other parameters of shafting to prevent downtime caused by abnormal equipment vibration.

Installation Notes

Casing Support: C + D = 5.2 inches < 300mm, no additional support is required. However, if the configuration is modified in the future, the support kit (Part Number 37948-01) must be added.

Penetration Length Adjustment: Option D (2.7 inches) has an adjustment range of ±0.5 inches (13mm). During installation, ensure the probe tip is precisely aligned with the target to avoid signal interference.

Hazardous Area Applications: This configuration (A = 34) supports optional hazardous area certification, but requires a certified proximitor and extension cable. Otherwise, it is suitable for non-hazardous areas only.

Temperature Warning: Avoid operation below -34°C to prevent seal failure. Storage temperatures below -51°C are acceptable, but prolonged exposure may damage the probe.

General Recommendations: Use an O-ring to ensure a tight seal.
