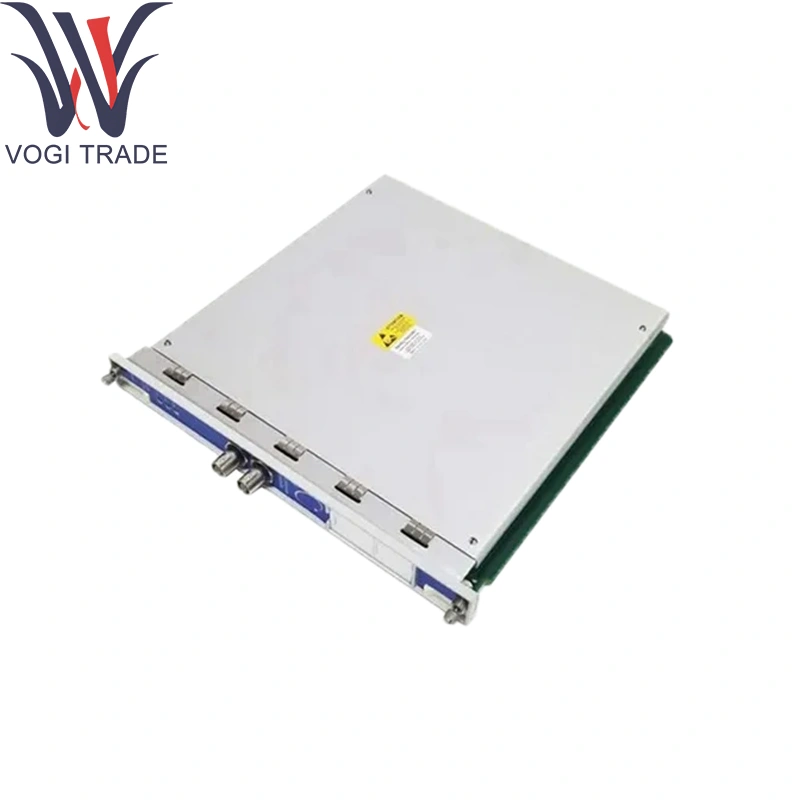

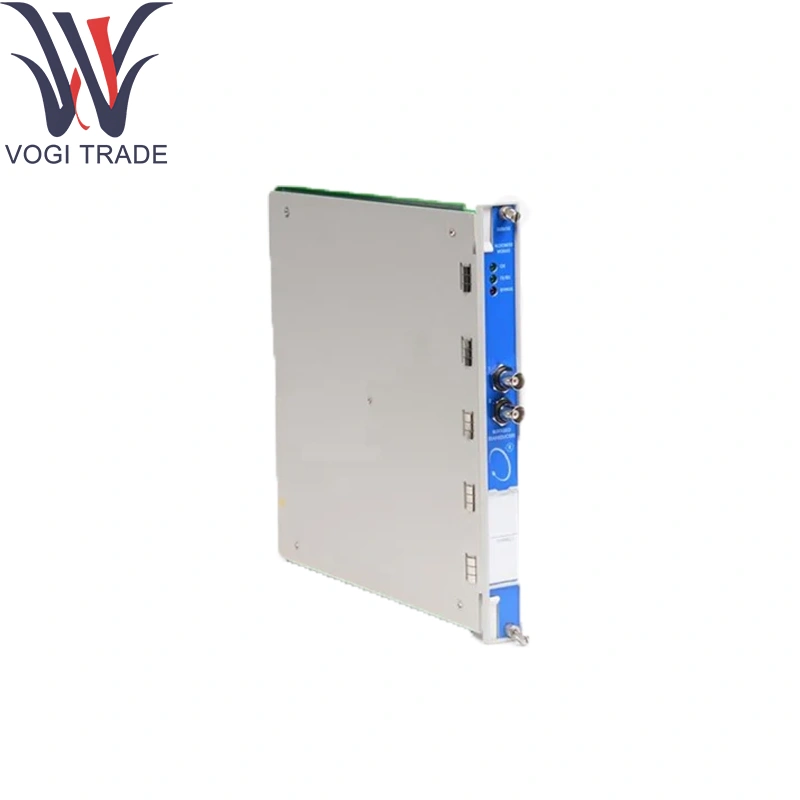

Bently Nevada 286566-01

Technical Parameters

Inputs:

2 × proximity-probe speed channels (0–50 V p-p analog) compatible with Bently Nevada 286566-01

2 × encoder or key-phasor channels (TTL/CMOS)

Speed Range: 0.1 Hz to 20 kHz for Bently Nevada 286566-01

Setpoints:

Two independent overspeed thresholds per channel, 0 – 120 % of nominal speed

Programmable via rack controller or front-panel interface

Response Time: < 1 ms from threshold crossing to trip output on Bently Nevada 286566-01

Trip Outputs:

2 × Form C relay contacts per channel

1 × common-trip Form C relay

Isolation: 1 kV channel-to-chassis

Power Consumption: 24 V DC (18–32 V DC), ≤ 3 W

Environmental:

Operating Temp: 0 °C to +70 °C

Storage Temp: –40 °C to +85 °C

Humidity: up to 95 % RH, non-condensing

Product function

High-Speed Monitoring: Continuously measures shaft speed via proximity probes or encoders using Bently Nevada 286566-01.

Hardware Trip Logic: Compares measured speed against two independent thresholds and actuates hardwired relay outputs for instantaneous turbine shutdown.

Redundancy & Voting: Optional dual-module or dual-channel voting configurations with Bently Nevada 286566-01 provide fail-safe protection.

Application Areas

Steam & Gas Turbines: Primary overspeed protection via Bently Nevada 286566-01 to prevent rotor burst.

Compressors & Pumps: High-speed machinery requiring immediate shutdown.

Generators & Turbo-Generators: Safeguarding against uncontrolled overspeed.

Marine & Aerospace Test Stands: Critical overspeed detection for safety.
