Bently Nevada 288055-01
  • Bently Nevada 288055-01 Bently Nevada 288055-01

Bently Nevada 288055-01

Brand: Bently Nevada
Description: 288055-01
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 19
Payment Term: T/T
Shipping Port: Shenzhen

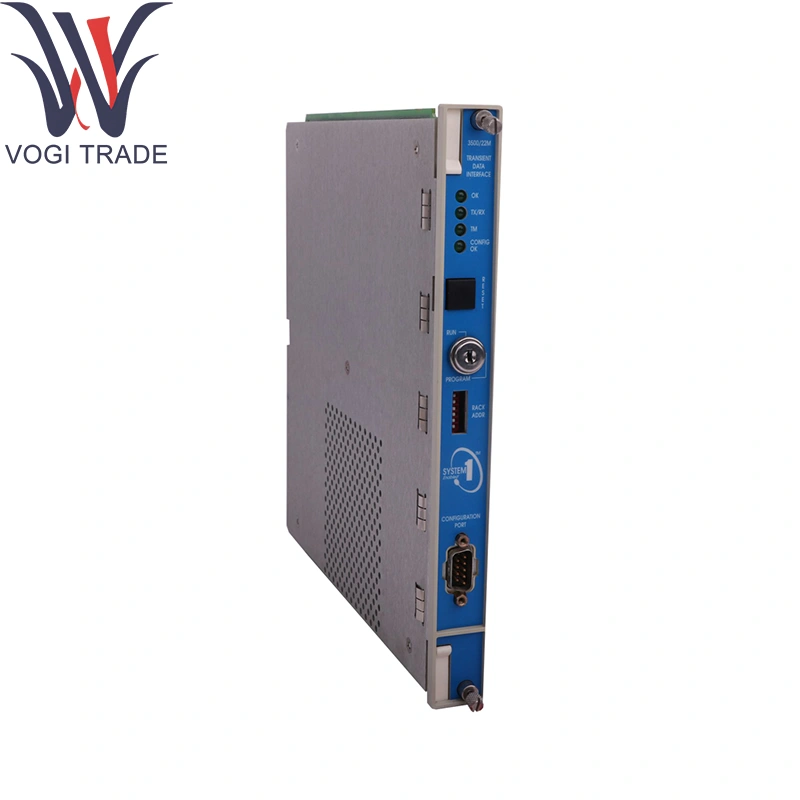

Bently Nevada 288055-01 captures and buffers high-bandwidth waveform data from up to four Proximitor® or seismic monitor channels during transient events (e.g., startups, shutdowns, rubs, or impacts).

Send Inquiry

Product Description

Manufacture
Bently Nevada
Model Number
3500/22M-01-01-00
Ordering Number
288055-01
Catalog
3500/22M
Description
Transient Data Interface
Country Of Origin
USA
HS CODE
85389091
Dimension
33*25*4 (CM)
Weight
2 kg

Ordering Information

3500/22M TDI Module and I/O

3500/22-AA-BB-CC

A: Transient Data Interface Type

01   Standard (use for standard monitoring applications)

B: I/O Module Type

01   10Base-T/100Base-TX Ethernet

02   100Base-FX (Fiber Optic) Ethernet

03   10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts

04   100Base-FX (fiber optic) Ethernet with gold-plated OK Relay contacts

C: Agency Approval

00   None

01  CSA/NRTL/C (Class 1, Division 2)

02   Multi (CSA, ATEX, IECEx)


Technical Parameters

Channels: 4 high-speed inputs (matched to Proximitor® or seismic outputs) for Bently Nevada 288055-01

Input Range: 0–50 V p-p (probe) or ±10 V (accelerometer)

Sampling Rate: Up to 100 kS/s per channel, simultaneous

Memory Buffer: 1 MB per channel (circular buffer for pre-/post-trigger data) in Bently Nevada 288055-01

Trigger Modes: Over-range, threshold-crossing, digital-bus-command, or external trigger input

Data Transfer: Ethernet 100 Mbps TCP/IP to host workstation or gateway

Isolation: 1 kV channel-to-chassis

Power Consumption: 24 V DC via backplane, ≤ 6 W

Environmental:

Operating Temp: 0 °C to +70 °C

Storage Temp: –40 °C to +85 °C

Humidity: up to 95 % RH, non-condensing


Product function

Event Capture: Continuously samples analog inputs into circular buffer via Bently Nevada 288055-01 and freezes data on trigger.

High-Resolution Recording: Provides precise, time-synchronized waveforms for dynamic-event diagnostics.

Non-Intrusive Operation: Works parallel with protection modules, ensuring no latency impact on trip logic.

Data Export: Streams captured records via Ethernet to analysis software.

Flexible Triggering: Supports multiple trigger sources and pre-/post-trigger record lengths.


Application Areas

Startup/Shutdown Analysis: Recording transient vibration signatures using Bently Nevada 288055-01 during torque ramps.

Rub & Impact Diagnostics: Capturing high-speed events when shaft rubs or impacts occur.

Modal Testing & Balancing: Providing time-waveform data for operational modal analysis.

Protective Trip Verification: Verifying trip-event waveforms.

Advanced Condition Monitoring: Enabling waveform-level analytics in industrial installations via Bently Nevada 288055-01.
