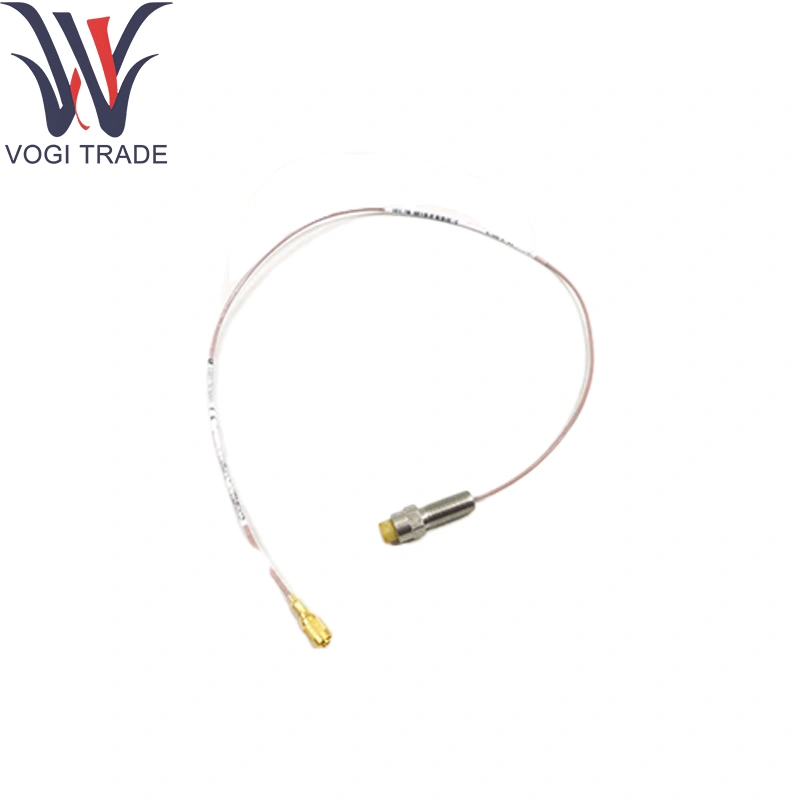

Bently Nevada 30004-02-12-18-02
  • Bently Nevada 30004-02-12-18-02 Bently Nevada 30004-02-12-18-02

Bently Nevada 30004-02-12-18-02

Brand: Bently Nevada
Description: 30004-02-12-18-02
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 15
Payment Term: T/T
Shipping Port: Shenzhen
Bently Nevada 30004-02-12-18-02 Used for non-contact shaft-displacement and vibration monitoring with simultaneous built-in switch action.

Send Inquiry

Product Description

Manufacture
Bently Nevada
Model Number
30004-02-12-18-02
Ordering Number
30004-02-12-18-02
Catalog
3300XL
Description
I/O Module Cover
Country Of Origin
USA
HS CODE
85389091
Dimension
1.8 m
Weight
0.1 kg

Technical Parameters

Linear Range: 2 mm (80 mils) full-scale

Sensitivity: 200 mV/mil (7.87 mV/µm) ± 5 % at –23 V DC excitation

Output Span: –2 V to –18 V over linear range

Switch Function: Internal comparator activates discrete output when gap exceeds preset threshold for Bently Nevada 30004-02-12-18-02 (set via matching Proximitor® module)

Frequency Response: DC to 10 kHz (–3 dB)

Operating Temperature: –35 °C to +125 °C (probe); –20 °C to +80 °C (cable)

Environmental Protection: IP65 when mated; stainless-steel housing


Product function

Delivers a proportional analog voltage representing shaft-to-probe clearance and provides an instantaneous switching signal when the clearance passes a preconfigured threshold—combining measurement and protection in the Bently Nevada 30004-02-12-18-02 sensor.


Application Areas

Turbine & Compressor Bearings: Continuous clearance surveillance plus over-travel alarm using Bently Nevada 30004-02-12-18-02

Pump & Motor Shafts: Vibration threshold detection with discrete trip output via Bently Nevada 30004-02-12-18-02

Generator End-Windings: Rub-detection and impact alarm in confined spaces

OEM Skid Packages: Compact sensor combining analog and switch functions for space-limited installations with Bently Nevada 30004-02-12-18-02

Test & Calibration Rigs: Dual-mode output for dynamic-event capture and safe shutdown applications

Hot Tags: Bently Nevada, 30004-02-12-18-02, I/O Module Cover
