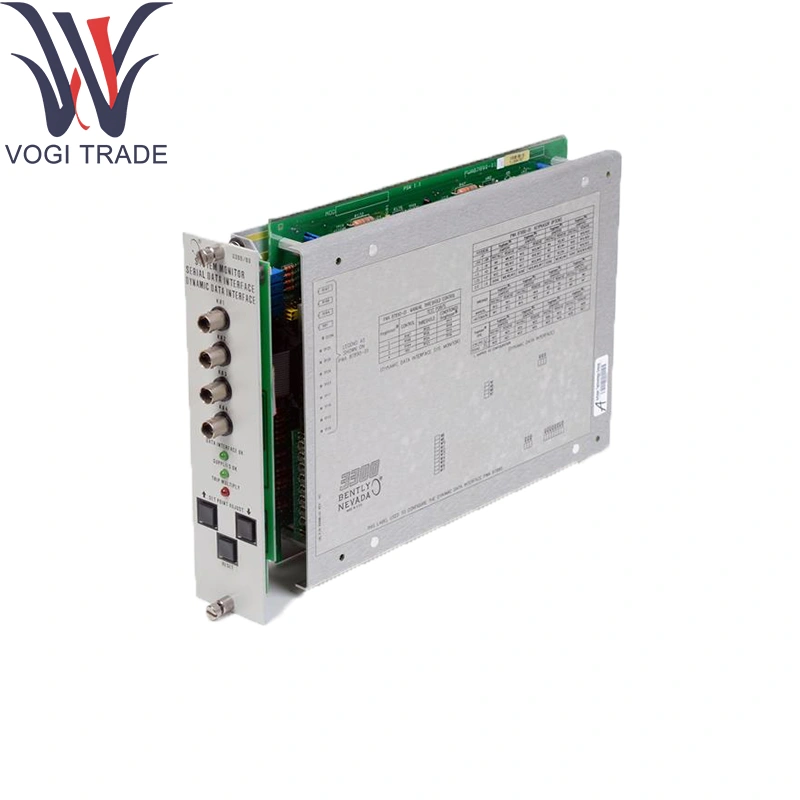

Brand: Bently Nevada Description: 3300/03-01-01 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 3300/03-01-01 Mounts in a 3300 Series rack to serve as the central system monitor, aggregating up to four Proximitor®-conditioned channels (proximity or vibration).
|
Manufacture |
Bently Nevada |
|
Model Number |
3300/03-01-01 |
|
Ordering Number |
3300/03-01-01 |
|
Catalog |
3300 system |
|
Description |
System Monitor Module |
|
Country Of Origin |
USA |
|
HS CODE |
8473309000 |
|
Dimension |
38*32*4 (CM) |
|
Weight |
0.7 kg |
Ordering Information
System Monitor
3300/03-AXX-BXX
A: Type
0 1 Standard
0 2 Serial Data Interface
0 3 Dynamic Data Interface and Serial Data Interface
B: Approvals Option
0 0 None
0 1 CSA/NRTL/C
0 2 ATEX self certification
Note: ATEX approval requires the monitor rack be installed in a weatherproof housing.
Upgrade Kit 143121
0 1 Basic to SDI upgrade
0 2 SDI to DDI upgrade
0 3 Basic to DDI upgrade
Technical Parameters
Inputs:
4 × conditioned proximity/vibration channels (0–50 V p-p)
Analog Outputs:
4 × 0–10 V or 4–20 mA (selectable per channel) on Bently Nevada 3300/03-01-01
Compliance: RL ≥ 500 Ω for current mode
Digital Alarms:
8 discrete Form A relay outputs (channel alarms & common fault) in Bently Nevada 3300/03-01-01
Filtering: Field-selectable high-pass (0.5–100 Hz) and low-pass (1–10 kHz) per channel
ADC Resolution: 16-bit ΔΣ, simultaneous sampling
Update Rate: 1 kHz per channel for analog; 100 Hz for alarms
Accuracy: ± 1 % full-scale on analog outputs
Isolation: 1 kV channel-to-chassis and output-to-chassis
Power: 24 V DC (18–32 V), ≤ 5 W
Operating Temp: 0 °C to +70 °C; Humidity to 95 % RH non-condensing
Product function
Data Aggregation: Collects Proximitor®-conditioned signals via Bently Nevada 3300/03-01-01 and consolidates clearance and vibration metrics.
Analog Scaling: Converts digital channel data into industry-standard analog loops for DCS/PLC integration.
Alarm Generation: Compares each channel to user-programmed setpoints, driving relay outputs for alerts.
Diagnostics: Monitors input-health (probe presence, cable continuity) and module self-health.
Application Areas
Turbine & Compressor Control Panels: Central monitoring of shaft clearance and vibration with Bently Nevada 3300/03-01-01 for protection and balance testing.
Process Machinery Hubs: Aggregating multiple probe signals into analog and discrete outputs.
OEM Skid Packages: Embedded system monitor providing turnkey analog loops and alarms in Bently Nevada 3300/03-01-01.
Retrofit Installations: Upgrading legacy 3300 racks with modern digital core monitoring.
Portable Test Rigs: Module extractable for bench-testing Proximitor® cards using Bently Nevada 3300/03-01-01.
