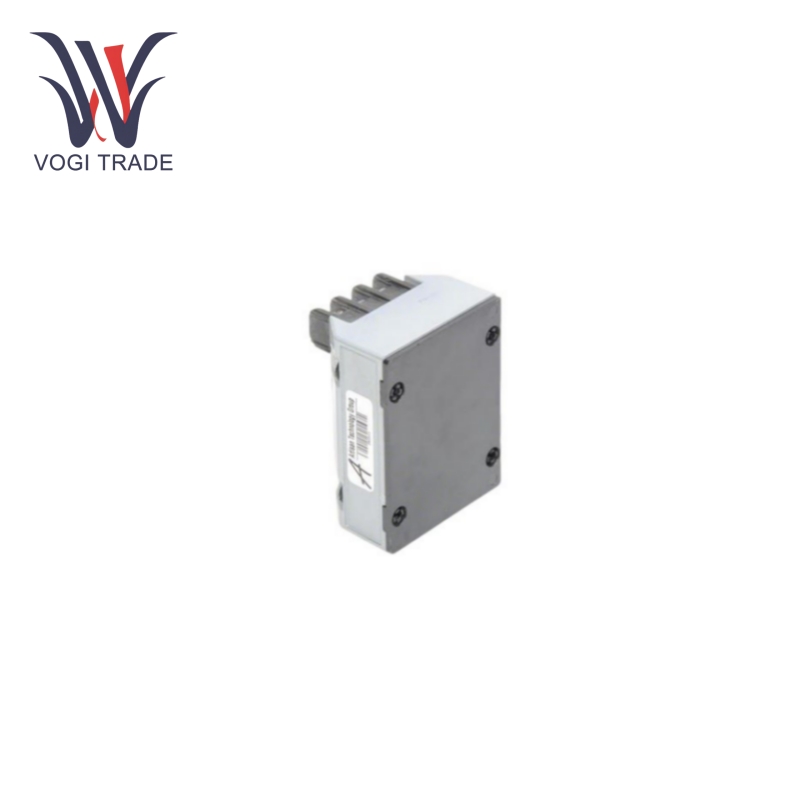

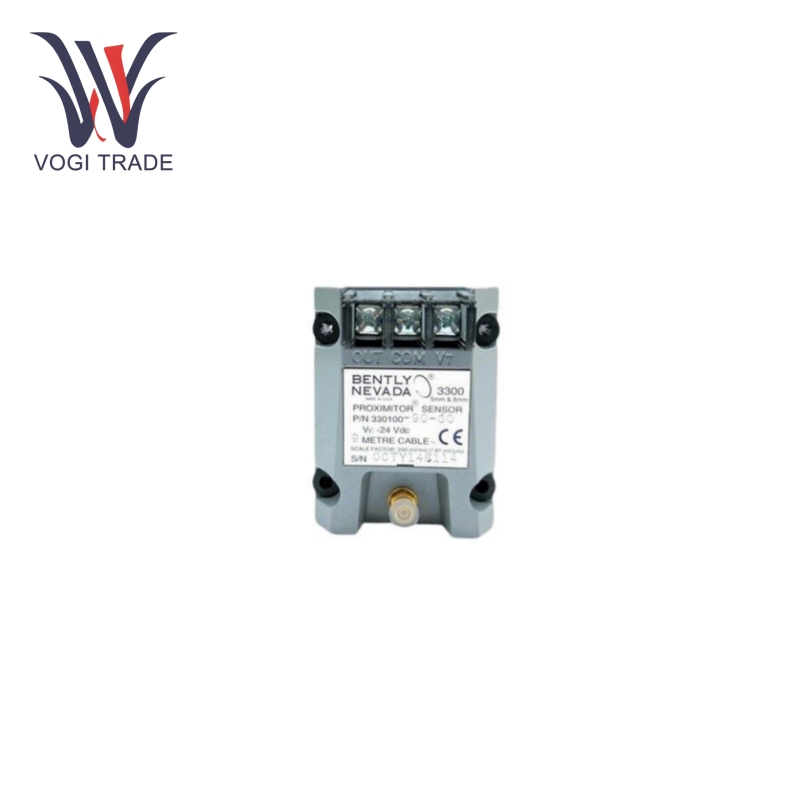

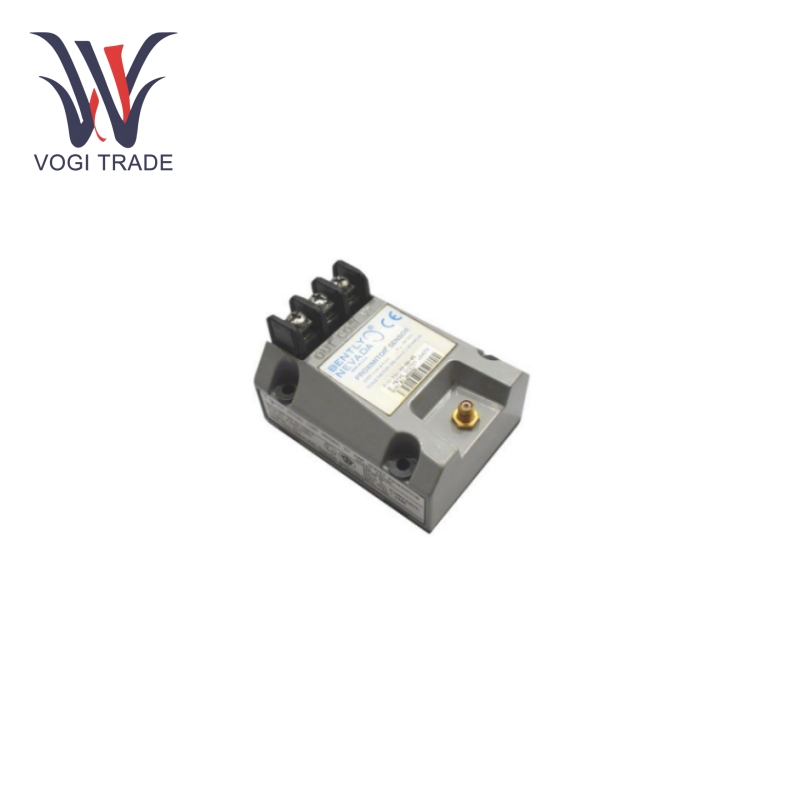

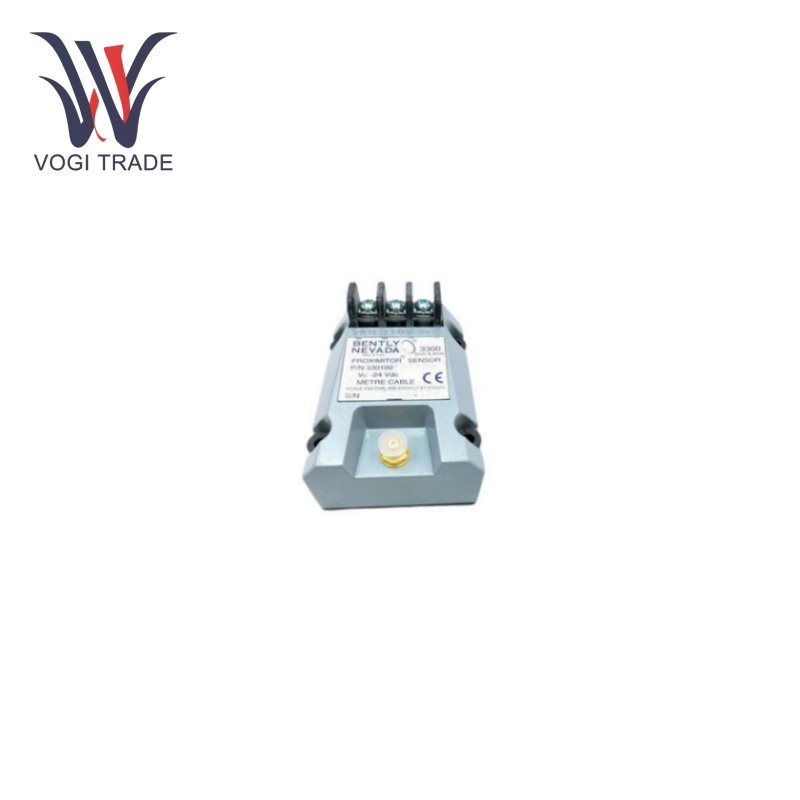

Bently Nevada 330100-90-00

1.Usage Parameters

Working voltage: 24VDC, providing stable power input for the sensor to ensure its normal operation.

System length: 9m, this length limits the connection distance range between the sensor and related equipment. In actual applications, it is necessary to make appropriate layout according to the specific installation and location of the equipment.

Scale factor: 200mv/mil (7.87mv/um), so that the sensor can convert small changes in distance into changes in corresponding electrical signal values.

2.Product Features

Accurate measurement: Bently Nevada 330100-90-00 is a proximity sensor that can accurately sense the distance changes between the measured object and the sensor. It can convert small distance changes into corresponding electrical signal changes, providing accurate data for further processing and analysis of the signal, thereby quickly detecting abnormal operation of the equipment.

Signal conversion and transmission: The sensor has an effective signal conversion function, which can convert physical quantities into standard electrical signals, and transmit the signals to the control or monitoring system through a stable transmission line, so that the transmitted signals have high stability and anti-interference ability, ensuring accuracy and integrity during the transmission process, thereby ensuring the reliability of the entire monitoring system.

Compatibility and adaptability: Bently Nevada 330100-90-00 has good compatibility with other series of Bently Nevada products, and can be used with different types of probes, preamplifiers and other equipment to achieve monitoring and measurement of various physical quantities such as vibration, displacement, speed, etc., with flexible configuration, reducing the cost of system upgrades and maintenance.

Fault diagnosis and early warning: The built-in fault diagnosis function can self-monitor the working status in real time. If a sensor failure is observed or an abnormal signal is evaluated, an alarm signal will be issued immediately to notify the relevant personnel. Further analysis and processing of the measurement data can be used to warn of possible equipment failures, so as to take remedial measures to avoid the expansion of equipment failures and improve the safety and reliability of equipment operation.

3.Application Scope

Power industry: In power plants, the shaft vibration, displacement, speed and other parameters of large rotating equipment such as turbines and generators can be monitored. By real-time monitoring of these key parameters, unexpected vibration and displacement changes of the equipment can be discovered in time, so as to diagnose and maintain the equipment, thereby ensuring the safe and stable operation of power equipment, preventing power outages that may occur due to equipment failure, and providing reliable power supply for the power system.

Petrochemical industry: Bently Nevada 330100-90-00 is widely used in the monitoring of various compressors, pumps, fans and other equipment in the process of petroleum refining and chemical production. One is used to monitor the shaft movement and vibration of the compressor; timely detect abnormal vibration to avoid production interruptions and safety accidents caused by equipment failure, and damage to the equipment. In addition, the speed and displacement of the stirring shaft in the chemical reactor can also be monitored to ensure the progress of the reaction process and improve product quality and productivity.

Steel industry: The monitor can diagnose the performance of the main equipment in steel production, including rolling mills, continuous casting machines, etc. The vibration and displacement monitoring of the rolling mill rollers can ensure the stability of the rolling process and the consistency of product quality. Crystallizer vibration monitoring can continuously optimize the vibration parameters of the crystallizer, maintain the best billet quality, reduce production costs, and reduce consumption.

Papermaking industry: The important parts of papermaking machines include drying rollers and pressure rollers. Vibration and displacement monitoring can timely detect roller imbalance or abnormal vibration, which can effectively extend the service life of the rollers, reduce equipment maintenance time and cost, and smoothly produce paper to ensure output and quality.

Cement industry: Monitor the main equipment for cement grinding and calcining operations, including large mills and rotary kilns. Monitor mill bearing vibration and shaft displacement to ensure normal operation and improve grinding efficiency. Monitor vibration and display
