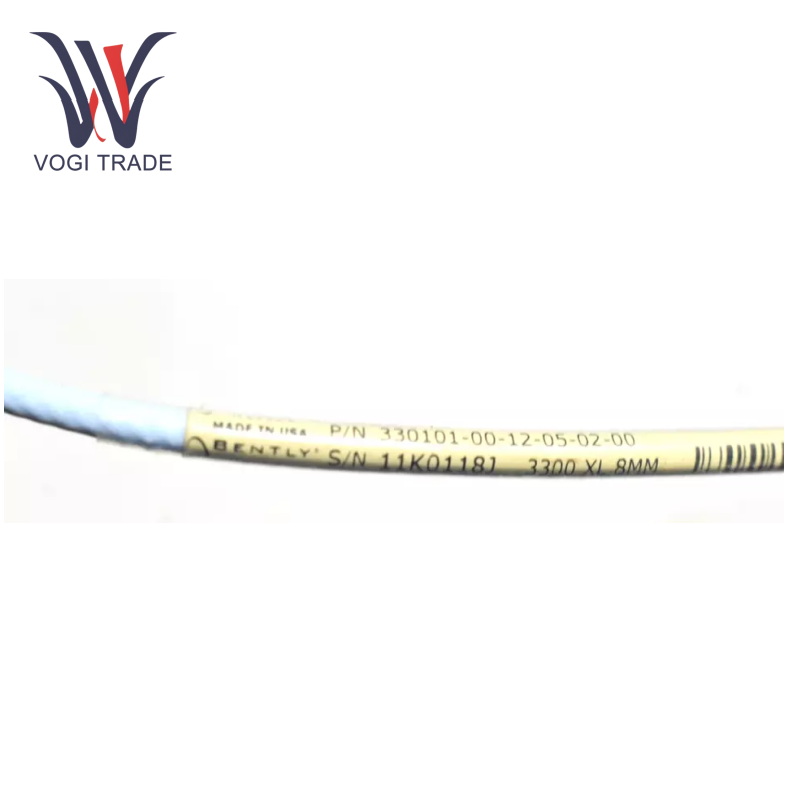

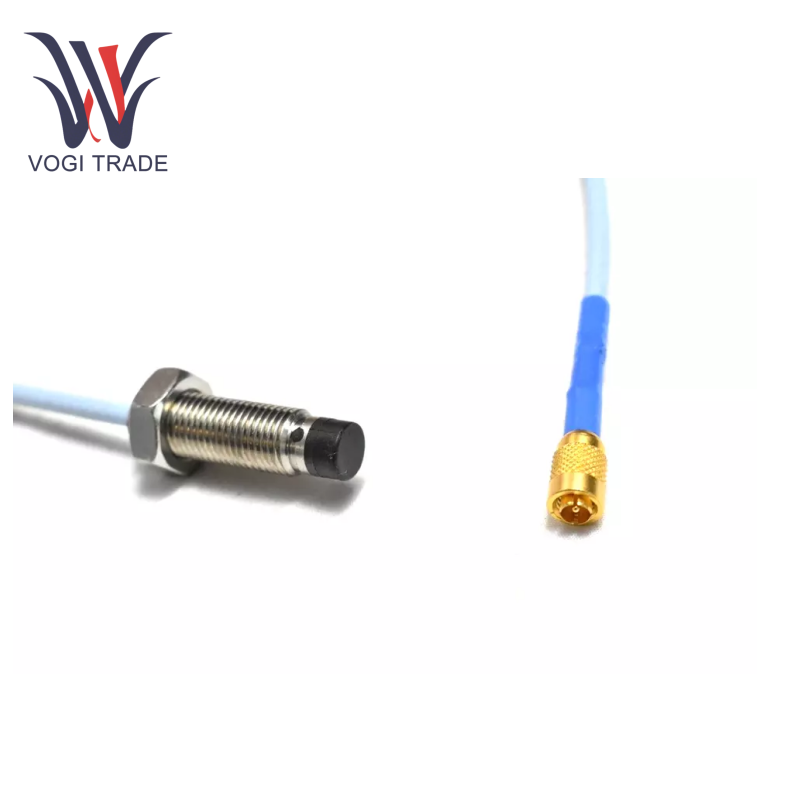

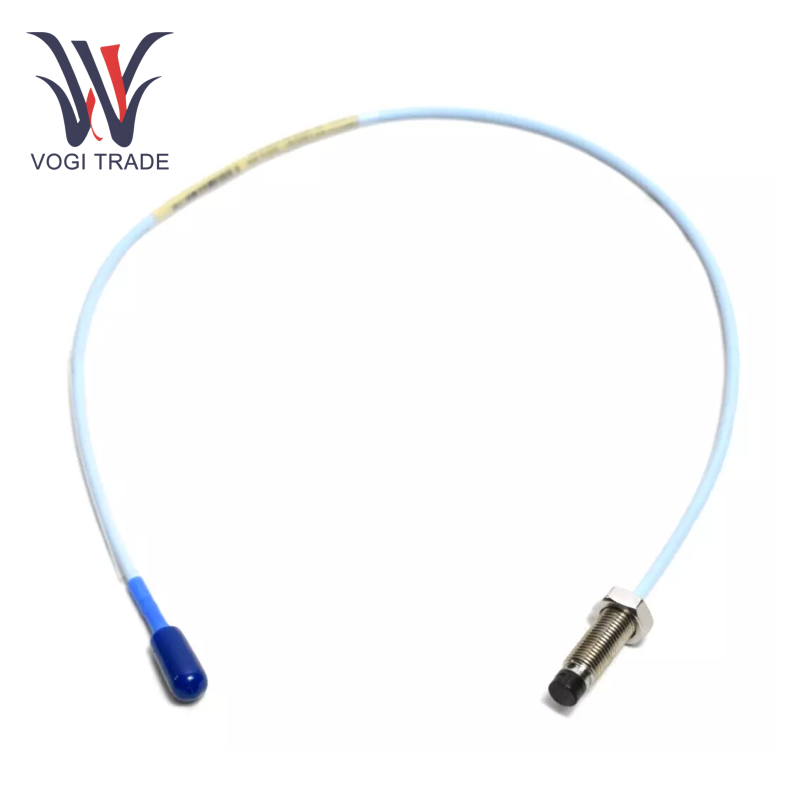

Brand: Bently Nevada Description: Proximity Probe Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330101-00-12-05-02-00 is a 3300 XL 8 mm eddy-current proximity probe designed for noncontact measurement of shaft vibration, displacement, and position on rotating machinery.
|
Manufacture |
Bently Nevada |
|
Model Number |
330101-00-12-05-02-00 |
|
Ordering Number |
330101-00-12-05-02-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9026801000 |
|
Dimension |
25*25*5CM |
|
Packing Dimension |
27*27*7CM |
|
Weight |
0.5kg |
330101-AA-BB-CC-DD-EE
330101-00-12-05-02-00
330101: 3300 xL8mm Probe, 3/8-24 UNF thread, without armor
00(Unthreaded length): 0.0 in
12(Overall Case Length): 12mm
05(Total Length): 0.5 meter (1.6 feet)
02(Connector and Cable-Type): Miniature coaxial click lock connector, standard cable
00(Agency Approval): Not required
Technical Parameters
Measurement range: ±2 mm (0.08 inches)
Linearity: ±0.5% full scale
Resolution: 0.1 micron
Operating temperature: -51°C to +177°C (-60°F to +351°F), optional extended temperature range (ETR) to 260°C (500°F)
Protection rating: IP65 (dustproof and waterproof)
Impact resistance: 50g
CableLoc technology: Bently Nevada 330101-00-12-05-02-00 provides 330 N (75 pounds) of tensile strength to prevent the cable from falling off.
FluidLoc option: optional liquid-proof design to prevent oil from leaking through the cable.
Mounting thread: 3/8-24 UNF standard thread.
Connector: Gold-plated ClickLoc coaxial connector, supports quick locking (only finger tightening).
Wide temperature range: Standard version covers -51°C to +177°C, ETR version supports extreme high temperature environments (such as gas turbines, compressors and other application scenarios).
Interference resistance: Improved RFI/EMI interference resistance design, Bently Nevada 330101-00-12-05-02-00 meets CE certification, and can work stably in fiberglass housing without additional shielding.
Industrial standard compliance: Meets API 670 (4th edition) standard, suitable for mechanical protection systems, ensuring measurement accuracy and stability meet the requirements of industries such as petrochemicals and power.
Optional accessories and extensions
Extension cable: such as 330130 series, supports extended signal transmission distance;
Proximitor sensor: Bently Nevada 330101-00-12-05-02-00 used in conjunction with the probe, providing signal processing and output functions;
ETR version: probe and cable for extended high temperature application scenarios.
