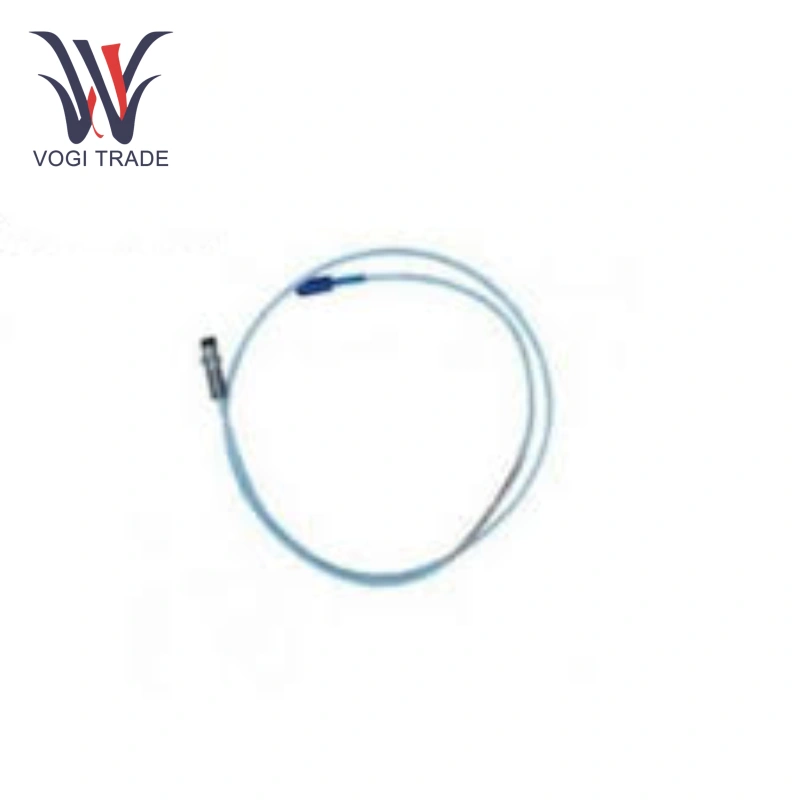

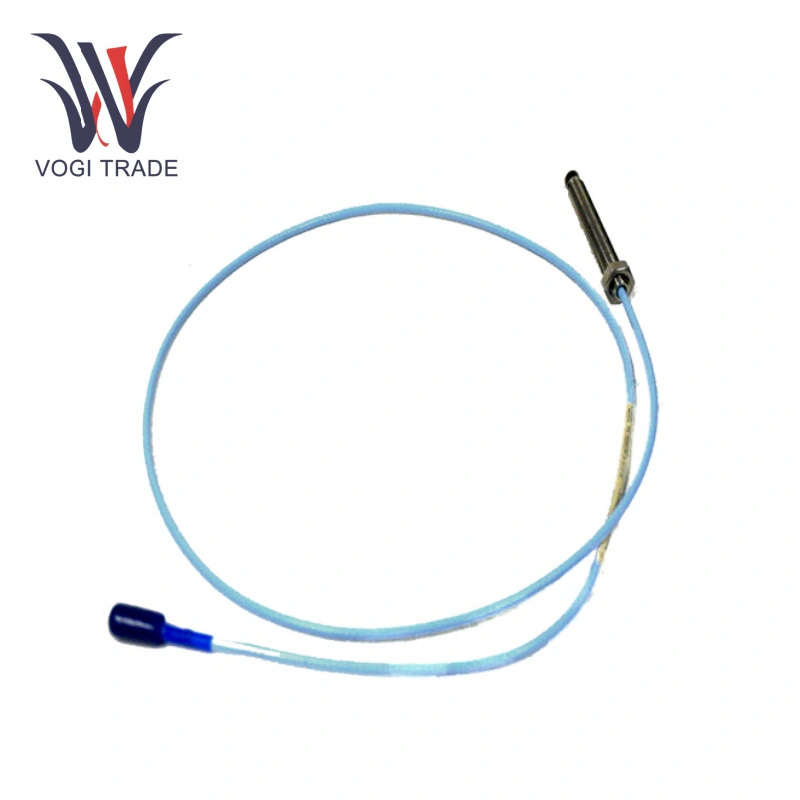

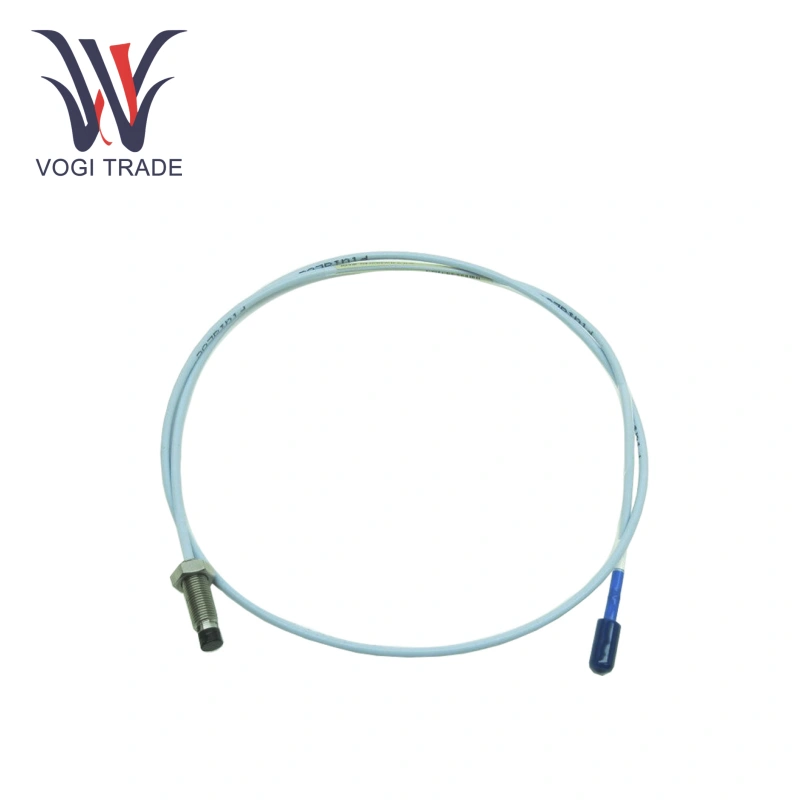

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330101-00-20-05-02-CN is a 3300 XL Series 8mm proximity eddy-current probe designed for monitoring key parameters of rotating machinery. Based on the eddy current effect, it accurately captures changes in the distance between the probe tip and the target surface without contacting the conductive surface being measured.
|
Manufacture |
Bently Nevada |
|
Model Number |
330101-00-20-05-02-CN |
|
Ordering Number |
330101-00-20-05-02-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
18*18*6CM |
|
Packing Dimension |
20*20*7CM |
|
Weight |
1.0 kg |
Product Overview
Dimensions and Weight:
Unthreaded Length: 0.0 in.
Casing Length: 2.0 in.
Total Length: 0.5 m.
Weight: Typical probe weight approximately 323 g/m.
Probe Tip Diameter: 8.0 mm (0.31 in.), encapsulated in polyphenylene sulfide (PPS) plastic for increased durability.
Material:
Probe Housing: AISI 303 or 304 stainless steel (SST) for corrosion resistance.
Connector: Gold-plated brass or gold-plated beryllium copper for corrosion resistance.
Cable: Standard 75Ω triaxial cable with fluorinated ethylene propylene (FEP) insulation (based on DD=02). FluidLoc option not available, therefore not oil-tight.
Product Features
High-Precision Measurement: Bently Nevada 330101-00-20-05-02-CN with a sensitivity of -200mV/mil and an accuracy of ±1% of full-scale, it accurately captures subtle changes in equipment vibration or displacement.
Environmentally Resistant: Bently Nevada 330101-00-20-05-02-CN operates stably over a wide temperature range of -52°C to +177°C, and its durable stainless steel housing resists harsh environmental factors such as dust and water splashes.
Easy Installation: Bently Nevada 330101-00-20-05-02-CN with the standard connector and cable design, along with the optimal probe size, facilitate installation on equipment, allowing for flexible installation locations based on specific monitoring needs.
Applications
Petrochemical: Bently Nevada 330101-00-20-05-02-CN installed on key equipment such as compressors and pumps, it monitors vibration and position changes during operation, enabling timely detection of potential equipment failures.
Industrial Manufacturing: Bently Nevada 330101-00-20-05-02-CN is suitable for motors, machine tools, fans, and other equipment. By monitoring vibration and displacement, it optimizes equipment operating parameters and improves machining accuracy.
Installation Instructions:
Gap Setting: The recommended radial vibration gap is 1.27 mm (50 mils), corresponding to a -9 VDC output.
Torque Control: The recommended housing mounting torque is 11.2 N·m (100 in·lbf); the maximum connector torque is 0.565 N·m (5 in·lbf). Finger-tighten (the connector will click).
Wiring: For field wiring, we recommend 0.2 to 1.5 mm² (16 to 24 AWG) three-conductor shielded cable, with a maximum length of 305 meters.
