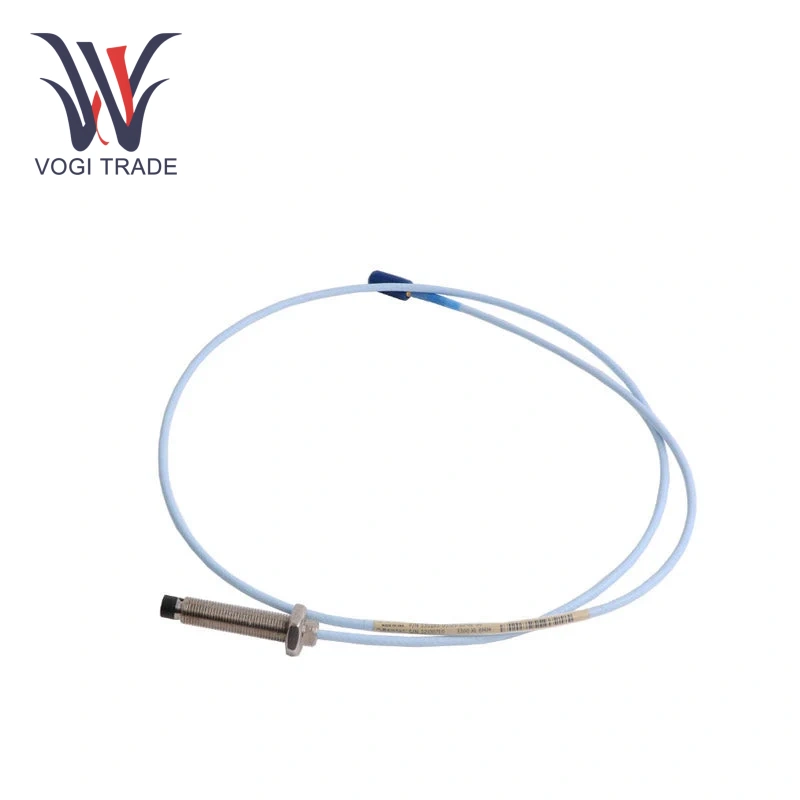

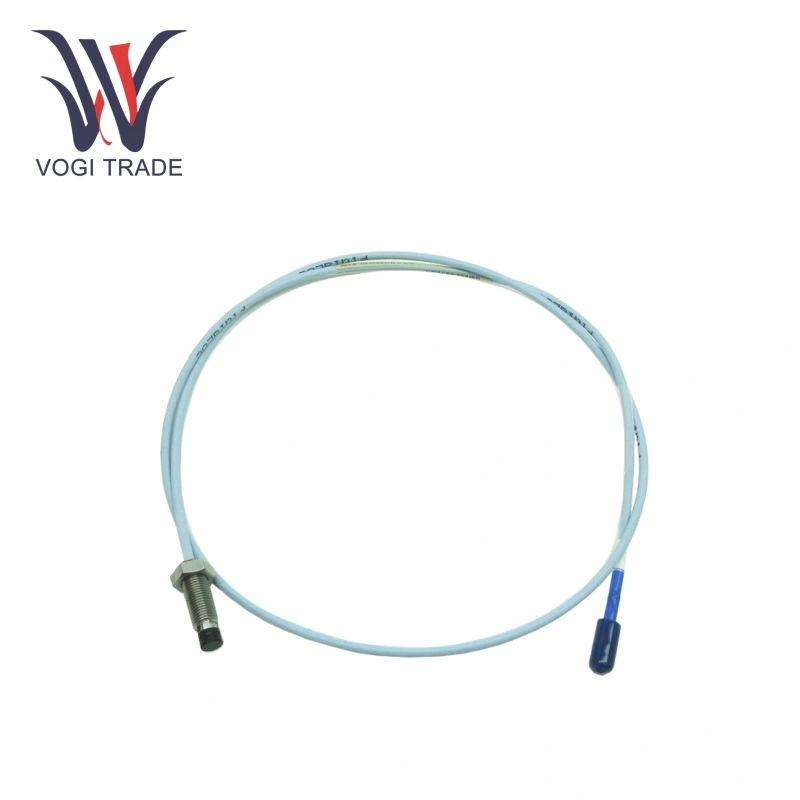

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330101-00-27-50-02-CN is a 3300 XL Series 8mm Proximity Probe, a key component in a sensor system for accurately measuring vibration and displacement on rotating machinery. The system consists of the 3300 XL 8mm probe, an extension cable, and a 3300 XL Proximitor Sensor.
|
Manufacture |
Bently Nevada |
|
Model Number |
330101-00-27-50-02-CN |
|
Ordering Number |
330101-00-27-50-02-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
18*18*6CM |
|
Packing Dimension |
20*20*7CM |
|
Weight |
1.0 kg |
Electrical Characteristics
Linear Range: 0.25–2.3 mm (10–90 mils)
Recommended Gap: 1.27 mm (50 mils) for radial vibration measurements, corresponding to a -9 VDC output
Incremental Scale Factor (ISF): 7.87 V/mm ±5% (5-meter system, 0–45°C)
Mechanical Characteristics
Probe Material:
Probe Tip: Polyphenylene Sulfide (PPS)
Housing: AISI 303/304 Stainless Steel
Torque Limits:
Maximum Installation Torque: 33.9 N·m (300 in·lbf)
Recommended Torque: 11.2 N·m (100 in·lbf)
Product Features
High-Precision Measurement: Bently Nevada 330101-00-27-50-02-CN with a sensitivity of -200mV/mil and an accuracy of ±1% of full-scale, it accurately captures subtle changes in equipment vibration or displacement.
Environmentally Resistant: Bently Nevada 330101-00-27-50-02-CN operates stably over a wide temperature range of -52°C to +177°C, and its durable stainless steel housing resists harsh environmental factors such as dust and water splashes.
Easy Installation: Bently Nevada 330101-00-27-50-02-CN with the standard connector and cable design, along with the optimal probe size, facilitate installation on equipment, allowing for flexible installation locations based on specific monitoring needs.
Applications
Petrochemical: Bently Nevada 330101-00-27-50-02-CN installed on key equipment such as compressors and pumps, it monitors vibration and position changes during operation, enabling timely detection of potential equipment failures.
Industrial Manufacturing: Bently Nevada 330101-00-27-50-02-CN is suitable for motors, machine tools, fans, and other equipment. By monitoring vibration and displacement, it optimizes equipment operating parameters and improves machining accuracy.
Key Installation Requirements
Thread Engagement Limitations:
Maximum thread length ≤ 0.563 inches (3/8-24 thread). Exceeding this length may cause seizure.
Target Size Requirements:
Minimum Shaft Diameter: 50.8 mm (2 inches)
Recommended Shaft Diameter: 76.2 mm (3 inches) (to avoid scaling factor offset)
Connector Protection:
Connector protection cover (option -02) is not included. It is recommended to install a connector protection cover (e.g., accessories 03839410/03839420) for harsh environments.
