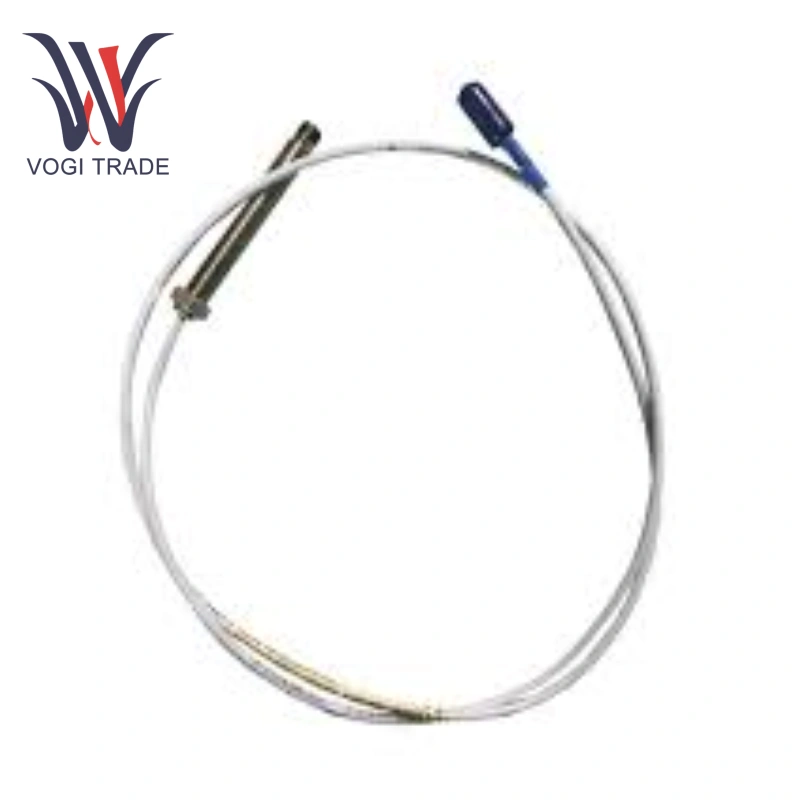

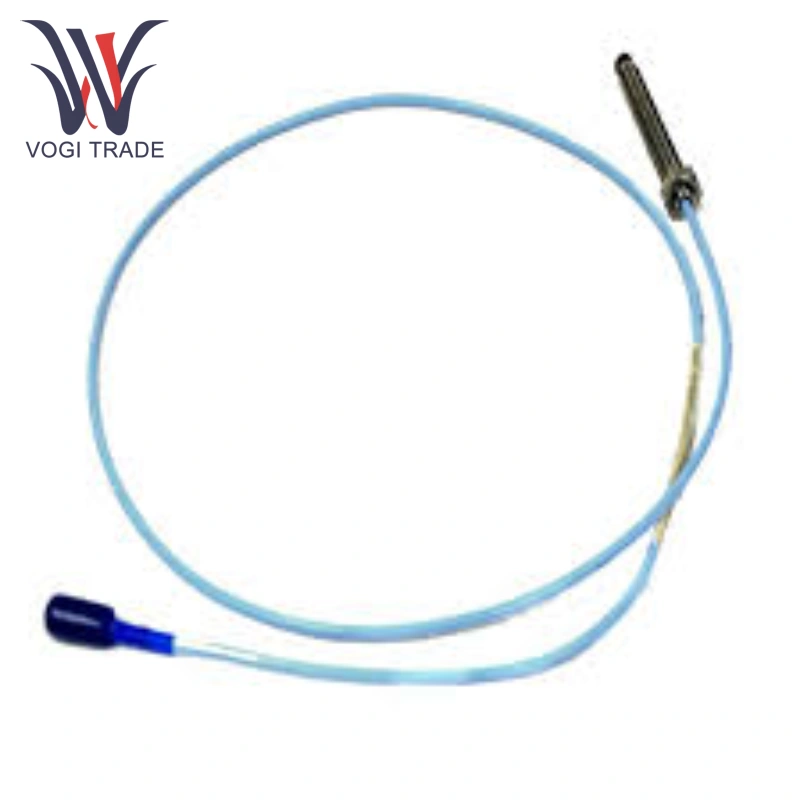

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330101-00-28-90-02-00 is a key component of the 3300 XL 8mm proximity probe system for industrial equipment health monitoring. The probe housing has an overall length of 28mm, giving the system a total length of 9.0 meters (29.5 feet).
|
Manufacture |
Bently Nevada |
|
Model Number |
330101-00-28-90-02-00 |
|
Ordering Number |
330101-00-28-90-02-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
18*18*6CM |
|
Packing Dimension |
20*20*7CM |
|
Weight |
1.0 kg |
Product Overview
Probe Type: 3300 XL 8mm Proximity Probe
Linear Range: 2 mm (80 mils), starting at 0.25 mm (10 mils), output range approximately -1 Vdc to -17 Vdc.
Incremental Scale Factor (ISF):
9-meter system: 7.87 V/mm (200 mV/mil) ±6.5% (including interchangeability error), tested from 0°C to +45°C.
Straight Line Deviation (DSL):
9-meter system: Less than ±0.152 mm (±6 mils) from 0°C to +45°C.
Frequency Response: 0 to 10 kHz (+0, -3 dB), supports field wiring lengths up to 305 meters.
Temperature Effects:
Probe temperature range: -52°C to +177°C (standard probe). Performance Drift: ±18% ISF drift and ±0.152 mm DSL drift at probe temperatures between -35°C and +120°C (requires Proximitor sensor operating at 0°C to +45°C).
Minimum Target Size: 15.2 mm diameter (flat target). A shaft diameter of at least 76.2 mm (3 inches) is recommended for accuracy.
Product Features
Accurate Measurement: Bently Nevada 330101-00-28-90-02-00 with high linearity and sensitivity enable precise measurement of minute displacements and vibrations of equipment components, providing reliable data for evaluating equipment operating conditions.
Environmentally Resilience: Bently Nevada 330101-00-28-90-02-00 use probe tip is made of wear-resistant and chemically resistant PPS, while the stainless steel housing is impact- and corrosion-resistant, ensuring stable operation in harsh industrial environments.
Reliable Connection: Bently Nevada 330101-00-28-90-02-00 use micro coaxial Click Loc connector provides a secure connection, effectively reducing looseness and poor contact during signal transmission, ensuring accurate monitoring data.
Applications
Power Industry: Bently Nevada 330101-00-28-90-02-00 used in steam turbines, generators, and other equipment to monitor radial vibration and axial displacement of shafts, ensuring stable operation of power equipment.
Petrochemical Industry: Bently Nevada 330101-00-28-90-02-00 is suitable for compressors, pumps, and other equipment, monitoring vibration in real time to promptly identify potential equipment failures.
