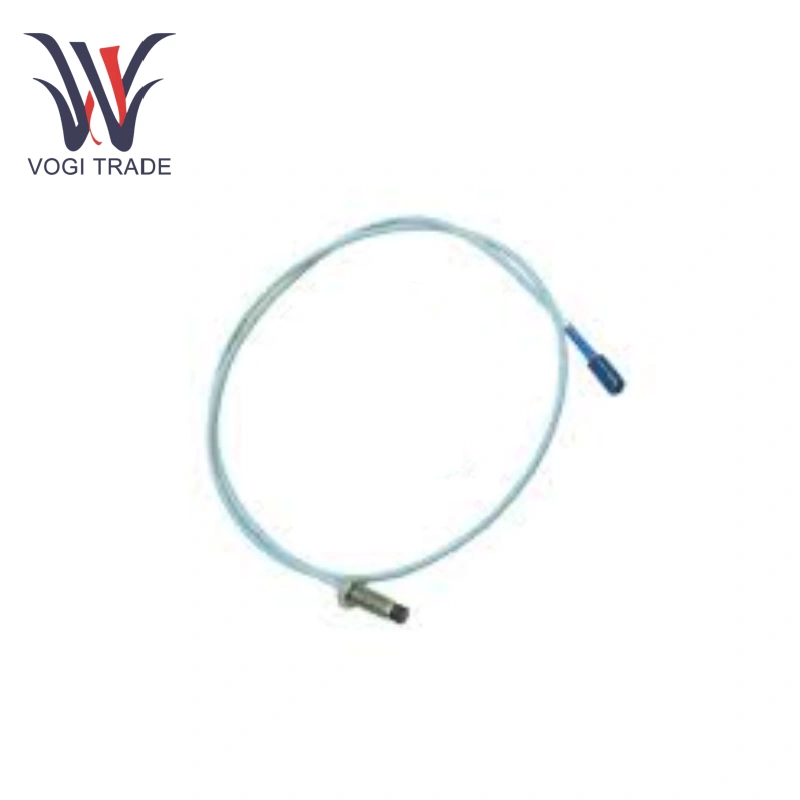

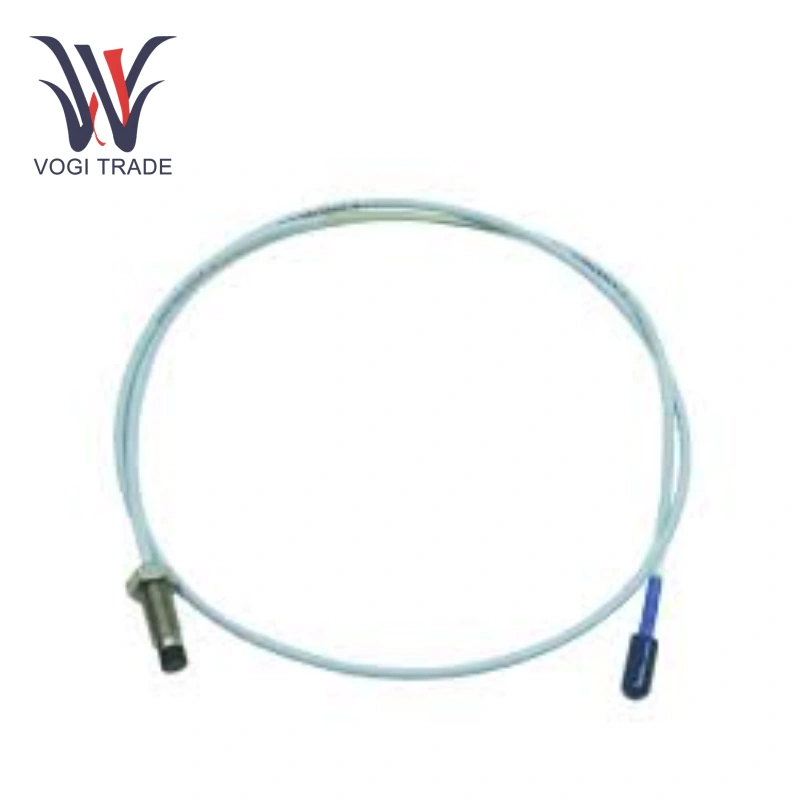

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330101-00-36-10-02-CN is a key component of the 3300 XL 8mm proximity probe system for industrial equipment health monitoring. The probe housing has an overall length of 28mm, giving the system a total length of 9.0 meters (29.5 feet).
|
Manufacture |
Bently Nevada |
|
Model Number |
330101-00-36-10-02-CN |
|
Ordering Number |
330101-00-36-10-02-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
18*18*6CM |
|
Packing Dimension |
20*20*7CM |
|
Weight |
1.0 kg |
Product Overview
Electrical Characteristics:
Linear Range: 2 mm (80 mils), starting 0.25 mm (10 mils) from the target surface, with an output range of approximately -1 Vdc to -17 Vdc. Both static (position) and dynamic (vibration) values can be directly measured.
Incremental Scale Factor (ISF): For a 1.0 m system (CC=10), the ISF is 7.87 V/mm (200 mV/mil) ±5%, including interchangeability error (tested at 0°C to +45°C).
Deviation (DSL): Less than ±0.025 mm (±1 mil) over the 0°C to +45°C range.
Frequency Response: 0 to 10 kHz, +0, -3 dB, supporting field wiring lengths up to 305 m.
Minimum Target Size: 15.2 mm (0.6 in) diameter (flat target). Recommended Gap Setting: -9 Vdc (approximately 1.27 mm or 50 mils) is recommended for radial vibration.
Mechanical Characteristics:
Probe Material: Polyphenylene sulfide (PPS) plastic tip, AISI 303 or 304 stainless steel (SST) housing. 8 mm probes offer a thicker housing for enhanced durability.
Cable Specifications: Standard 75Ω triaxial cable, FEP insulation (DD=02). Maximum Tensile Strength: 330 N (75 lbf) from probe housing to cable, 270 N (60 lbf) at connector.
Recommended Torque: Maximum torque for standard front-mounted probes (e.g., 330101) is 33.9 N·m, recommended torque is 11.2 N·m (100 in·lbf).
Temperature Range:
Operating and Storage: -52°C to +177°C (-62°F to +350°F).
Product Features
Accurate Measurement: Bently Nevada 330101-00-36-10-02-CN with high linearity and sensitivity enable precise measurement of minute displacements and vibrations of equipment components, providing reliable data for evaluating equipment operating conditions.
Environmentally Resilience: Bently Nevada 330101-00-36-10-02-CN use probe tip is made of wear-resistant and chemically resistant PPS, while the stainless steel housing is impact- and corrosion-resistant, ensuring stable operation in harsh industrial environments.
Reliable Connection: Bently Nevada 330101-00-36-10-02-CN use micro coaxial Click Loc connector provides a secure connection, effectively reducing looseness and poor contact during signal transmission, ensuring accurate monitoring data.
Applications
Power Industry: Bently Nevada 330101-00-36-10-02-CN used in steam turbines, generators, and other equipment to monitor radial vibration and axial displacement of shafts, ensuring stable operation of power equipment.
Petrochemical Industry: Bently Nevada 330101-00-36-10-02-CN is suitable for compressors, pumps, and other equipment, monitoring vibration in real time to promptly identify potential equipment failures.
