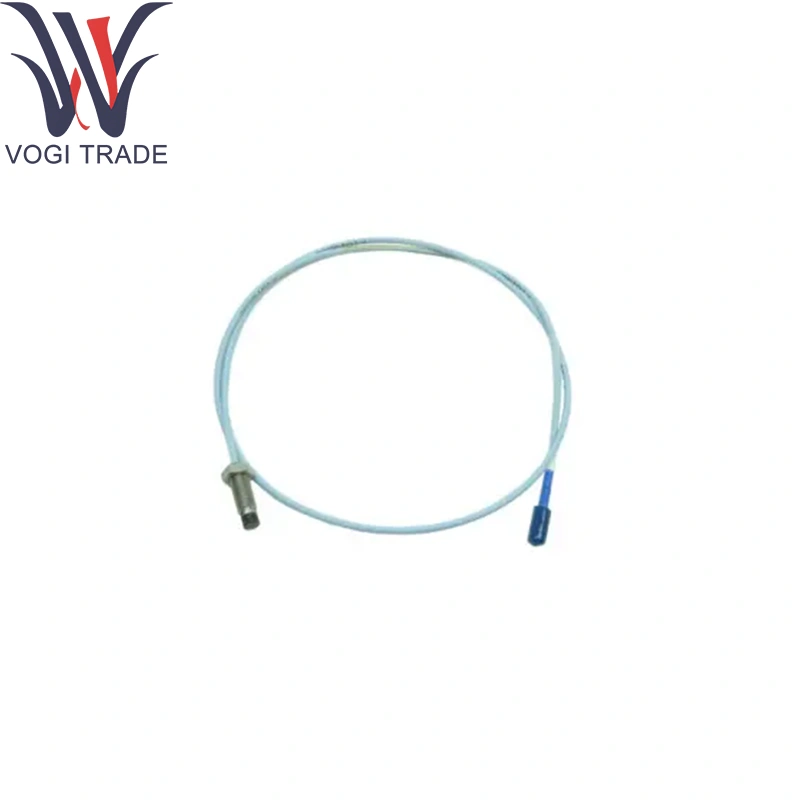

Brand: Bently Nevada Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330101-00-48-10-02-05 Provides precise, non-contact measurement of shaft clearance and vibration on rotating machinery where a longer probe nose is required for recessed or deep-pocket mounting—while cable runs remain relatively short and armor protection is unnecessary
|
Manufacture |
Bently Nevada |
|
Model Number |
330101-00-48-10-02-05 |
|
Ordering Number |
330101-00-48-10-02-05 |
|
Catalog |
3300 XL |
|
Description |
Proximity Probes |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
1 M |
|
Weight |
0.22 kg |
Ordering Information
330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor(2)
330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor(2)
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
30 3.0 meters (9.8 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
D: Connector and Cable-Type Option
01 Miniature coaxial ClickLoc connector with connector protector, standard cable
02 Miniature coaxial ClickLoc connector, standard cable
11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12 Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
Technical Parameters
Linear Range: 1.0 mm (40 mils) full-scale for Bently Nevada 330101-00-48-10-02-05
Sensitivity: 50 mV/µm (125 mV/mil) ± 5 % at –23 V DC excitation in Bently Nevada 330101-00-48-10-02-05
Output Span: –2 V to –12 V DC over linear range
Linearity: ± 1 % of full-scale
Frequency Response: DC to 10 kHz (–3 dB)
Operating Temperature: –35 °C to +125 °C (probe); –20 °C to +80 °C (PVC cable)
Environmental Seal: IP65 when mated to connector
Pressure Rating: Requires bulkhead gland or thermowell for pressurized applications
Product function
Bently Nevada 330101-00-48-10-02-05 converts minute air-gap variations between probe tip and rotating shaft into proportional AC voltage. The extended-nose design enables deep installation into housings, while unarmored impedance-matched cable via Bently Nevada 330101-00-48-10-02-05 maintains low-noise transmission to Proximitor® modules.
Application Areas
Steam & Gas Turbines: Deep-mounted clearance/rub detection using Bently Nevada 330101-00-48-10-02-05
Centrifugal Compressors & Pumps: Shaft-position feedback in recessed housings
Industrial Motors & Generators: Vibration monitoring in access-limited areas
OEM Skid Assemblies: Embedded extended-nose probes in packages featuring Bently Nevada 330101-00-48-10-02-05
R&D/Test Facilities: Flexible deep-pocket placement for lab/field testing
