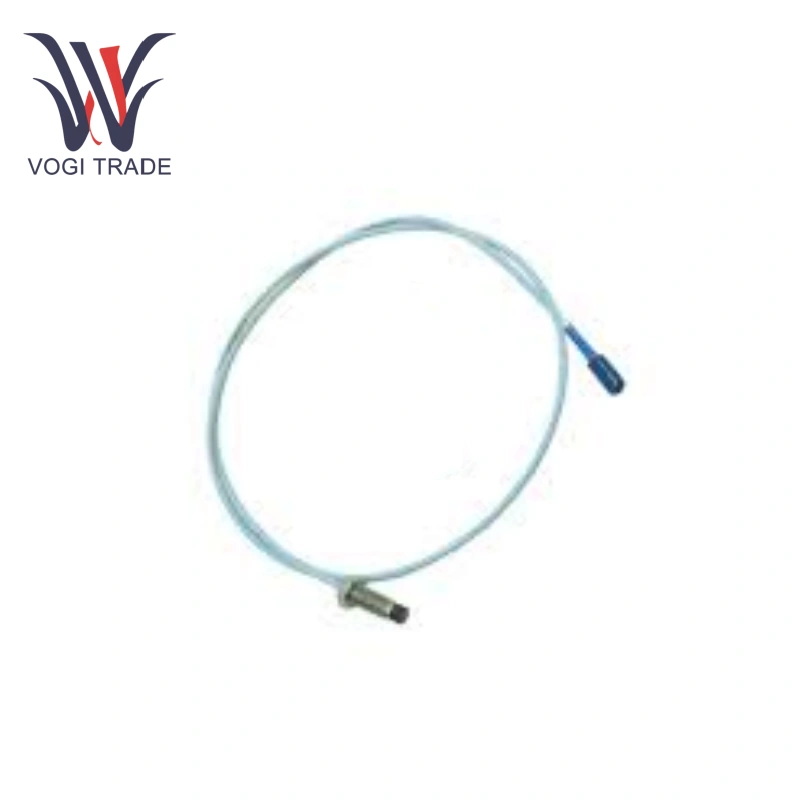

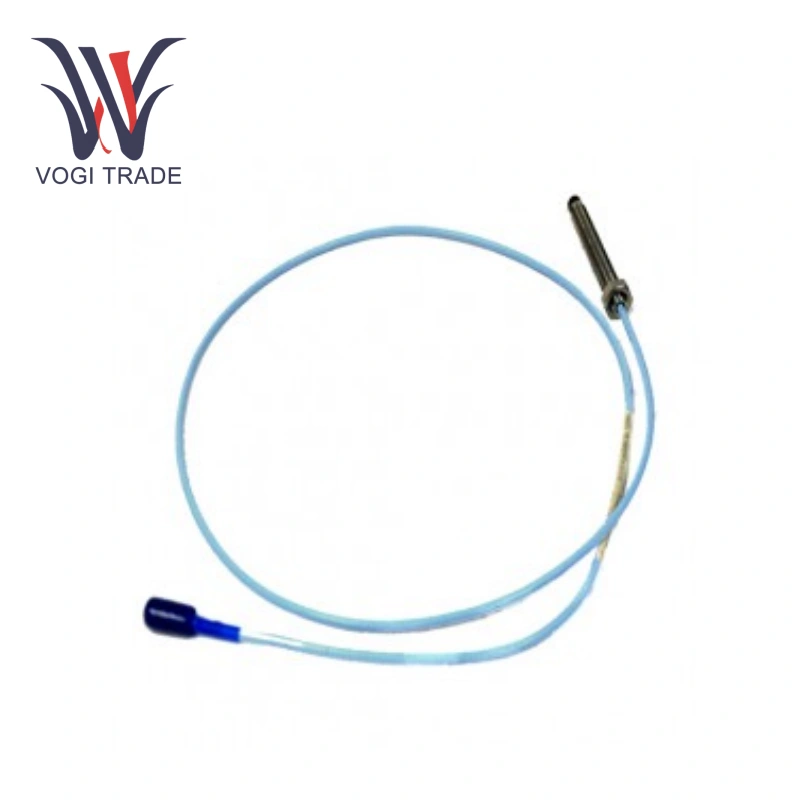

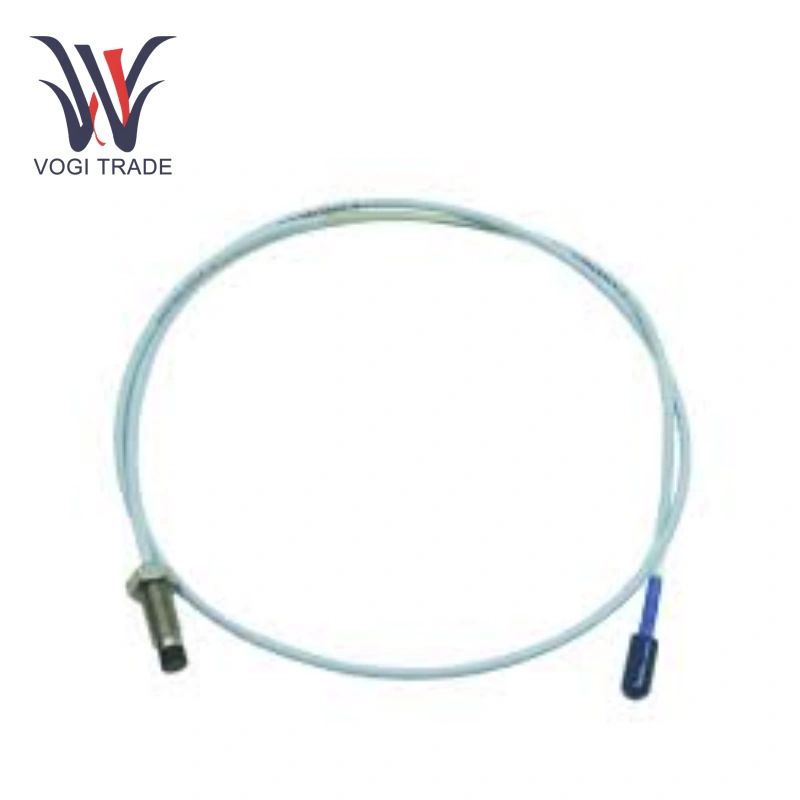

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330101-00-79-10-02-CN is a 3300 XL Series 8mm proximity probe designed for accurately measuring static displacement and dynamic vibration of equipment components. It features a micro coaxial Click Loc connector and standard cable for a convenient and secure connection.
|
Manufacture |
Bently Nevada |
|
Model Number |
330101-00-79-10-02-CN |
|
Ordering Number |
330101-00-79-10-02-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
8414909090 |
|
Dimension |
18*18*6CM |
|
Packing Dimension |
20*20*7CM |
|
Weight |
1.0 kg |
Product Overview
Probe Type: 3300 XL 8mm Proximity Probe
Unthreaded Length: 0mm
Total Probe Housing Length: 79mm
Total System Length: 1.0m
Connector and Cable Type: Micro coaxial Click Loc connector, standard cable
Linear Range: 2mm (80mils), starting at approximately 0.25mm (10mils) from the target
Sensitivity: 7.87V/mm (200mV/mil), average sensitivity error ≤±5%
Frequency Response: 0-10kHz, less than 1% attenuation from 0-1kHz, less than 5% attenuation at 10kHz
Operating Temperature: -51°C to +177°C
Operating Media: Operates in a variety of media, including air, oil, and water
Maximum Probe Operating Pressure: 12MPa
Minimum Target Size: 50mm diameter (applicable to 8mm probes)
Product Features
Accurate Measurement: Bently Nevada 330101-00-79-10-02-CN with high linearity and sensitivity enable precise measurement of minute displacements and vibrations of equipment components, providing reliable data for evaluating equipment operating conditions.
Environmentally Resilience: Bently Nevada 330101-00-79-10-02-CN use probe tip is made of wear-resistant and chemically resistant PPS, while the stainless steel housing is impact- and corrosion-resistant, ensuring stable operation in harsh industrial environments.
Reliable Connection: Bently Nevada 330101-00-79-10-02-CN use micro coaxial Click Loc connector provides a secure connection, effectively reducing looseness and poor contact during signal transmission, ensuring accurate monitoring data.
Applications
Power Industry: Bently Nevada 330101-00-79-10-02-CN used in steam turbines, generators, and other equipment to monitor radial vibration and axial displacement of shafts, ensuring stable operation of power equipment.
Petrochemical Industry: Bently Nevada 330101-00-79-10-02-CN is suitable for compressors, pumps, and other equipment, monitoring vibration in real time to promptly identify potential equipment failures.
Note
Pressure Caution: Although the probe is designed to seal the pressure differential between the probe tip and the housing and uses a Viton O-ring as the sealing material, the probe is not pressure tested before shipment. In applications requiring pressure, careful evaluation and implementation of additional pressure protection measures are necessary.
