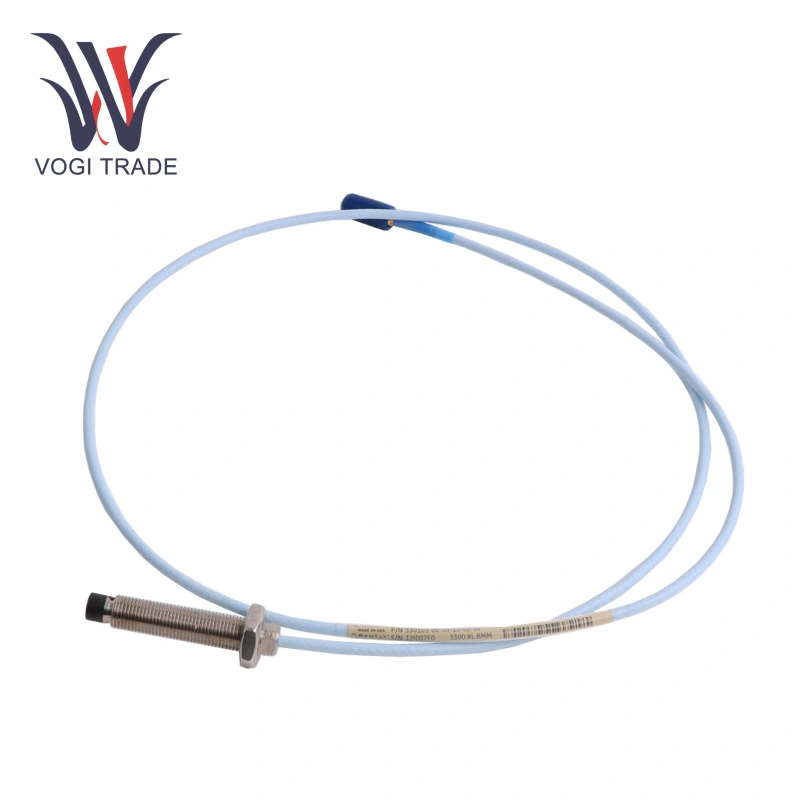

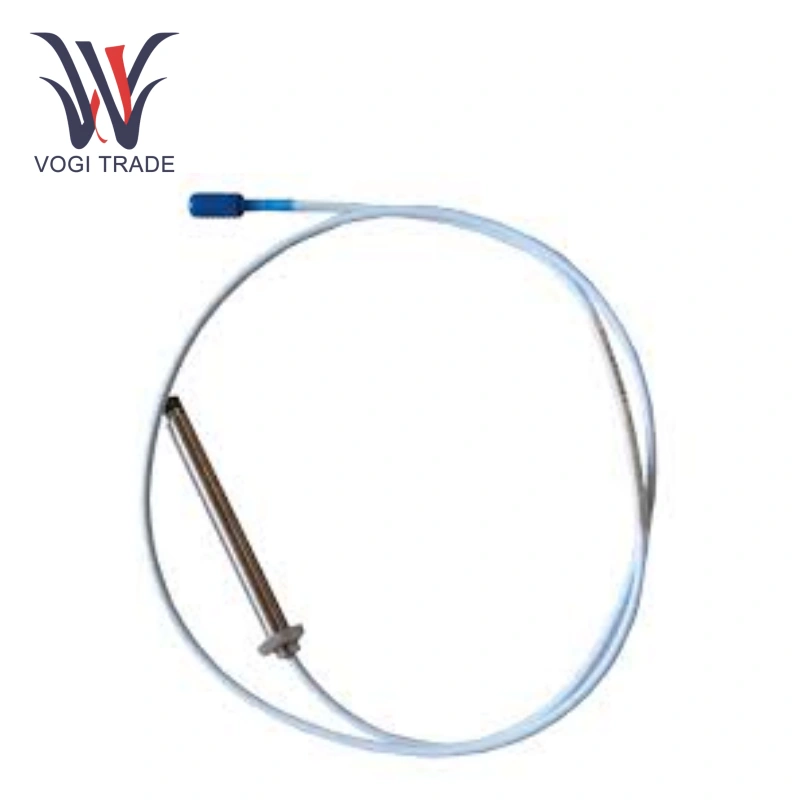

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330103-00-03-90-12-05 is a 3300 XL 8mm Series proximity probe that uses a high-frequency magnetic field for non-contact detection of target objects. The probe has an overall length of 30mm, allowing for a total system length of up to 9.0 meters (29.5 feet), and features a micro coaxial Click Loc connector.
|
Manufacture |
Bently Nevada |
|
Model Number |
330103-00-03-90-12-05 |
|
Ordering Number |
330103-00-03-90-12-05 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
15*15*5CM |
|
Packing Dimension |
18*18*8CM |
|
Weight |
1.5 kg |
Product Overview
Probe Type: 3300 XL 8mm Proximity Probe
Probe Overall Length: 30mm
System Total Length: 9.0m (29.5ft)
Connector Type: Micro Coaxial Click Loc Connector
Probe Tip Material: Polyphenylene Sulfide (PPS)
Probe Housing Material: AISI 303 or 304 Stainless Steel
Linear Range: 2mm (80mils)
Sensitivity: 7.87V/mm (200mV/mil), Average Sensitivity Error ≤±5%
Frequency Response: 0-10kHz, with less than 1% attenuation from 0-1kHz and less than 5% attenuation from 10kHz
Operating Temperature: -50°C to +175°C (Probe)
Maximum Operating Pressure: 12MPa
Minimum Target Size: 50mm diameter (for 8mm probes)
Product Features
Accurate Measurement: Bently Nevada 330103-00-03-90-12-05 with high linearity and sensitivity enable precise measurement of static displacement and dynamic vibration of equipment components.
Durability: Bently Nevada 330103-00-03-90-12-05 use stainless steel probe housing is impact- and corrosion-resistant, and the wear-resistant PPS probe tip ensures stable operation in harsh industrial environments.
Stable Signal: Bently Nevada 330103-00-03-90-12-05 with 75Ω triaxial fluoroethylene propylene (FEP) insulated cable (if available) reduces signal transmission interference.
Applications
Power Industry: Bently Nevada 330103-00-03-90-12-05 used for vibration and displacement monitoring of equipment such as steam turbines and generators, this system promptly detects problems like loose components and wear, preventing power outages caused by equipment failures.
Petrochemical Industry: Bently Nevada 330103-00-03-90-12-05 suitable for equipment such as compressors and pumps. By accurately measuring vibration and displacement parameters, this system provides real-time visibility into equipment operating status and provides early warning of failures.
Note
Compatibility: This product is designed for connection only to 3300 XL Series eddy current sensor systems and associated equipment. Do not connect with incompatible equipment to avoid damage to the probe or system failure. Before connecting a new monitoring system, confirm system and probe compatibility.
