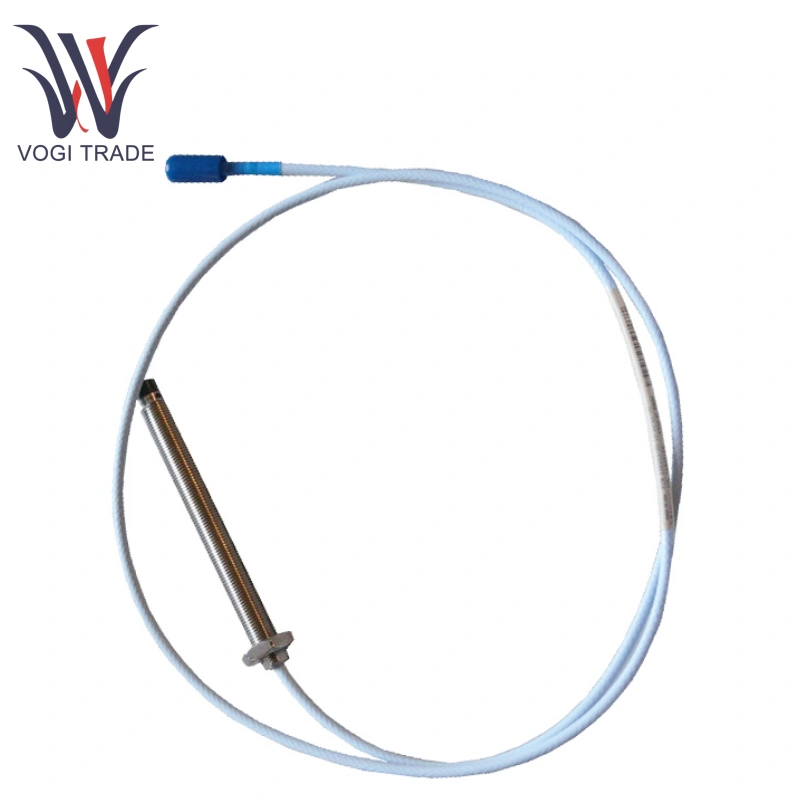

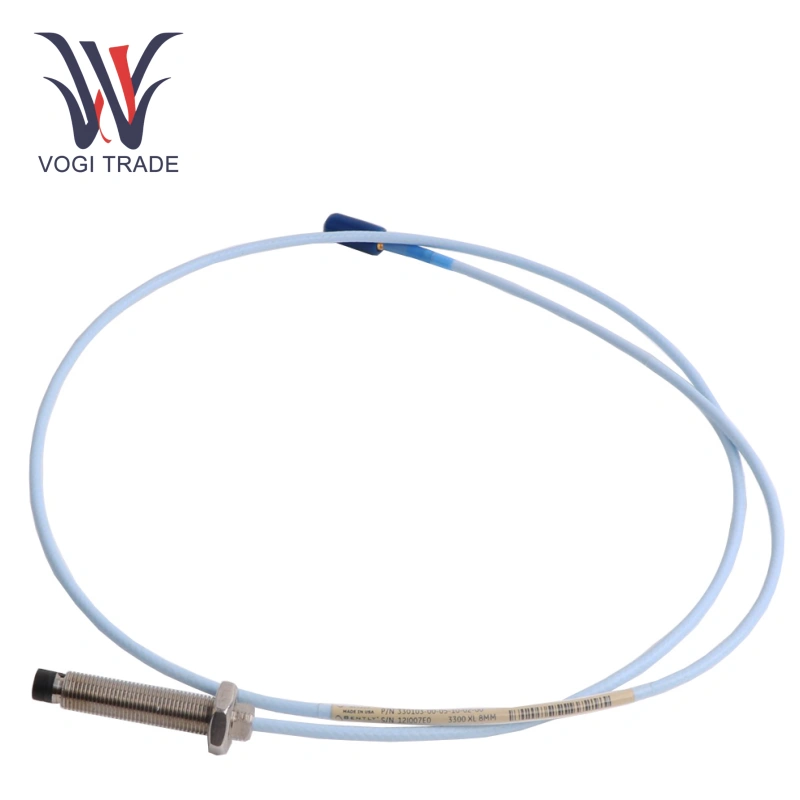

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330103-00-03-90-12-CN is a metric thread M10x1 type 3300 XL 8 mm Proximity Probe, without armor, for measuring static position and dynamic vibration values on conductive surfaces. It is suitable for vibration and position measurement in fluid film bearing machinery.
|
Manufacture |
Bently Nevada |
|
Model Number |
330103-00-03-90-12-CN |
|
Ordering Number |
330103-00-03-90-12-CN |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
18*18*6CM |
|
Packing Dimension |
20*20*7CM |
|
Weight |
1.0 kg |
Mechanical Characteristics:
Thread Type: Metric M10x1.
Body Length: 30mm (BB=03), Unthreaded Portion: 0mm (AA=00).
Total Length: 9.0m (CC=90). FluidLoc Cable (DD=12), Maximum OD 3.94mm (7.67mm when armored).
Probe Tip Material: Polyphenylene Sulfide (PPS), providing high durability.
Connector: Gold-plated ClickLoc connector for corrosion resistance and easy installation.
Electrical and Environmental Specifications
Resistance and Capacitance: Probe DC resistance depends on length. CC = 90 corresponds to RPROBE ≈ 9.87 ± 0.50 Ω (based on a 9-meter length).
Temperature Range:
Standard probe operating temperature: -52°C to +177°C.
Note: Temperatures below -34°C may cause seal failure.
Linear Range and Accuracy: Linear range 2 mm (80 mils), Incremental Scale Factor (ISF) 7.87 V/mm ± 5% (5-meter system), except for CC = 90, where the ISF is ± 6.5% for a 9-meter system. DSL deviation (DSL) is less than ± 0.038 mm.
Frequency Response: 0-10 kHz (+0, -3 dB), supports field wiring up to 305 meters.
Product Features
High-Precision Detection: Bently Nevada 330103-00-03-90-12-CN uesd an 8mm sensing range ensures precise detection of target objects, ensuring accurate measurements.
Durability: Bently Nevada 330103-00-03-90-12-CN uesd stainless steel housing and specially designed probe tip ensure long-term stable operation in harsh environments.
Reliable Connection: Bently Nevada 330103-00-03-90-12-CN have micro coaxial Click Loc connector provides a secure and easy-to-operate connection, requiring only finger-tight torque.
Wide Environmental Adaptability: Bently Nevada 330103-00-03-90-12-CN can operates in temperatures ranging from -51°C to +177°C.
Applications
Bently Nevada 330103-00-03-90-12-CN can be used in rotating machinery monitoring, industrial automation, and energy industries.
Mounting and Compatibility
Bently Nevada 330103-00-03-90-12-CN mounting requirements: A minimum shaft diameter of 76.2 mm (3 inches) is recommended to maintain scale factor; probe tip spacing should be at least 38 mm to reduce crosstalk.
Interchangeability: Compatible with all 3300 XL components (probes, extension cables, Proximitor sensors), and also supports interchangeability with non-XL 3300 series.
Accessory Requirements: For non-armored designs (330103), a mounting bracket must be ordered separately (e.g., 137492-04 for M10x1 thread).
Warning: The probes are not pressure tested; leak risk is the customer's responsibility.
