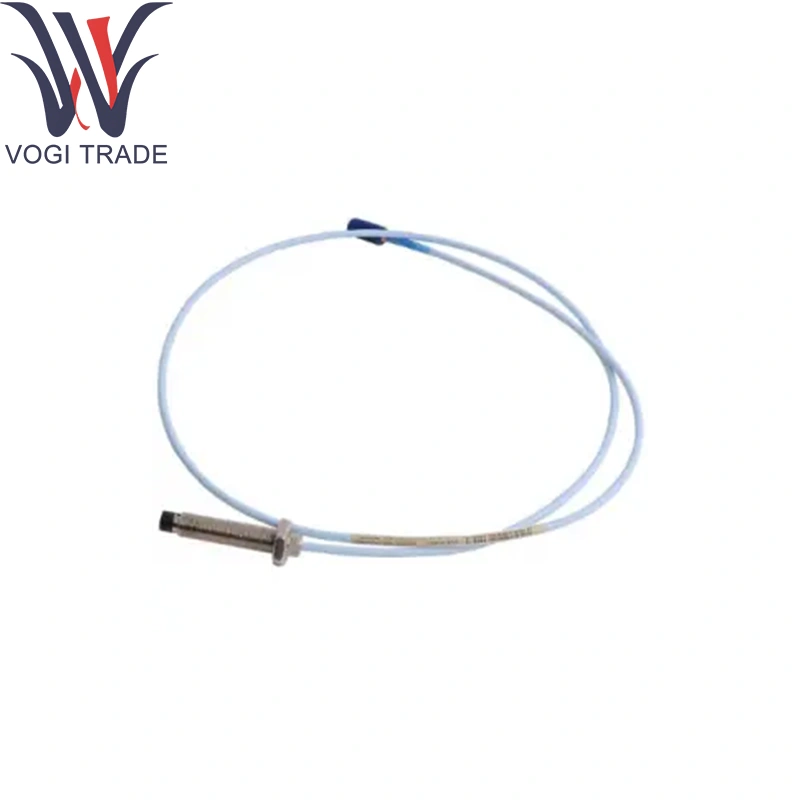

Bently Nevada 330103-00-05-05-02-00

Ordering Information

3300 XL 8 mm Proximity Probes, Metric

330103    3300 XL 8 mm Probe, M10 x 1 thread, without armor (2)

330104    3300 XL 8 mm Probe, M10 x 1 thread, with armor (2)

Part Number-AA-BB-CC-DD-EE

A: Unthreaded Length Option

Order in increments of 10 mm

Length configurations:

Maximum unthreaded length: 230 mm

Minimum unthreaded length: 0 mm

Example: 0 6 = 60 mm

B: Overall Case Length Option

Order in increments of 10 mm

Metric thread configurations:

Maximum case length: 250 mm

Minimum case length: 20 mm

Example: 0 6 = 60 mm

C: Total Length Option

05   0.5 meter (1.6 feet)

10   1.0 meter (3.3 feet)

15   1.5 meter (4.9 feet)

20   2.0 meters (6.6 feet)

50   5.0 meters (16.4 feet)

90   9.0 meters (29.5 feet)

D: Connector and Cable-Type Option

01   Miniature coaxial ClickLoc connector with connector protector, standard cable

02   Miniature coaxial ClickLoc connector, standard cable

11   Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

12   Miniature coaxial ClickLoc connector, FluidLoc cable

E: Agency Approval Option

00   Not required

05   CSA, ATEX, IECEx  Approvals

Technical Parameters

Linear Range: 1.0 mm (40 mils) full-scale for Bently Nevada 330103-00-05-05-02-00

Sensitivity: 50 mV/µm (125 mV/mil) ± 5 % at –23 V DC excitation in Bently Nevada 330103-00-05-05-02-00

Output Span: –2 V to –12 V over linear range

Linearity: ± 1 % of full-scale

Frequency Response: DC to 10 kHz (–3 dB)

Operating Temperature: –35 °C to +125 °C (probe); –20 °C to +80 °C (PVC cable)

Environmental Seal: IP65 when mated to connector

Pressure Rating: Use with bulkhead or thermowell for pressurized applications

Product function

Bently Nevada 330103-00-05-05-02-00 converts minute air-gap variations between probe tip and rotating shaft into proportional AC voltage. The unarmored, impedance-matched cable transmits low-noise signals via Bently Nevada 330103-00-05-05-02-00 to Proximitor® modules for linearization, digitization, and real-time clearance/vibration analysis.

Application Areas

Steam & Gas Turbines: Bearing clearance and rub detection with Bently Nevada 330103-00-05-05-02-00 in protected cabinets

Centrifugal & Reciprocating Compressors: Surge control and shaft-position feedback

Industrial Pumps & Motors: Imbalance and misalignment monitoring within enclosures

Research & Test Facilities: High-fidelity vibration studies using Bently Nevada 330103-00-05-05-02-00

OEM Skids & Panels: Internal probe harnesses in packages featuring Bently Nevada 330103-00-05-05-02-00
