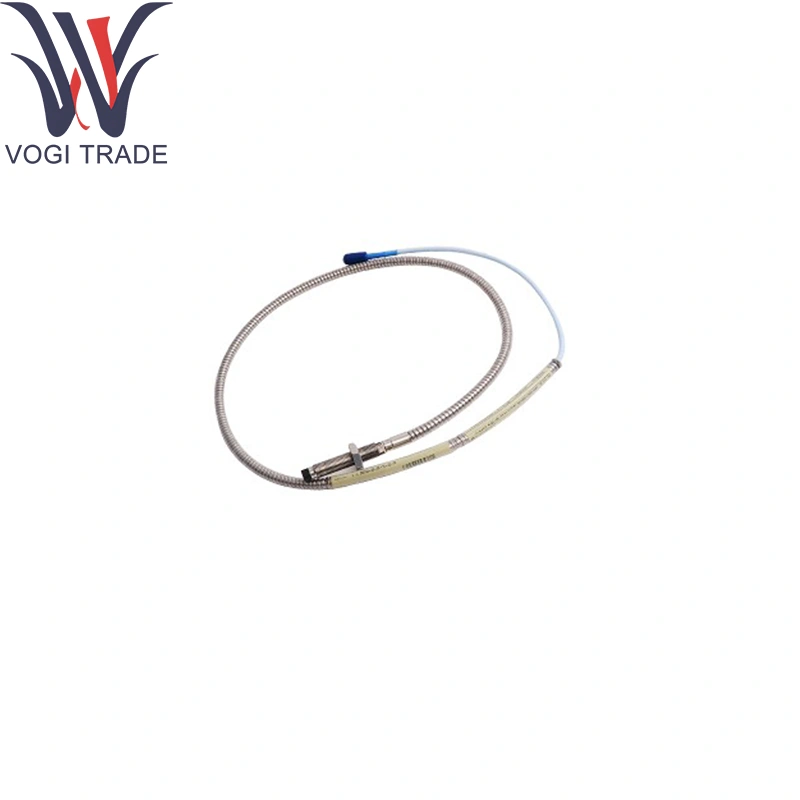

Bently Nevada 330103-00-14-10-02-00

Ordering Information

Unthreaded Length Option: 00 = 00 mm

Overall Case Length Option: 16 = 160 mm

Total Length Option: 10 = 1.0 meter (3.3 feet)

Connector and Cable-Type Option: 02 = Miniature coaxial ClickLoc™ connector, standard cable

Agency Approval Option:05=CSA, ATEX, IECEx  Approvals

Technical Parameters

Linear Range: 1.0 mm (40 mils) full-scale for Bently Nevada 330103-00-14-10-02-00

Sensitivity: 50 mV/µm (125 mV/mil) ± 5% at –23 V DC excitation

Output Span: –2 V to –12 V DC over linear range

Linearity: ± 1 % of full-scale

Frequency Response: DC to 10 kHz (–3 dB)

Operating Temperature:

Probe: –35 °C to +125 °C in Bently Nevada 330103-00-14-10-02-00

Cable: –20 °C to +80 °C (PVC)

Environmental Seal: IP65 when mated to compatible connector

Pressure Rating: Use with bulkhead or thermowell for pressurized environments

Product function

Converts minute variations in air-gap using Bently Nevada 330103-00-14-10-02-00 between probe tip and rotating target into proportional AC voltage signal. Delivered over shielded cable to Proximitor® modules, it enables precise clearance monitoring, vibration analysis, and overspeed protection.

Application Areas

Steam & Gas Turbines: Rub detection, bearing-clearance surveillance with Bently Nevada 330103-00-14-10-02-00

Centrifugal & Reciprocating Compressors: Surge control, shaft-position feedback

Industrial Pumps & Motors: Misalignment and imbalance detection

Generators & Large Rotors: End-winding and axial position monitoring via Bently Nevada 330103-00-14-10-02-00

Test & Research Facilities: Flexible mounting in rigs featuring Bently Nevada 330103-00-14-10-02-00

Research & Test Rigs: High-fidelity vibration studies via Bently Nevada 330103-00-14-10-02-00

OEM Skids & Panels: Tight-space installations requiring minimal probe intrusion
