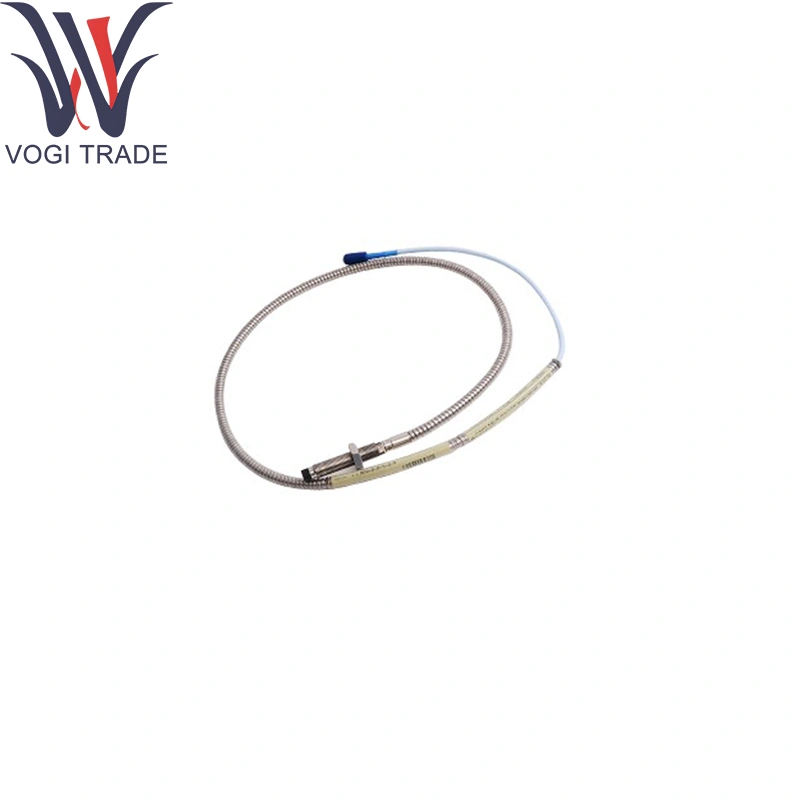

Brand: Bently Nevada Description: 330103-00-15-10-02-00 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 13 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330103-00-15-10-02-00 Used for non-contact shaft-position and vibration monitoring in machinery where space is limited, and armored cable is not required—such as inside clean, protected control enclosures or test benches.
|
Manufacture |
Bently Nevada |
|
Model Number |
330103-00-15-10-02-00 |
|
Ordering Number |
330103-00-15-10-02-00 |
|
Catalog |
3300XL |
|
Description |
8 Mm Proximity Probes Without Armour |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
24*2.4*10 (CM) |
|
Weight |
0.1 kg |
Ordering Information
3300 XL 8 mm Proximity Probes:
330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor(2)
330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor(2)
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
30 3.0 meters (9.8 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
Technical Parameters
Linear Range: 1.0 mm (40 mils) full scale for Bently Nevada 330103-00-15-10-02-00
Sensitivity: 50 mV/µm (125 mV/mil) ± 5% @ –23 V DC excitation
Output Span: –2 V to –12 V over linear range
Linearity: ± 1 % of full scale
Frequency Response: DC to 10 kHz (–3 dB)
Operating Temperature: –35 °C to +125 °C (probe); –20 °C to +80 °C (PVC cable) in Bently Nevada 330103-00-15-10-02-00
Pressure Rating: Not pressure-sealed (requires bulkhead/thermowell for pressurized apps)
Environmental Protection: IP65 when mated; stainless-steel body, ceramic tip
Product function
Converts air-gap variations using Bently Nevada 330103-00-15-10-02-00 into proportional AC voltage. The unarmored cable version delivers high-fidelity signals to Proximitor® modules in protected environments.
Application Areas
Test Benches & Labs: Compact setups with probes mounted inside cabinets using Bently Nevada 330103-00-15-10-02-00
Clean-Area Machinery: Pumps/motors with minimal abrasion risk
OEM Equipment: Embedded instrumentation in skid packages with Bently Nevada 330103-00-15-10-02-00
R&D Prototypes: Temporary installations requiring flexible wiring
Control-Room Simulations: HIL testing of monitoring systems via Bently Nevada 330103-00-15-10-02-00
