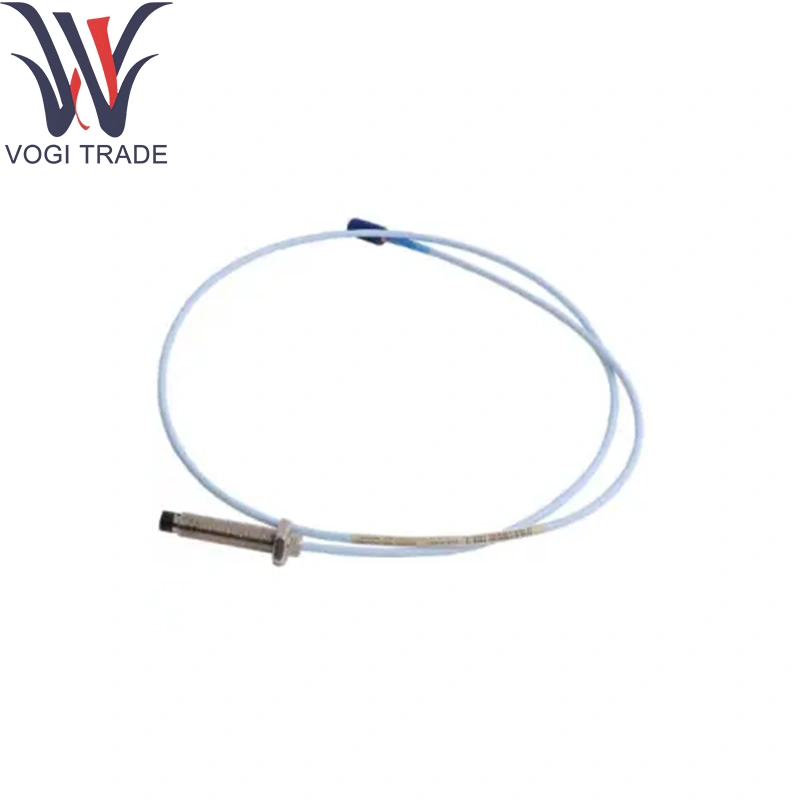

Brand: Bently Nevada Description: 330103-03-10-10-02-00 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330103-03-10-10-02-00 Designed for high-fidelity, non-contact measurement of shaft clearance and vibration in compact or clean environments where armored cable is not required.
|
Manufacture |
Bently Nevada |
|
Model Number |
330103-03-10-10-02-00 |
|
Ordering Number |
330103-03-10-10-02-00 |
|
Catalog |
3300 XL |
|
Description |
Proximity Probes Without Armour |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
1 M |
|
Weight |
0.15 kg |
Ordering Information
3300 XL 8 mm Proximity Probes, Metric
330103 3300 XL 8 mm Probe, M10 x 1 thread, without armor (2)
330104 3300 XL 8 mm Probe, M10 x 1 thread, with armor (2)
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option
Order in increments of 10 mm
Length configurations:
Maximum unthreaded length: 230 mm
Minimum unthreaded length: 0 mm
Example: 0 6 = 60 mm
B: Overall Case Length Option
Order in increments of 10 mm
Metric thread configurations:
Maximum case length: 250 mm
Minimum case length: 20 mm
Example: 0 6 = 60 mm
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
D: Connector and Cable-Type Option
01 Miniature coaxial ClickLoc connector with connector protector, standard cable
02 Miniature coaxial ClickLoc connector, standard cable
11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12 Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
Technical Parameters
Linear Range: 1.0 mm (40 mils) full-scale for Bently Nevada 330103-03-10-10-02-00
Sensitivity: 50 mV/µm (125 mV/mil) ± 5 % at –23 V DC excitation in Bently Nevada 330103-03-10-10-02-00
Output Span: –2 V to –12 V DC over linear range
Linearity: ± 1 % of full-scale
Frequency Response: DC to 10 kHz (–3 dB)
Operating Temperature: –35 °C to +125 °C (probe); –20 °C to +80 °C (cable)
Environmental Seal: IP65 when mated
Pressure Rating: Requires bulkhead gland or thermowell for pressurized applications
Product function
Bently Nevada 330103-03-10-10-02-00 converts minute air-gap variations between probe tip and rotating shaft into an AC voltage proportional to displacement. The low-noise, impedance-matched signal is transmitted via Bently Nevada 330103-03-10-10-02-00 to Proximitor® modules for linearization and real-time analysis.
Application Areas
Steam & Gas Turbines: Bearing-clearance and rub detection using Bently Nevada 330103-03-10-10-02-00 in control-cabinet setups
Compressors & Pumps: Shaft-position feedback for surge-control
Motors & Generators: End-winding clearance and imbalance detection
OEM Skid Packages: Internal wiring in skids featuring Bently Nevada 330103-03-10-10-02-00
R&D & Test Facilities: Flexible probe placement for studies with Bently Nevada 330103-03-10-10-02-00
