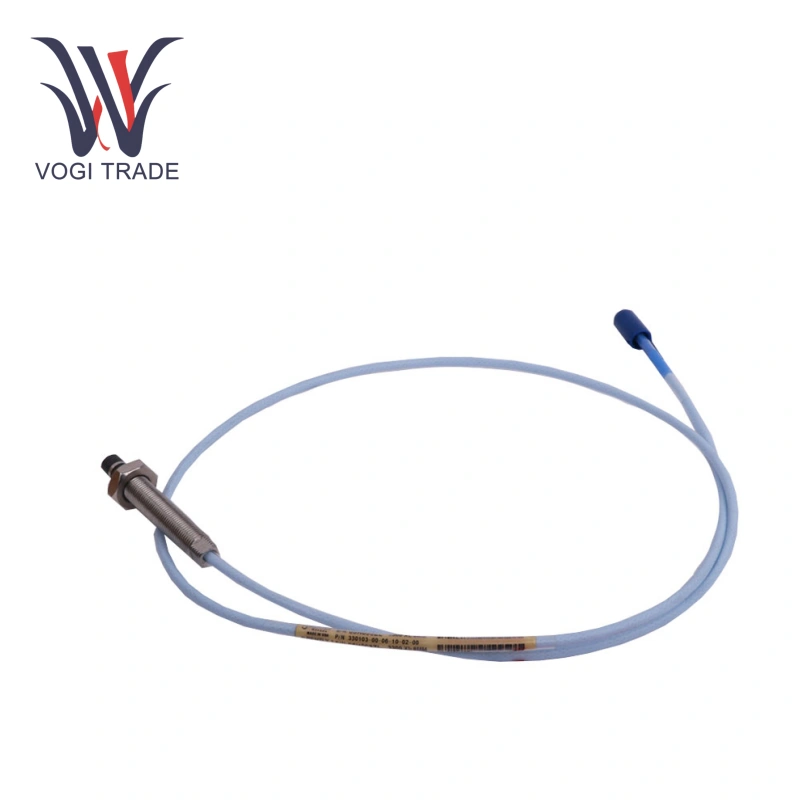

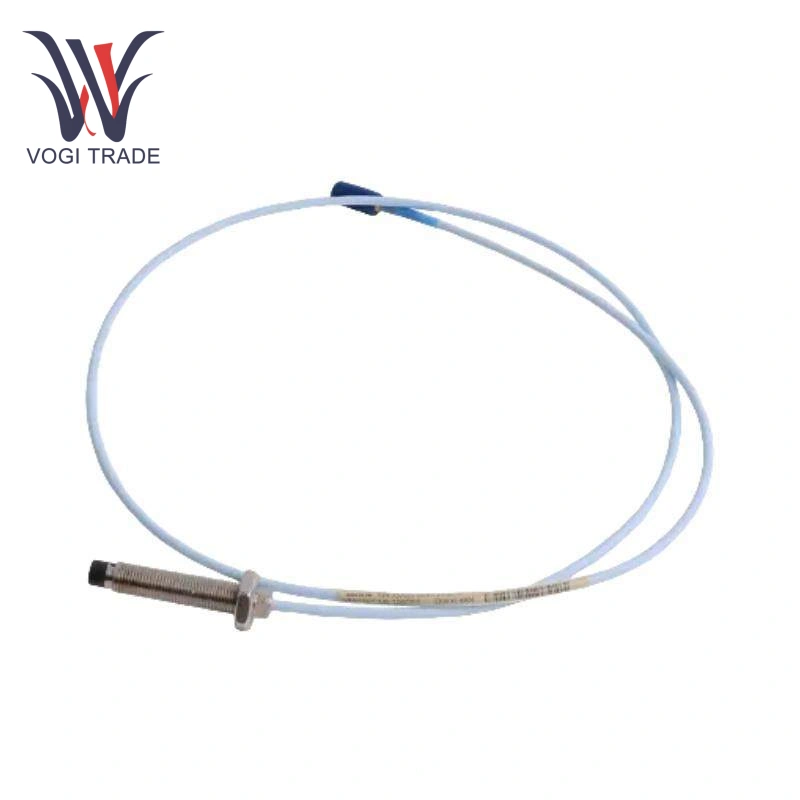

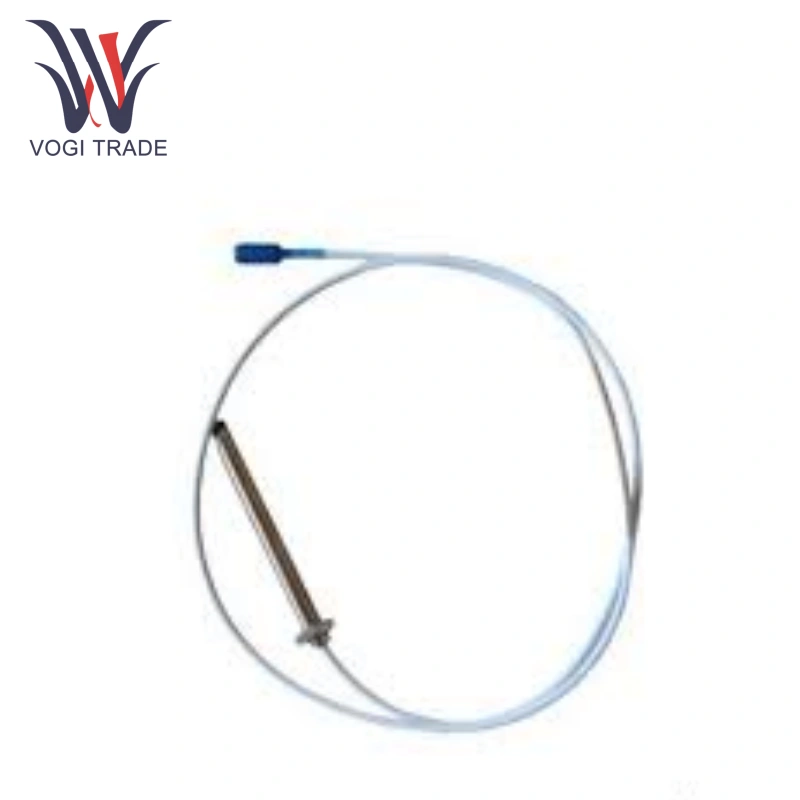

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330103-06-20-10-02-00 is part of the 3300 XL Series of 8mm proximity probes, a non-contact sensor for vibration and displacement monitoring in rotating machinery. This probe system, consisting of an 8mm probe, an extension cable, and a proximitor amplifier, operates based on the eddy current principle.
|
Manufacture |
Bently Nevada |
|
Model Number |
330103-06-20-10-02-00 |
|
Ordering Number |
330103-06-20-10-02-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
18*18*6CM |
|
Packing Dimension |
20*20*7CM |
|
Weight |
1.0 kg |
Electrical Specifications
Linear Range: 2 mm (80 mils), starting approximately 0.25 mm (10 mils) from the target.
Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5%.
DC Resistance (RPROBE): Based on probe length (1.0 meter), nominal 7.59 ± 0.50 Ω.
Frequency Response: 0 to 10 kHz, +0, -3 dB, supports field wiring lengths up to 305 meters.
Minimum Target Size: 15.2 mm (0.6 in) diameter (flat target).
Minimum Shaft Diameter: 50.8 mm (2 in), 76.2 mm (3 in) recommended to optimize scale factor. Environmental Specifications
Temperature Range:
Standard probe: Operating and storage temperature -52°C to +177°C (-62°F to +350°F).
Low Temperature Warning: Temperatures below -34°C (-30°F) may cause seal failure.
Humidity Effect: At 93% humidity (IEC Standard 68-2-3), the average scale factor change is less than 3%.
Pressure Seal: The probe is designed to seal against differential pressure (between the probe tip and the housing) using a Viton® O-ring. However, the documentation emphasizes that the probe is not pressure tested before shipment; leak control is the customer's responsibility; Bently Nevada assumes no liability for damage caused by leaks .
Other: Immunity to 60 Hz magnetic fields (up to 300 Gauss), with minimal output change.
Product Features
High-precision monitoring: Bently Nevada 330103-06-20-10-02-00 sensitivity reaches -7.87V/mm, with a linear error of ≤±5%, capable of capturing micron-level displacement changes.
Environmentally robust: Bently Nevada 330103-06-20-10-02-00 with the stainless steel housing and FEP cable withstand high temperatures, oil, and chemical corrosion. Its 12MPa pressure-resistant design makes it suitable for harsh operating conditions such as those in the oil and power industries.
Flexible installation: Bently Nevada 330103-06-20-10-02-00 compact size, with a threadless length of 6mm and a total housing length of 20mm, fits tightly within tight installation spaces. The Click Loc™ connector allows for quick plug-in and disconnection, simplifying maintenance.
Applications
Power Industry: Bently Nevada 330103-06-20-10-02-00 is used for monitoring shaft vibration and displacement in steam turbines and generators, providing real-time feedback on rotor operating status.
Petrochemical Industry: Bently Nevada 330103-06-20-10-02-00 is suitable for compressors, centrifugal pumps, and other equipment, monitoring rotor radial vibration and axial movement to prevent production interruptions caused by seal failure and impeller imbalance.
