Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330104-00-05-10-02-05 is part of the 3300 XL series of 8mm proximity probes, designed for accurate vibration and displacement measurement on rotating machinery. This probe system, consisting of the 3300 XL 8mm probe, extension cable, and 3300 XL Proximitor Sensor, operates based on the eddy current principle.
|
Manufacture |
Bently Nevada |
|
Model Number |
330104-00-05-10-02-05 |
|
Ordering Number |
330104-00-05-10-02-05 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
30*30*4CM |
|
Packing Dimension |
32*32*6CM |
|
Weight |
1.15 kg |
Physical Characteristics
The physical design of the 330104-00-05-10-02-05 is based on the standard mount configuration and includes the following key features:
Probe Tip: 8.0 mm (0.31 in) diameter, encapsulated in polyphenylene sulfide (PPS) plastic, providing durability and resistance to physical damage. The document recommends using an 8 mm probe when possible to optimize robustness (Description Notes, Note 7).
Housing Material: AISI 303 or 304 stainless steel (SST) with M10x1 threads. Housing lengths are 0.5 in (BB=05) and 0.0 in (AA=00).
Cable and Connector: Standard 75Ω triaxial cable with FEP insulation, maximum outer diameter 3.68 mm (0.145 in). With stainless steel armor, maximum outer diameter 7.67 mm (0.302 in), providing a tensile strength of 330 N (75 lbf). The connector is a ClickLoc type, made of gold-plated brass or beryllium copper, and can be installed without tools (Connectors section).
Overall Dimensions: Total length 1.0 meter (CC=10), tolerance +30%, -0%. The armor section is typically 300 mm (11.8 inches) shorter than the cable length (Figure Notes, Note 6).
Mounting Options: Standard configuration includes an M17 or 9/16-inch locking nut (Figure Notes, Note 2). It can be used with aluminum or phenolic threaded mounting brackets (such as 137492-04 or 27474-04).

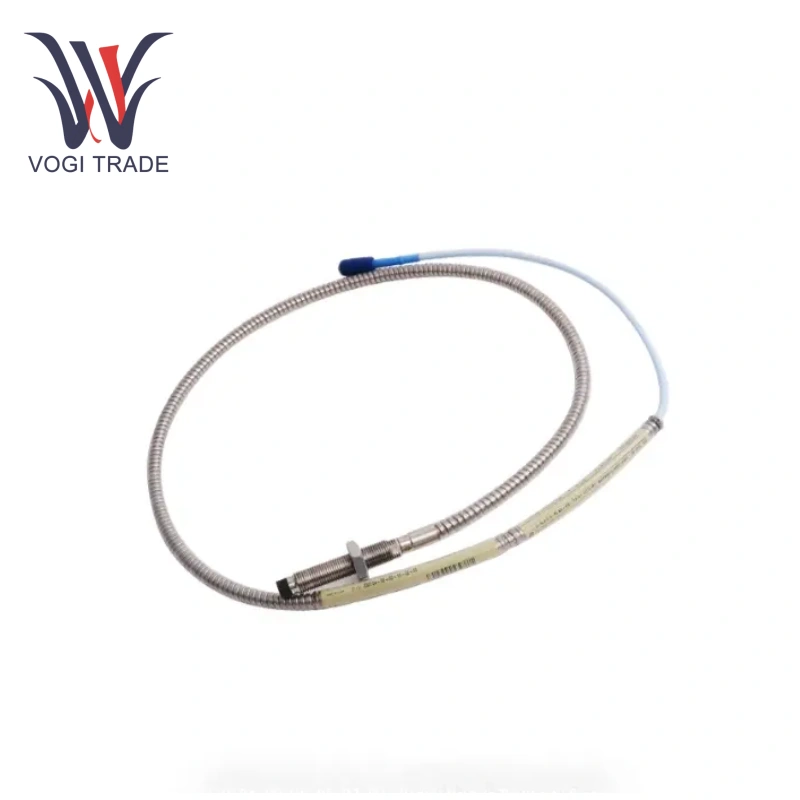

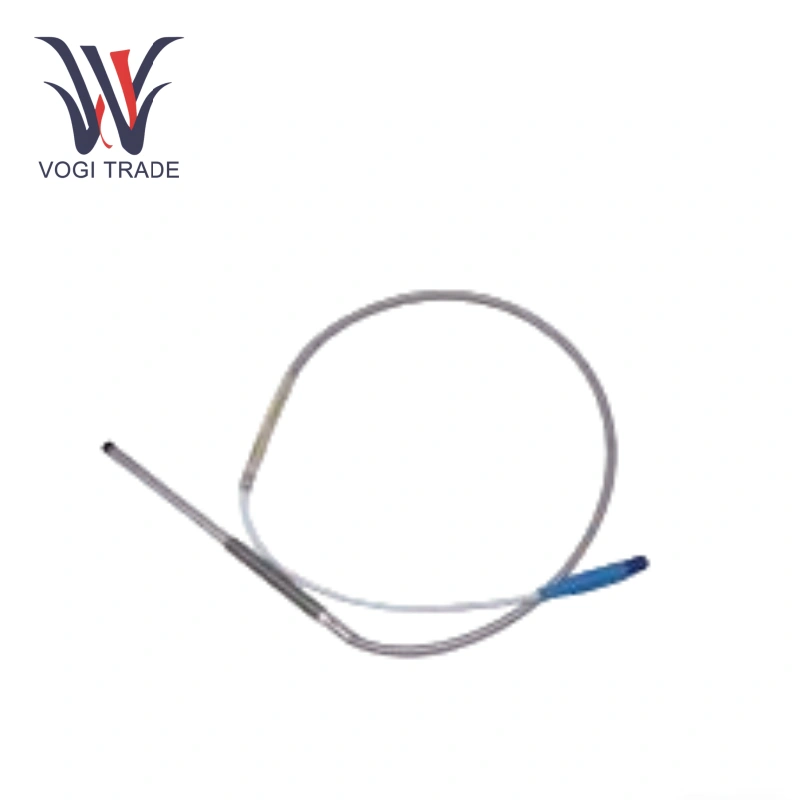

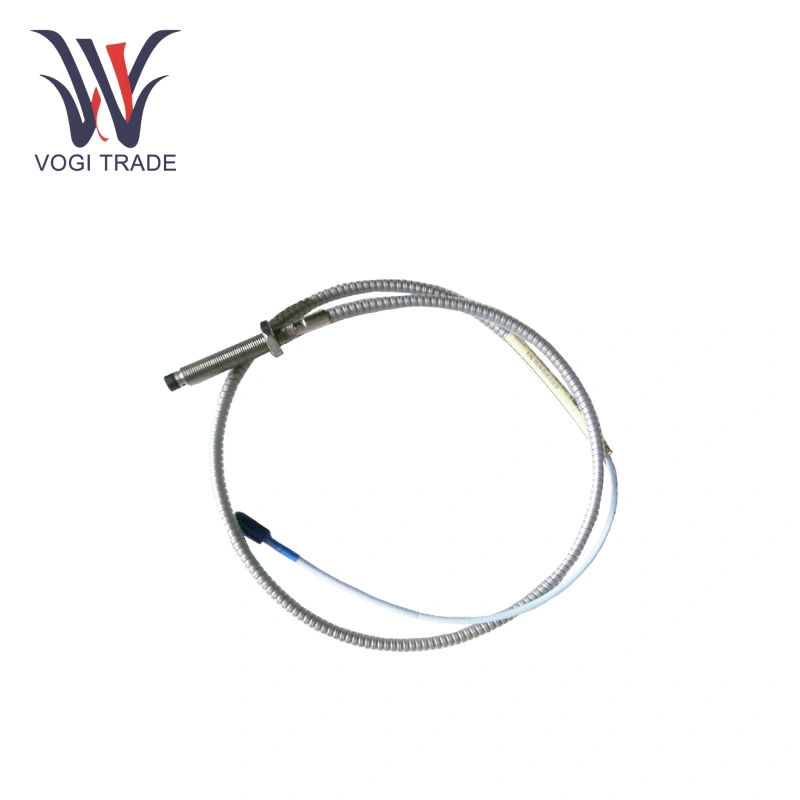

The images illustrate the physical appearance and dimensional details of the 330104, including the probe tip, housing threads, cable, and connector layout.
Product Features
High-Precision Measurement: Bently Nevada 330104-00-05-10-02-05 has high sensitivity, with an accuracy of ±1% of full scale, accurately captures even the smallest changes in equipment vibration or displacement.
Environmentally Resistant: Bently Nevada 330104-00-05-10-02-05 can stable operation within a wide temperature range of -52°C to +177°C, and the rugged housing resists harsh environmental factors such as dust and water splashes.
Easy Installation: Bently Nevada 330104-00-05-10-02-05 with the standard connector and cable design, along with the optimal probe size, facilitate installation on equipment, allowing for flexible installation locations based on actual monitoring needs.
Applications
Petrochemical: Bently Nevada 330104-00-05-10-02-05 can installed on key equipment such as compressors and pumps, it monitors vibration and position changes during operation, enabling timely detection of potential equipment failures.
Industrial Manufacturing: Bently Nevada 330104-00-05-10-02-05 is suitable for motors, machine tools, fans, and other equipment. By monitoring vibration and displacement, it optimizes equipment operating parameters, improves machining accuracy, and prevents equipment damage caused by vibration.
