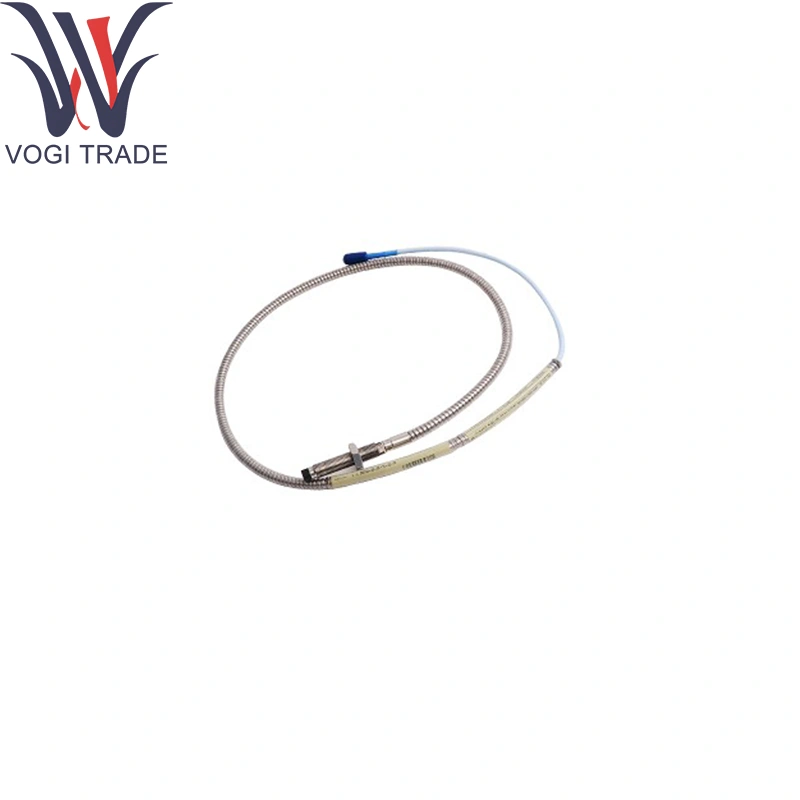

Bently Nevada 330104-00-06-10-02-00

Ordering Information

3300 XL 8 mm Proximity Probes:

330101   3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor(2)

330102    3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor(2)

Part Number-AA-BB-CC-DD-EE

A: Unthreaded Length Option

Order in increments of 0.1 in.

Length configurations:

Maximum unthreaded length: 8.8 in.

Minimum unthreaded length: 0.0 in.

Example: 0 4 = 0.4 in.

B: Overall Case Length Option

Order in increments of 0.1 in.

Standard thread configurations:

Maximum case length: 9.6 in.

Minimum case length: 0.8 in.

Example: 2 4 = 2.4 in.

C: Total Length Option

05  0.5 meter (1.6 feet)

10  1.0 meter (3.3 feet)

15  1.5 meter (4.9 feet)

20  2.0 meters (6.6 feet)

30  3.0 meters (9.8 feet)

50  5.0 meters (16.4 feet)

90  9.0 meters (29.5 feet)

Technical Parameters

Impedance: 50 Ω ± 5 % for Bently Nevada 330104-00-06-10-02-00

Capacitance: ≤ 100 pF/m between conductors

Conductor: 26 AWG, 7 × 36 tinned-copper strands per core in Bently Nevada 330104-00-06-10-02-00

Voltage Rating: 300 VAC (insulation)

Temp. Rating: –20 °C to +80 °C (PVC jacket); up to +200 °C (PTFE option)

Environmental: RoHS-compliant, UV-resistant jacket option

Product function

Transmits differential AC signals through Bently Nevada 330104-00-06-10-02-00 from proximity probes to conditioning modules with minimal loss. Matched impedance preserves integrity for real-time shaft displacement and vibration measurement.

Application Areas

Turbine & Compressor Control Panels: Bearing clearance monitoring with Bently Nevada 330104-00-06-10-02-00 in power-generation cabinets

Pump & Motor Enclosures: Shaft-position feedback for maintenance

Portable Test Rigs: Quick-disconnect harnesses for field diagnostics

OEM Skid Assemblies: Factory-integrated probe cables specifically for Bently Nevada 330104-00-06-10-02-00 in skid-mounted instrumentation

Hazardous-Area Junction Boxes: PTFE-jacket variant of Bently Nevada 330104-00-06-10-02-00 for higher temp enclosures
