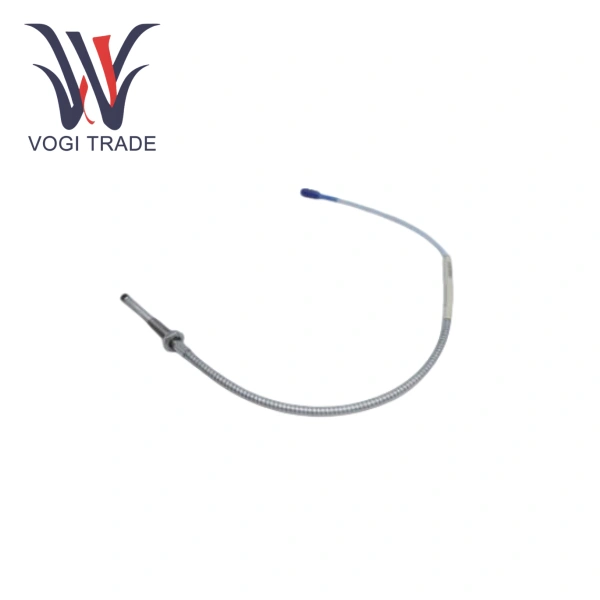

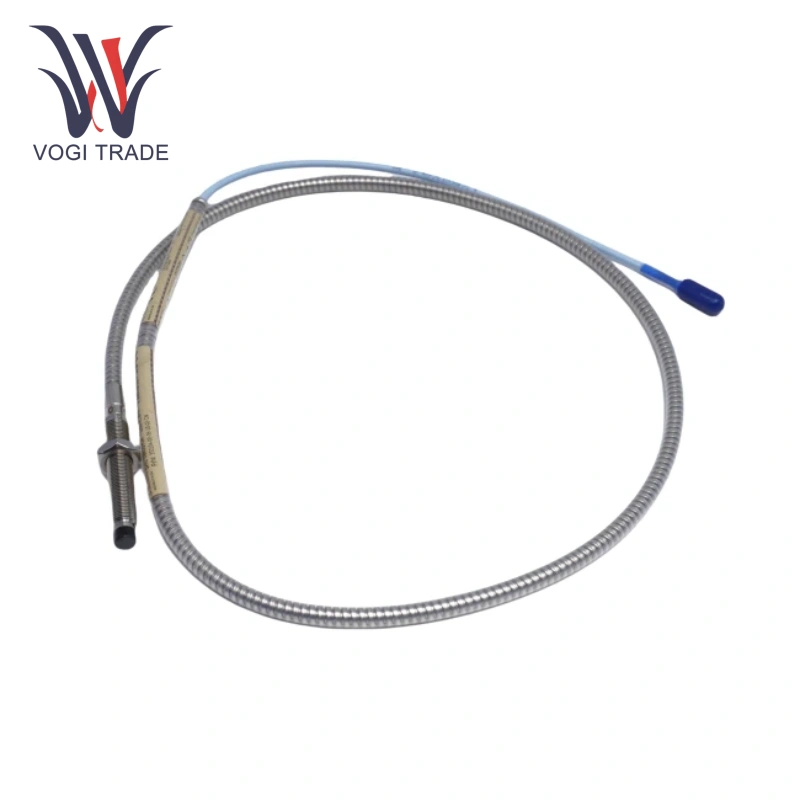

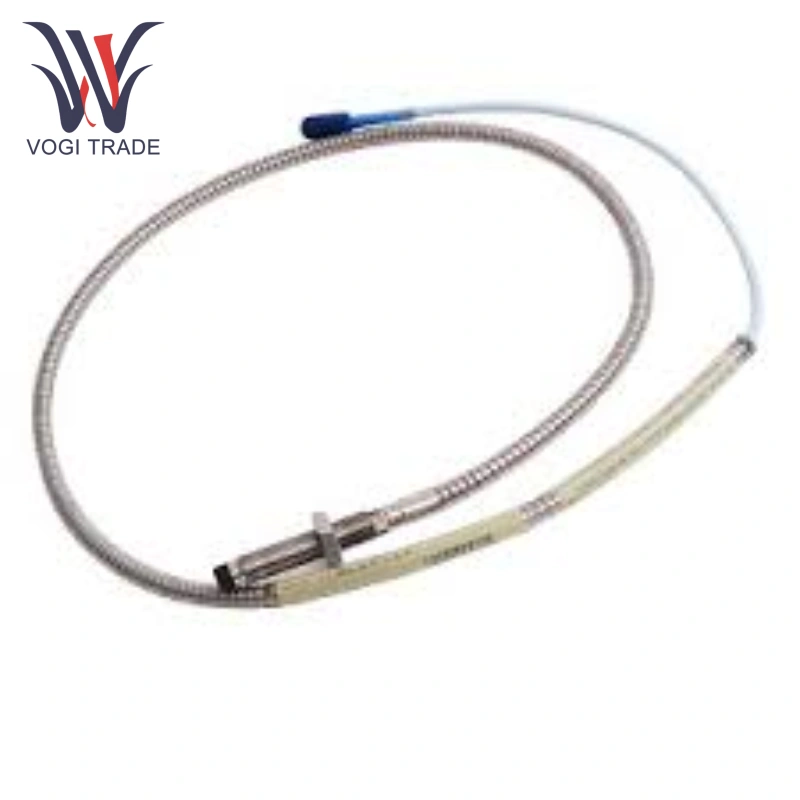

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330104-06-12-10-02-00 is an 8mm proximity probe from the 3300 XL Series, designed for precise measurement of static displacement and dynamic vibration of equipment components. It features a micro coaxial Click Loc connector with a standard cable for a convenient and secure connection.
|
Manufacture |
Bently Nevada |
|
Model Number |
330104-06-12-10-02-00 |
|
Ordering Number |
330104-06-12-10-02-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
30*30*4CM |
|
Packing Dimension |
32*32*6CM |
|
Weight |
2 kg |
Product Overview
Model: 330104-06-12-10-02-00
Probe Type: 3300 XL 8mm Proximity Probe
Unthreaded Length: 6mm
Probe Housing Length: 12mm
Total System Length: 1.0m (3.3ft)
Connector and Cable Type: Micro coaxial Click Loc connector, standard cable
Linear Range: 2mm (80mils)
Sensitivity: 7.87V/mm (200mV/mil), average sensitivity error ≤±5%
Frequency Response: 0-10kHz, with less than 1% attenuation from 0-1kHz and less than 5% attenuation at 10kHz
Operating Temperature: -51°C to +177°C
Operating Media: Operates in a variety of media, including air, oil, and water
Maximum Probe Operating Pressure: 12MPa
Minimum Target Size: 50mm diameter (applicable to 8mm probes)
Product Features
Precise Measurement: Bently Nevada 330104-06-12-10-02-00 with high linearity and sensitivity enable precise measurement of minute displacements and vibrations of equipment components, providing reliable data for evaluating equipment operating conditions.
Environmentally Resilience: Bently Nevada 330104-06-12-10-02-00 use the probe tip is made of wear-resistant and chemically resistant PPS, while the stainless steel housing is impact- and corrosion-resistant, ensuring stable operation in harsh industrial environments.
Reliable Connection: Bently Nevada 330104-06-12-10-02-00 use the micro coaxial Click Loc connector provides a secure connection, effectively reducing problems such as looseness and poor contact during signal transmission.
Applications
Power Industry: Bently Nevada 330104-06-12-10-02-00 is used in equipment such as steam turbines and generators, it monitors radial vibration and axial displacement of shafts to ensure stable operation of power equipment.
Petrochemical Industry: Bently Nevada 330104-06-12-10-02-00 is suitable for equipment such as compressors and pumps, it monitors vibration in real time to promptly identify potential equipment failures.
Note
Compatibility: This product is intended for connection only to monitoring systems and associated equipment related to the 3300 XL Series. Do not connect it to incompatible equipment to avoid damage to the probe or system failure. Before connecting a new monitoring system, confirm system and probe compatibility.
