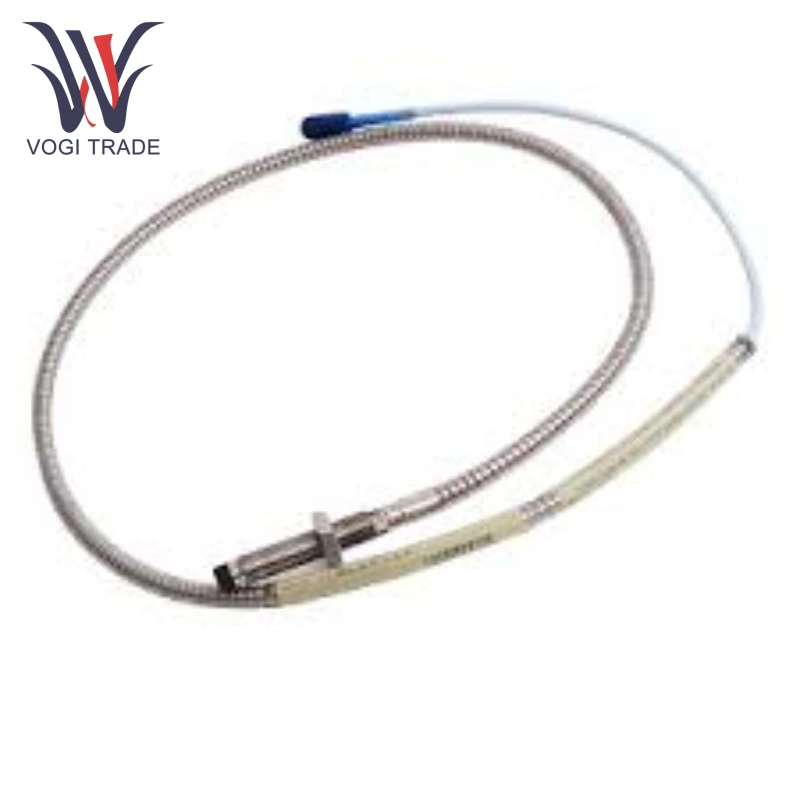

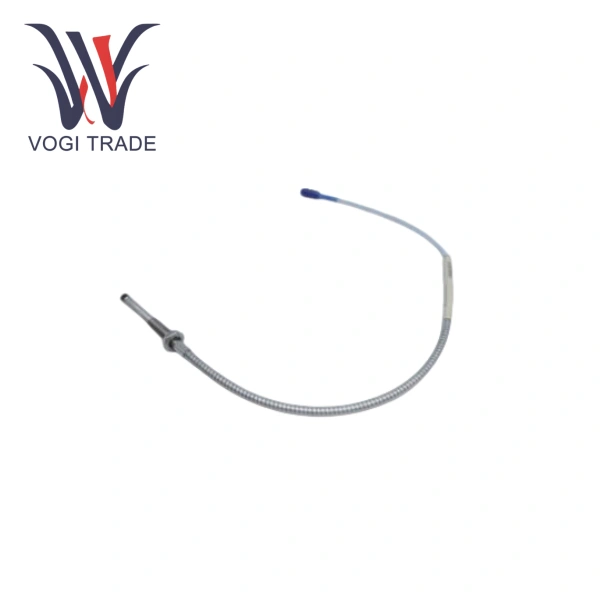

Bently Nevada 330104-08-16-10-02-00

Product Overview

Model: 330104-08-16-10-02-00

Product Type: 3300 XL 8mm Proximity Probe

Measurement Principle: Eddy Current Effect

Linear Range: 4.0mm (160mils) from 0.5mm (20mils) from the target (corresponding to -1 to -17VDC output)

Sensitivity: -200mV/mil (-7.87V/mm), error ≤±5%

Frequency Response: 0-10kHz (0-1kHz attenuation <1%, 10kHz attenuation <5%)

Probe Dimensions: 8mm unthreaded length, 160mm total housing length

Total System Length: 1.0m (3.3ft, including cable)

Operating Temperature: Probe -34°C to +177°C; Cable -51°C to +177°C; Proximitor Sensor -35°C to +85°C

Material: Probe housing AISI 303 or 304 stainless steel, probe tip polyphenylene sulfide (PPS)

Cable Specifications: 75Ω triaxial, fluorinated ethylene propylene (FEP) insulation

Connector Type: Micro coaxial Click Loc™ connector

Protection: Pressure-resistant probe, seal material: Viton O-ring

Product Features

Precise Measurement: Bently Nevada 330104-08-16-10-02-00 with high linearity and sensitivity enable precise measurement of minute displacements and vibrations of equipment components, providing reliable data for evaluating equipment operating conditions.

Environmentally Resilience: Bently Nevada 330104-08-16-10-02-00 use the probe tip is made of wear-resistant and chemically resistant PPS, while the stainless steel housing is impact- and corrosion-resistant, ensuring stable operation in harsh industrial environments.

Reliable Connection: Bently Nevada 330104-08-16-10-02-00 use the micro coaxial Click Loc connector provides a secure connection, effectively reducing problems such as looseness and poor contact during signal transmission.

Applications

Power Industry: Bently Nevada 330104-08-16-10-02-00 is used in equipment such as steam turbines and generators, it monitors radial vibration and axial displacement of shafts to ensure stable operation of power equipment.

Petrochemical Industry: Bently Nevada 330104-08-16-10-02-00 is suitable for equipment such as compressors and pumps, it monitors vibration in real time to promptly identify potential equipment failures.

Note

Proper Installation: Ensure the probe is perpendicular to the target surface (deviation ≤ 5°). Maintain proper installation torque to avoid overtightening and damaging the threads. Ensure the cable bend radius is at least 6 times the cable's outer diameter to prevent internal conductor breakage.

Target Surface Requirements: The target surface must be a conductive metal (such as steel or cast iron), with a minimum diameter of 50mm or greater (for an 8mm probe) and a surface roughness of Ra ≤ 1.6μm. Failure to do so will affect measurement accuracy.
