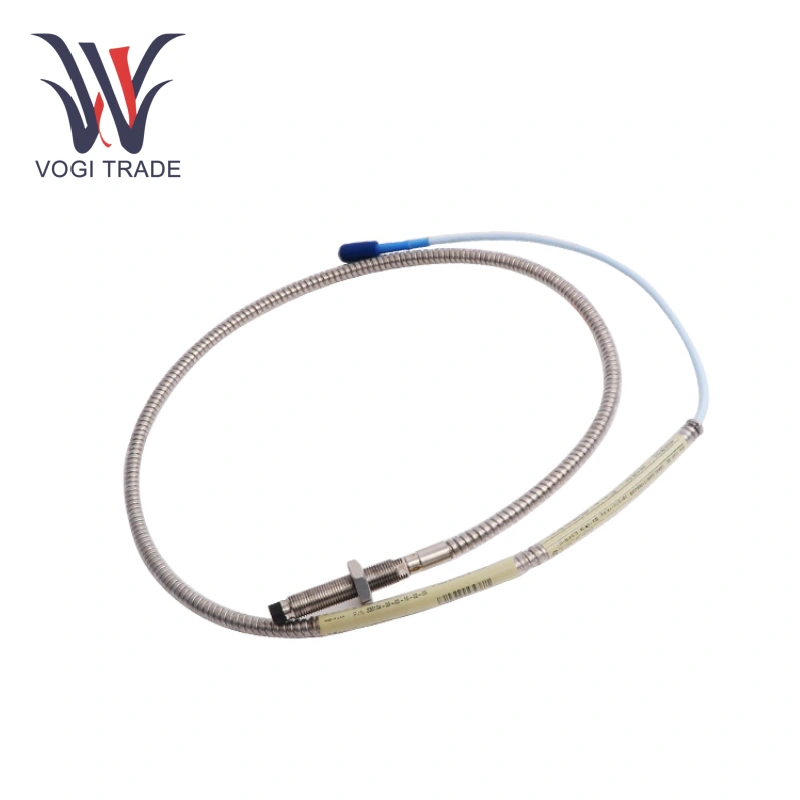

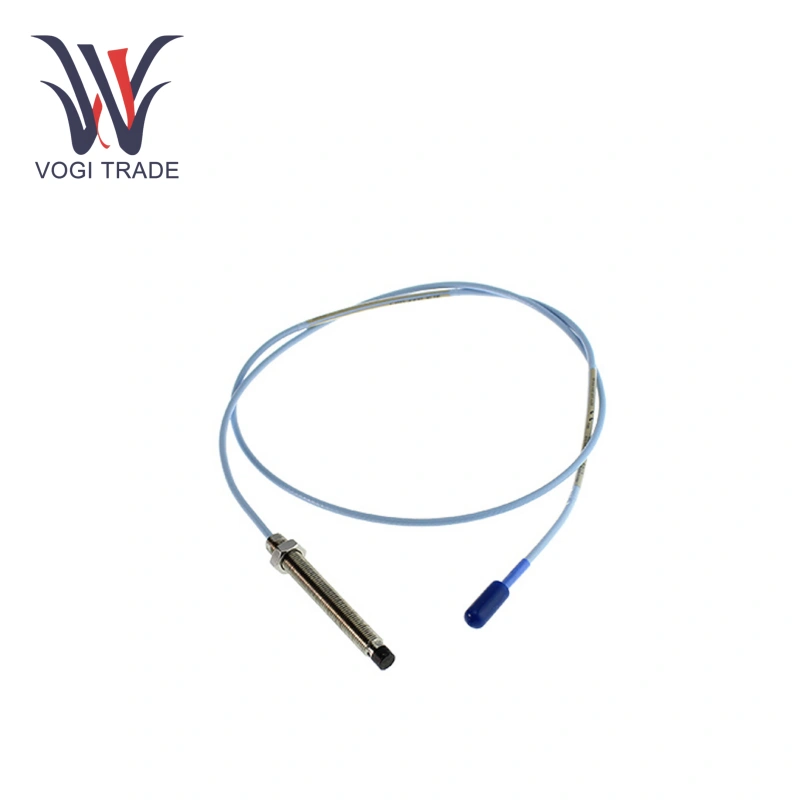

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330104-10-19-10-02-00 is a 3300 XL Series 8mm proximity eddy-current probe designed for monitoring critical parameters of rotating machinery. Based on the eddy current effect, it accurately measures changes in the distance between the probe tip and the target surface without contacting the conductive surface.
|
Manufacture |
Bently Nevada |
|
Model Number |
330104-10-19-10-02-00 |
|
Ordering Number |
330104-10-19-10-02-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
30*30*4CM |
|
Packing Dimension |
32*32*6CM |
|
Weight |
2 kg |
Product Overview
Electrical Characteristics:
Linear Range: 2 mm (80 mils)
Incremental Scale Factor (ISF): For a 1.0 m system, ISF = 7.87 V/mm ± 5%.
Output Resistance: 50 Ω.
Frequency Response: 0-10 kHz, +0, -3 dB, supports field wiring up to 305 m.
Minimum Target Size: 15.2 mm diameter.
Recommended Shaft Diameter: Minimum 50.8 mm, recommended 76.2 mm.
Mechanical Characteristics:
Probe Material:
Probe Tip: Polyphenylene Sulfide (PPS) plastic for abrasion and chemical resistance.
Probe Body: AISI 303 or 304 stainless steel (SST) for enhanced mechanical strength.
Armor: AISI 302 or 304 stainless steel with an FEP jacket for added protection. Cable Specifications:
Standard cable: 75Ω triaxial, FEP insulation.
Tensile strength: Maximum 330 N (75 lbf) from probe housing to leads, 270 N (60 lbf) at connector.
Bend radius: Minimum 25.4 mm (1.0 in) to avoid damage from excessive bending.
Connector: Gold-plated brass or gold-plated beryllium copper ClickLoc connector, corrosion-resistant and finger-tight.
Product Features
Precise Measurement: Bently Nevada 330104-10-19-10-02-00 with high linearity and sensitivity enable precise measurement of minute displacements and vibrations of equipment components, providing reliable data for evaluating equipment operating conditions.
Environmentally Resilience: Bently Nevada 330104-10-19-10-02-00 use the probe tip is made of wear-resistant and chemically resistant PPS, while the stainless steel housing is impact- and corrosion-resistant, ensuring stable operation in harsh industrial environments.
Reliable Connection: Bently Nevada 330104-10-19-10-02-00 use the micro coaxial Click Loc connector provides a secure connection, effectively reducing problems such as looseness and poor contact during signal transmission.
Applications
Power Industry: Bently Nevada 330104-10-19-10-02-00 is used in equipment such as steam turbines and generators, it monitors radial vibration and axial displacement of shafts to ensure stable operation of power equipment.
Petrochemical Industry: Bently Nevada 330104-10-19-10-02-00 is suitable for equipment such as compressors and pumps, it monitors vibration in real time to promptly identify potential equipment failures.
Note
Installation and Maintenance:
Connectors: Use ClickLoc connectors, finger-tighten (torque not to exceed 0.565 N·m). The DD=02 option does not include a connector protector; adding a protector is recommended for harsh environments.
Cable Management: Minimum bend radius 25.4 mm; avoid sharp bends. For field wiring, use a three-conductor shielded three-core cable (0.2-1.5 mm²), with a maximum length of 305 m.
Gap Setting: The recommended radial vibration gap is -9 Vdc (approximately 1.27 mm) to ensure it is within the linear range.
