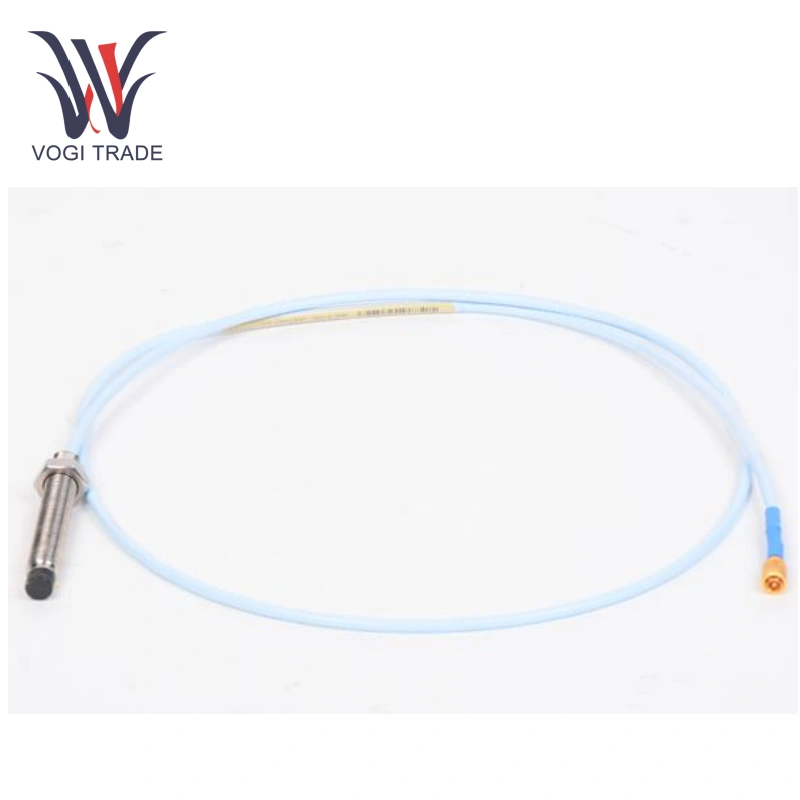

Brand: Bently Nevada Description: Proximity Probes Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330104-12-20-10-01-00 is an 8mm armored proximity eddy-current probe from the 3300 XL Series, designed for monitoring critical parameters of rotating machinery. Based on the eddy current effect, it non-contactly captures changes in the distance between the probe tip and a conductive target surface, outputting a voltage signal proportional to the distance.
|
Manufacture |
Bently Nevada |
|
Model Number |
330104-12-20-10-01-00 |
|
Ordering Number |
330104-12-20-10-01-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
30*30*4CM |
|
Packing Dimension |
32*32*6CM |
|
Weight |
2 kg |
Product Overview
Model: 330104-12-20-10-01-00
Product Type: 3300 XL 8mm Armored Eddy Current Proximity Probe
Measurement Principle: Eddy Current Effect
Linear Range: 4mm (Effective Measuring Range 0.25-2.3mm)
Sensitivity: 3.94V/mm (100mV/mil), Error ≤±5%
Frequency Response: 0-10kHz (Attenuation <1% within 1kHz)
Mechanical Specifications: Unthreaded Length 12mm, Housing Length 200mm, M10×1 Thread
Cable Configuration: Armored, Total System Length 1.0m, 75Ω Triaxial Cable
Connector Type: Micro-Coaxial ClickLoc™ Connector
Temperature Range: Probe -51°C to +177°C, Armored Cable High-Temperature Aging Resistance
Compatibility: Meets API 670 4th Edition
Compatibility: Compatible with 3300 Series Proximitor Sensors and Non-XL Series 5mm/8mm Components
Product Features
Precise Measurement: Bently Nevada 330104-12-20-10-01-00 with high linearity and sensitivity enable precise measurement of minute displacements and vibrations of equipment components, providing reliable data for evaluating equipment operating conditions.
Environmentally Resilience: Bently Nevada 330104-12-20-10-01-00 use the probe tip is made of wear-resistant and chemically resistant PPS, while the stainless steel housing is impact- and corrosion-resistant, ensuring stable operation in harsh industrial environments.
Reliable Connection: Bently Nevada 330104-12-20-10-01-00 use the micro coaxial Click Loc connector provides a secure connection, effectively reducing problems such as looseness and poor contact during signal transmission.
Applications
Power Industry: Bently Nevada 330104-12-20-10-01-00 is used in equipment such as steam turbines and generators, it monitors radial vibration and axial displacement of shafts to ensure stable operation of power equipment.
Petrochemical Industry: Bently Nevada 330104-12-20-10-01-00 is suitable for equipment such as compressors and pumps, it monitors vibration in real time to promptly identify potential equipment failures.
Compatibility and Interchangeability
Backward Compatibility: The 330104 probe is compatible with all non-XL 3300 Series 5 mm and 8 mm components, including:
Probes: Interchangeable with 3300 5 mm probes (when the 8 mm probe is too large).
Extension Cables: Such as the 330130 Standard Cable or the 330190 ETR Cable.
Proximitor Sensors: Such as the 330180 Series, which supports panel or DIN mounting.
Performance Impact:
When mixing XL and non-XL components, system performance is limited to non-XL specifications (e.g., ISF error may increase).
When using ETR components (such as high-temperature probes), system accuracy is limited to ETR specifications (ISF ±18%).
Connector Compatibility: ClickLoc connectors are compatible with all 3300 Series sensors and enable finger-tight installation without tools.
