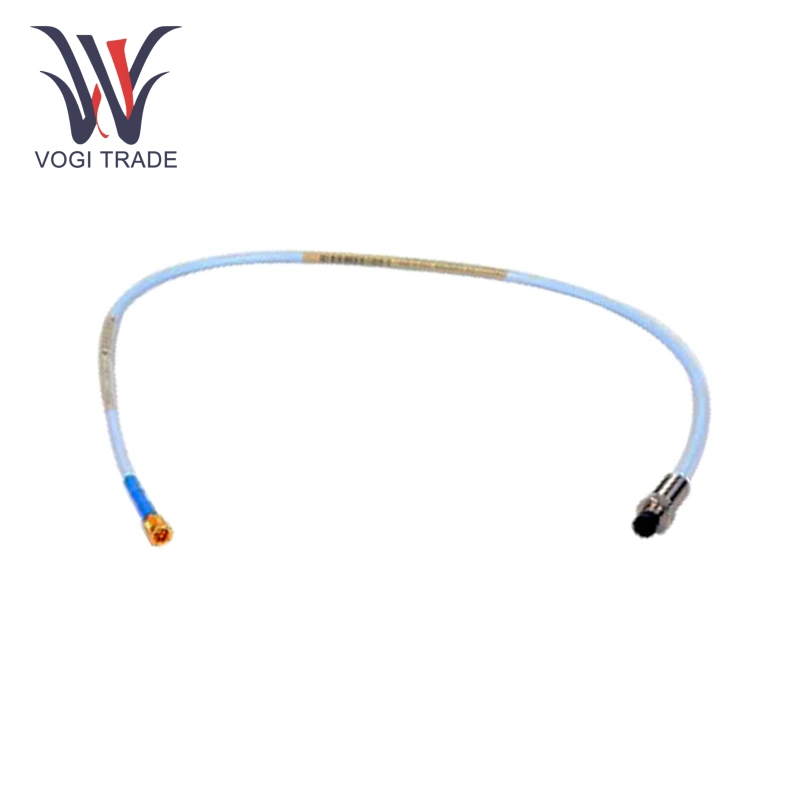

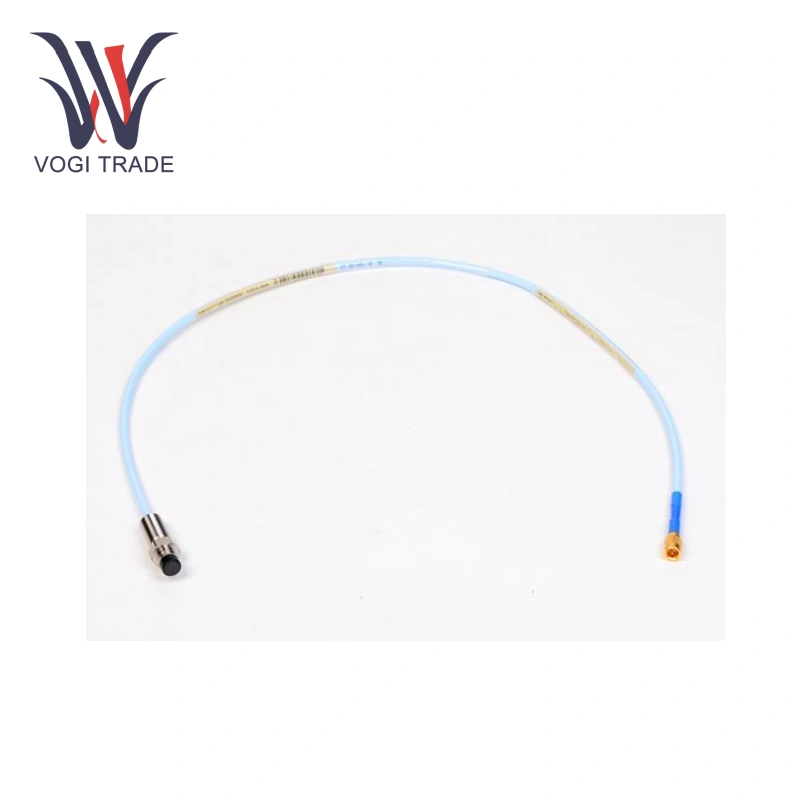

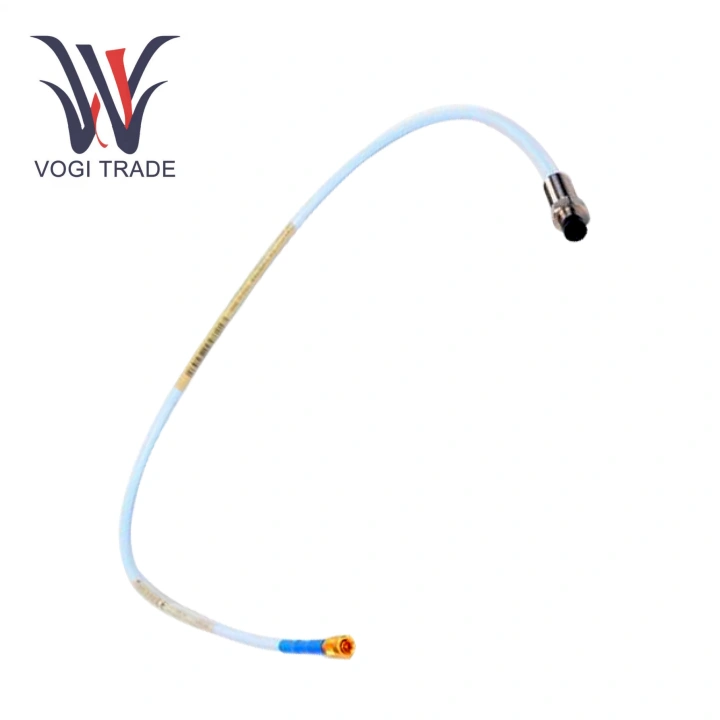

Brand: Bently Nevada Description: Reverse Mount Probe Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen The Bently Nevada 330105-02-12-05-02-00 is a 3300 XL series 8mm reverse mount probe. It operates based on the eddy current principle and is the core component of the proximity sensor system. It can be used with the 3300 XL series proximitor and extension cable.
|
Manufacture |
Bently Nevada |
|
Model Number |
330105-02-12-05-02-00 |
|
Ordering Number |
330105-02-12-05-02-00 |
|
Catalog |
3300XL |
|
Country Of Origin |
America |
|
HS CODE |
9031900090 |
|
Dimension |
30*30*4CM |
|
Packing Dimension |
32*32*6CM |
|
Weight |
1.15 kg |
Product Overview
Physical and Mechanical Specifications
Dimensions and Weight:
Unthreaded length (A): 5.0 mm (0.20 in).
Casing length (B): 30 mm (1.2 in).
Total length (C): 0.5 meter (1.6 feet), tolerance +30%, -0%.
Probe weight: Approximately 323 g/m (11.4 oz), based on standard cable.
Maximum diameter: 8.0 mm (0.31 in) at probe tip, maximum connector outer diameter 7.24 mm (0.285 in).
Product Features
Accurate Measurement: Bently Nevada 330105-02-12-05-02-00 based on eddy current principles, it precisely measures static displacement and dynamic vibration, providing reliable data for equipment health assessment.
Easy Installation: Bently Nevada 330105-02-12-05-02-00 with the standard 3/8 - 24 UNF thread design, coupled with a micro Click Loc coaxial connector, allows for simple and efficient installation.
Reliable connection: Bently Nevada 330105-02-12-05-02-00 use micro coaxial Click Loc connector provides a secure connection, effectively reducing problems such as looseness and poor contact during signal transmission, ensuring stable signal transmission.
Applications
Power Industry: Bently Nevada 330105-02-12-05-02-00 used in equipment such as steam turbines and generators to monitor radial vibration and axial displacement of shafts, ensuring stable operation of power equipment.
Industrial Manufacturing: Bently Nevada 330105-02-12-05-02-00 can be installed on equipment such as motors and machine tools to monitor vibration, optimize operating parameters, and minimize the impact of equipment failures on production schedules.
Installation Guide
Reverse Mount Feature: The probe is designed for reverse mounting (threads on the tip side), making it suitable for space-constrained applications. The probe sleeve provides protection during installation.
Recommended Accessories:
Mounting Bracket: This includes the aluminum threaded mounting bracket (137492-01 for 3/8-24 threads) with a safety wire hole.
Cable Management: Use silicone self-adhesive tape (03200006) or a connector protector; however, the reverse mount version does not support the built-in protector.
Torque Application: Use a torque wrench and adhere to the recommended 7.5 N·m (66 in·lbf). Avoid exceeding the maximum of 22.6 N·m to prevent thread damage.
Gap Setting: The recommended gap for radial vibration is -9 Vdc (approximately 1.27 mm). Calibration to AISI 4140 steel is required (factory default).
