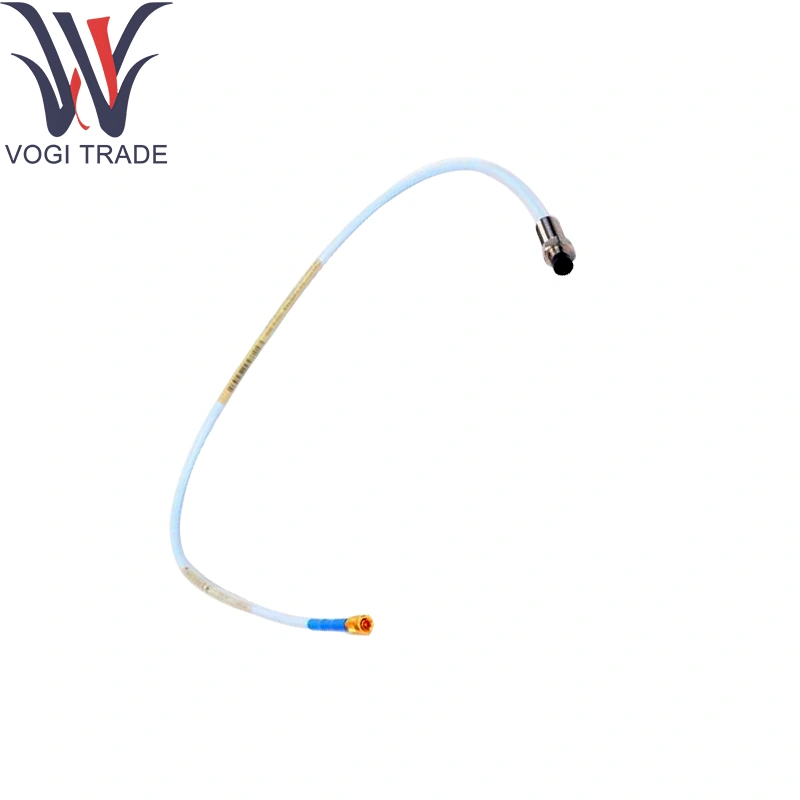

Brand: Bently Nevada Description: 330105-02-12-05-02-05 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen Bently Nevada 330105-02-12-05-02-05 Non-contact measurement of shaft clearance and vibration on high-speed rotating machinery—such as turbines, compressors, pumps, and motors—where a longer cable run (5 m) and moderate probe-nose length (12 mm) are required.
|
Manufacture |
Bently Nevada |
|
Model Number |
330105-02-12-05-02-05 |
|
Ordering Number |
330105-02-12-05-02-05 |
|
Catalog |
3300 XL 8MM |
|
Description |
Proximity Transducer |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
25*20*4 (CM) |
|
Weight |
0.1 kg |
Ordering Information
330105-02-12-CC-DD-EE3/8-24 UNF threads(2)
330106-05-30-CC-DD-EE M10 x 1 threads(2)
Option Descriptions
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
D: Connector and Cable-Type Option
02 Miniature ClickLoc coaxial connector
12 Miniature ClickLoc coaxial connector , FluidLoc cable
E: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
Technical Parameters
Linear Range: 2 mm (80 mils) full-scale for Bently Nevada 330105-02-12-05-02-05
Sensitivity: 200 mV/mil (7.87 mV/µm) ± 5 % at –23 V DC excitation
Output Span: –2 V to –18 V over linear range
Linearity: ± 1 % of full-scale
Frequency Response: DC to 10 kHz (–3 dB)
Operating Temperature:
Probe: –35 °C to +125 °C
Cable: –20 °C to +80 °C
Environmental Protection: IP65 when mated; stainless-steel body in Bently Nevada 330105-02-12-05-02-05
Pressure Rating: For pressurized applications, use with appropriate bulkhead or thermowell
Product function
Bently Nevada 330105-02-12-05-02-05 converts variations in the air-gap between the probe tip and rotating shaft into a proportional AC voltage signal. The shielded cable preserves signal fidelity over long runs, delivering the conditioned output to a Proximitor® module for linearization, digitization, and real-time clearance/vibration analysis.
Application Areas
Steam & Gas Turbines: Bearing clearance and rub detection using Bently Nevada 330105-02-12-05-02-05 in expansive control-room layouts
Centrifugal Compressors & Pumps: Remote shaft-position feedback for surge and stability control
Industrial Motors & Generators: End-winding vibration and axial clearance surveillance
OEM Skid-Mounted Panels: Factory-installed long-cable assemblies with Bently Nevada 330105-02-12-05-02-05
Test & Calibration Rigs: Bench testing with extended reach between probe and instrumentation
