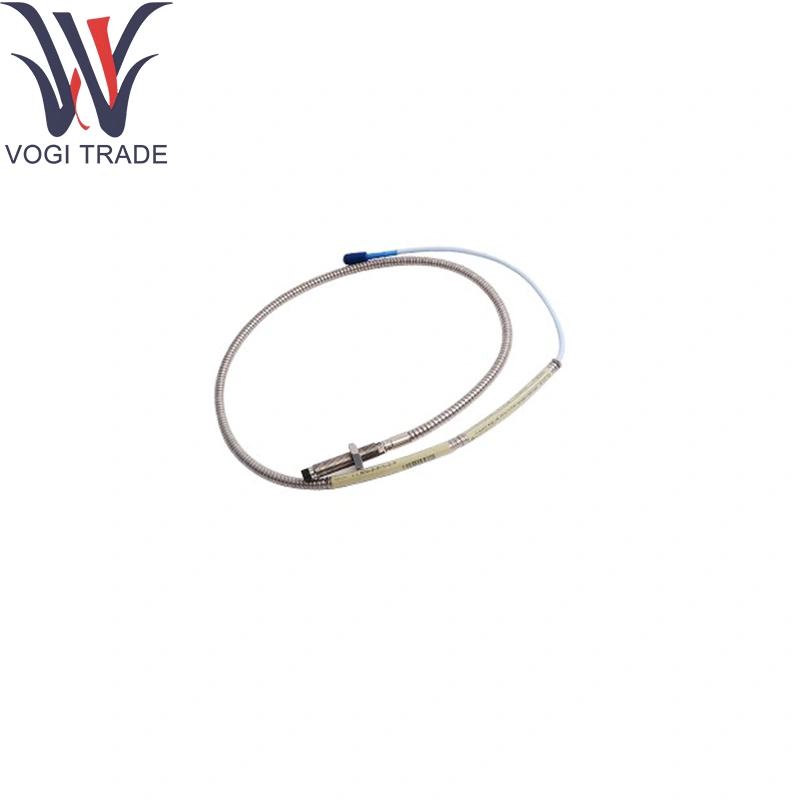

Bently Nevada 330130-040-00-00

Ordering Information

330130-AAA-BB-CC

A: Cable Length Option

030   3.0 meters (9.8 feet)

035   3.5 meters (13.1 feet)

040   4.0 meters (11.5 feet)

045   4.5 meters (14.8 feet)

060   6.0 meters (19.7 feet)

070  7.0 meters (22.9 feet)

075   7.5 meters (24.6 feet)

080   8.0 meters (26.2 feet)

085   8.5 meters (27.9 feet)

B: Connector Protector and Cable Option

00   Standard cable

01   Armored cable

02  Standard cable with connector protector

03   Armored cable with connector protector

10   FluidLoc cable

11   Armored FluidLoc cable

12   FluidLoc cable with connector protector

13   Armored FluidLoc cable with connector protector

C: Agency Approval Option

00   Not required

05   CSA, ATEX, IECEx  Approvals

Technical Parameters

Characteristic Impedance: 50 Ω ± 5 % for Bently Nevada 330130-040-00-00

Capacitance: ≤ 100 pF/m between conductors

Conductor: 26 AWG, 7 × 36 tinned-copper strands per core in Bently Nevada 330130-040-00-00

Voltage Rating: 300 VAC (insulation)

Temperature Rating: –20 °C to +80 °C

Environmental Compliance: RoHS-compliant; UL-recognized cable

Product function

Maintains the integrity of proximity-probe AC signals using Bently Nevada 330130-040-00-00 by providing low-loss, shielded extension between probe and conditioning module. The matched impedance minimizes noise and reflection, ensuring accurate measurement of shaft displacement.

Application Areas

Control Panel Interiors: Short harnesses inside turbine/compressor cabinets with Bently Nevada 330130-040-00-00.

OEM Skid Assemblies: Factory-installed probe-to-panel cables in compact equipment using Bently Nevada 330130-040-00-00.

Retrofit Installations: Extending probes to relocated racks without long runs.

Test & Calibration Benches: Quick-disconnect link for bench testing.

Junction Boxes: Neat wiring inside enclosures via Bently Nevada 330130-040-00-00 where probes feed local modules.
